Brand New Sany Sy245H Excavator
● Operating Weight(KG/T): 25.5 T
● Bucket Capacity: 1.3 m³
● Engine Power: 147 kW
● Engine Model: D06FRC
- Sany
- China
- 15-20 days
- 10000 Unit/Month
- Information

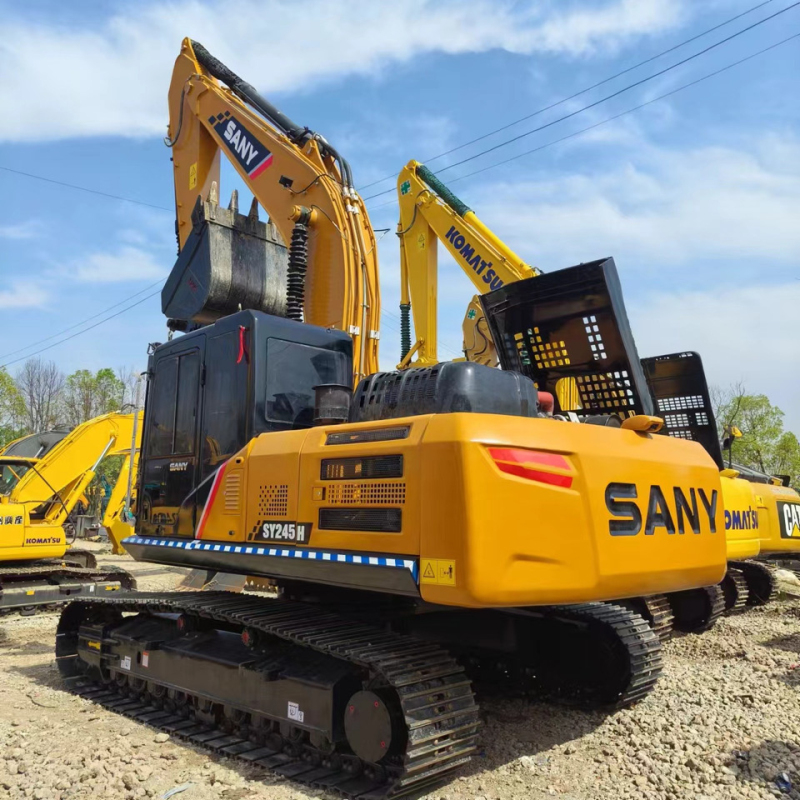

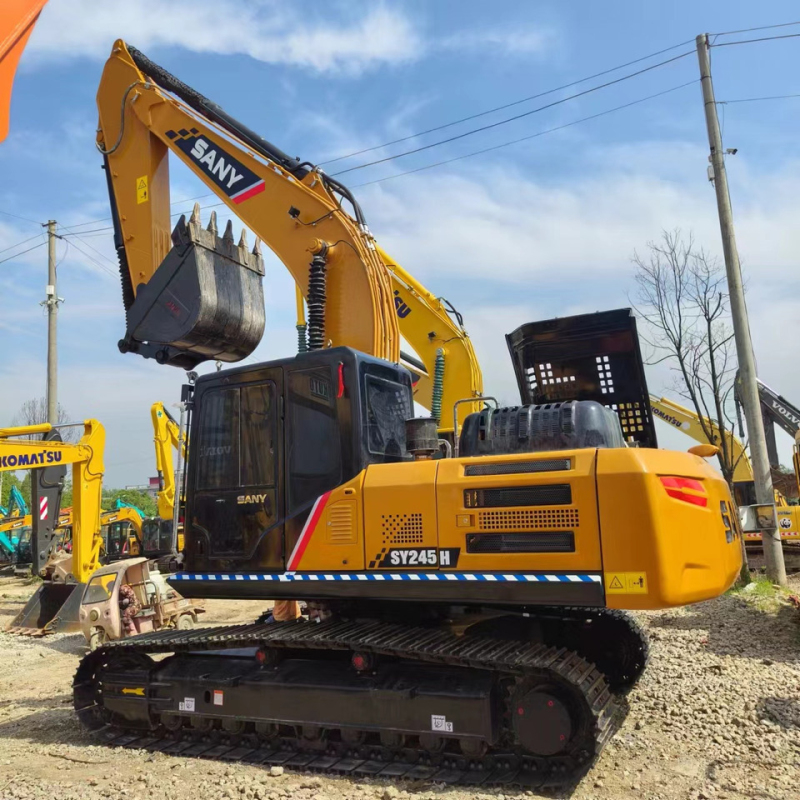

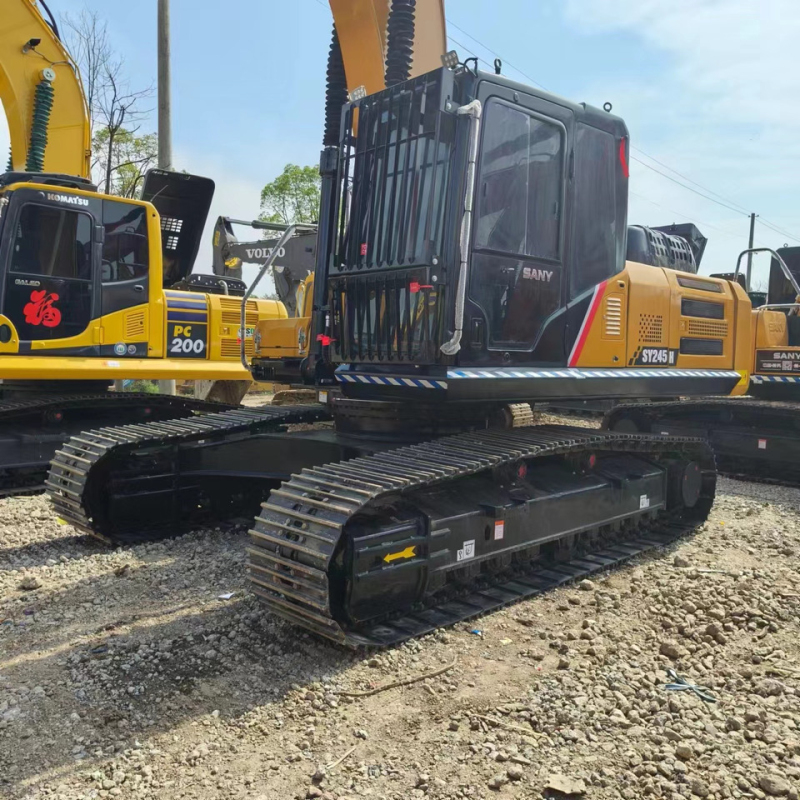

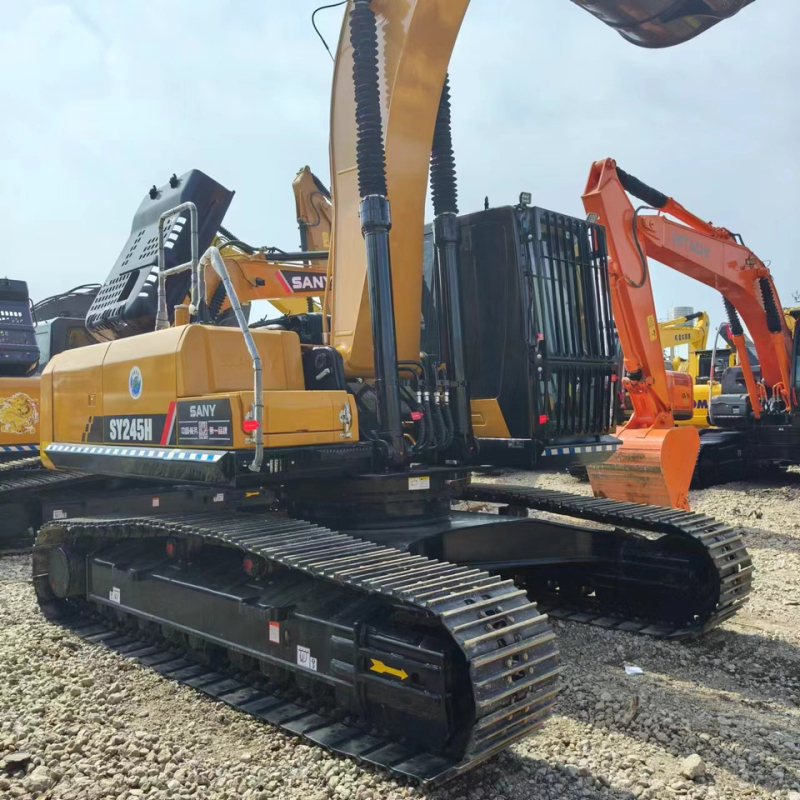

Brand New Sany SY245H Excavator – Strong, Precise, and Durable
The Brand New Sany SY245H Excavator is a heavy-duty machine, strong and reliable, designed to meet extreme excavation and construction tasks. Being part of the advanced series of hydraulic excavators from Sany, this model combines great digging capacity, high fuel efficiency, and intelligent control technology. The Sany SY245H Excavator boasts a solid structure and strong components for continuous work, making it an excellent choice for big earthmoving and infrastructure projects.
Advanced Design from a Trusted Chinese Brand
Sany is one of China's most recognized heavy machinery brands, based on quality, innovation, and reliability. The Brand New Sany SY245H Excavator continues this history by offering outstanding balance between performance and economy. The excavator fitted with a high-torque engine, precision hydraulic systems, and an ergonomic operator cabin guarantees maximum productivity even at the most difficult working conditions. Its robust frame and heavy-duty undercarriage enable it to handle long hours of continuous operation with less maintenance downtime.
Technical Specifications of Sany SY245H Excavator
| Overall length | 10,290 mm |
| Overall width | 3,190 (2,990) mm |
| Overall superstructure width | 2990 mm |
| Overall height of boom | 3,255 mm |
| Rear length | 3,105 mm |
| Track width | 2,590 mm |
| Undercarriage length | 4636 mm |
| Undercarriage width | 3,190 mm |
| Track shoe | 600 mm |
| Minimum ground clearance | 470 mm |
| Tail swing radius | 3,105 mm |
| Distance (centre) between crawler wheel and guide wheel | 3640 mm |
| Boom length | 5,900 mm |
| Bucket arm length | 2,950 mm |
| Bucket capacity | 1.3 m³ |
| WEIGHT | |
| Total weight | 25,500 kg |
| WORKING RANGE | |
| Max. horizontal reach on the ground | 10,225 mm |
| Max. excavation depth | 6,705 mm |
| Max. vertical reach | 9,745 mm |
| Max. dumping height | 6,715 mm |
| Min. slewing radius | 3,800 mm |
| Max. excavation depth, vertical wall | 5,675 mm |
| ENGINE | |
| Model | D06FRC |
| Rated power | 147 kW |
| Max. torque | 750 Nm /1,350 rpm |
| Displacement | 6.373 l |
| HYDRAULIC SYSTEM | |
| Main pumps | Adjustable axial piston pump |
| Maximum oil flow | 2 x 246 l/min |
| Travel drive | Adjustable axial piston pumps |
| Slewing gear | Adjustable axial piston pumps |
| PRESSURE LIMITING VALVE SETTINGS | |
| Boom circuit | 343 bar |
| Slewing circuit | 290 bar |
| Drive circuit | 343 bar |
| Pilot control circuit | 39 bar |
| Powerboost | 373 bar |
| OUTPUT | |
| Slewing speed | 10.6 rpm |
| Max. ground speeds | fast 5.5 km/h slow 3.74km/h |
| Ground pressure | 52.5 kPa |
| Climbing ability | 70%/35° |
| ISO bucket breakaway force | 175 kN |
| ISO arm tear-out force | 120 kN |
| SERVICE REFILL CAPACITIES | |
| Fuel tank | 475 l |
| Engine coolant | 30.9 l |
| Engine oil | 29 l |
| Travel drive (per side) | 4,0 l |
| Hydraulic oil tank | 277 l |
Core Advantages of the Brand New Sany SY245H Excavator
1. Exceptional Power and Fuel Efficiency
The Sany SY245H Excavator is fitted with a highly efficient Cummins or Isuzu engine for great torque with low fuel consumption. Its advanced hydraulic system contributes to rapid cycle times, smooth movement, and continuous digging performance for heavy tasks.
2. Powerful Structure Components
Every component is engineered for endurance in the Brand New Sany SY245H Excavator. It features steel plates with reinforcement at both the boom and arm, thus enhancing wear resistance and prolonging the service life. This durability guarantees dependable operation across different terrains and under changing conditions.
3. Intelligent Hydraulic System
The advanced hydraulic control system improves the operational precision with energy-saving features. It provides automatic adjustment of flow distribution according to load requirement, ensuring the best efficiency and quick response during excavation or loading operations.
4. Simplified Maintenance
Simplified Maintenance The brand-new Sany SY245H Excavator has accessible service points and an intelligent monitoring system, making maintenance fast and convenient. Real-time diagnostics display crucial machine data that helps the operator track performance and prevent potential issues before they occur.
Why Choose the Sany SY245H Excavator?
Invest in the brand-new Sany SY245H Excavator for unparalleled productivity, superior fuel savings, and the best build quality. With its proven design, it guarantees stability during heavy digging and loading, with SANY technology ensuring seamless operation and dependability throughout. As such, this excavator will perform exceptionally and precisely, minimizing any downtime for construction companies that really need it to.
Applications of Sany SY245H Excavator
The Sany SY245H Excavator is suitable for large-scale earthmoving, road and bridge construction, mining, and material loading. Thanks to the powerful digging force and hydraulic responsiveness, it works efficiently across a variety of working environments and brings incomparable versatility and durability.
Built for Productivity and Longevity
With superior build quality, premium materials, and precision engineering, the Brand New Sany SY245H Excavator delivers consistent performance under heavy workloads. Every component-from its undercarriage to its hydraulic pump-is designed to meet the highest industrial standards, ensuring a long service life with minimal maintenance requirements.
