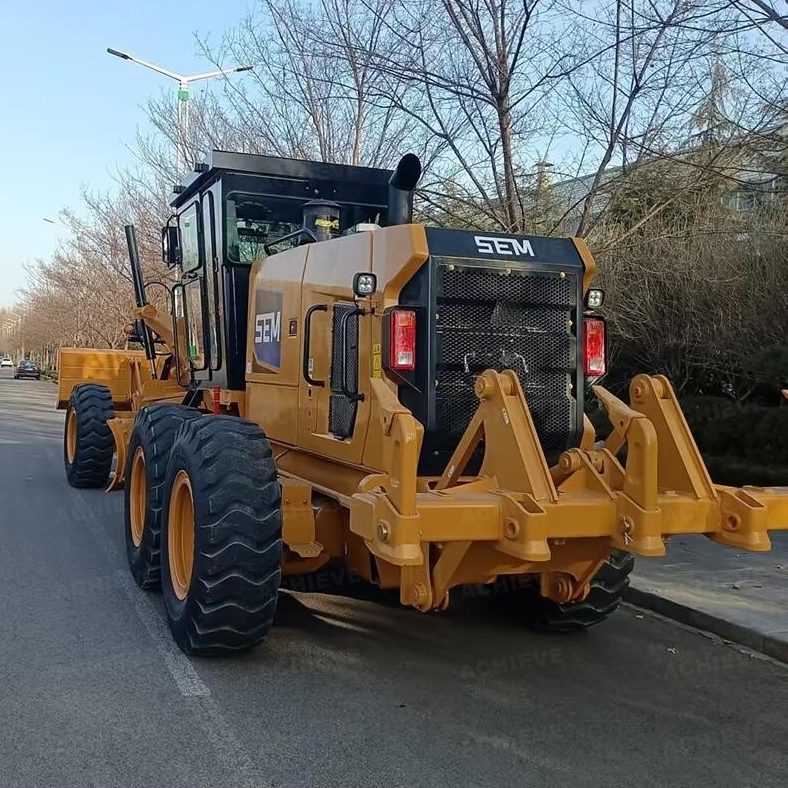

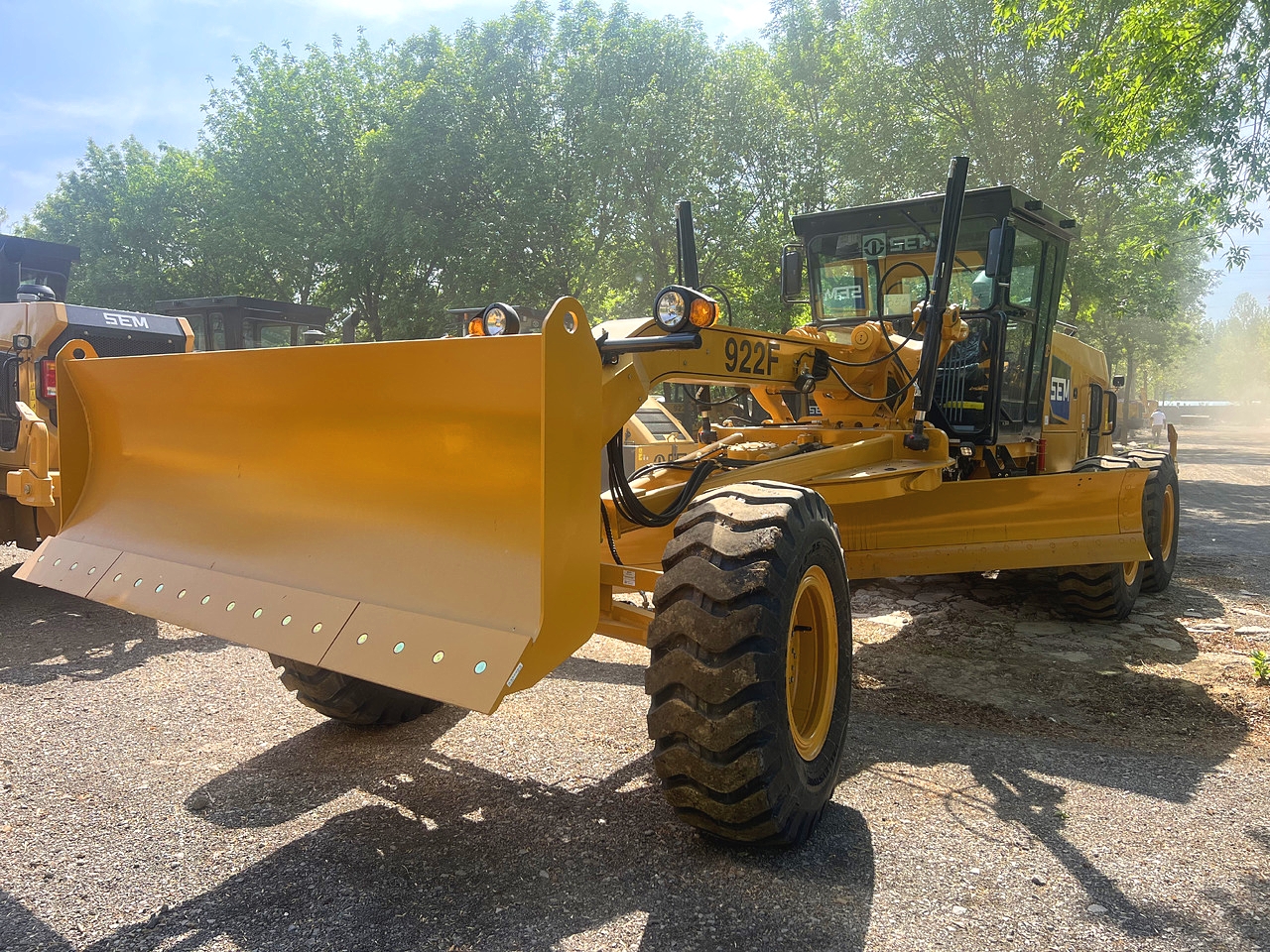

Brand New SEM 922F Motor Grader
The Brand New SEM 922F Motor Grader is a high-horsepower, heavy-duty earthmoving machine engineered under Caterpillar's supervision to deliver exceptional torque and traction for large-scale road construction and mining support tasks.
- SEM
- China
- 15-20 days
- 10000 Unit/Month
- Information

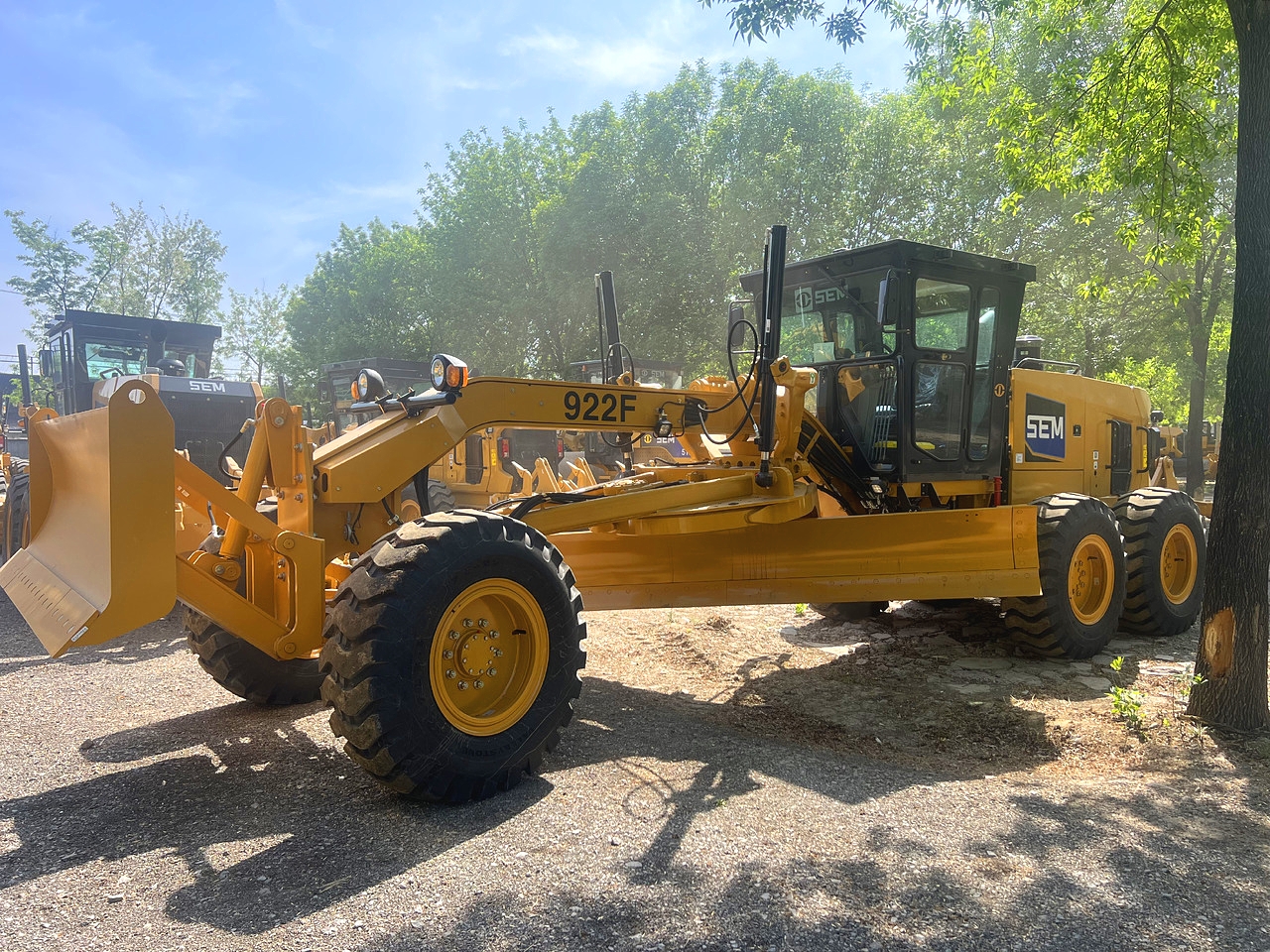

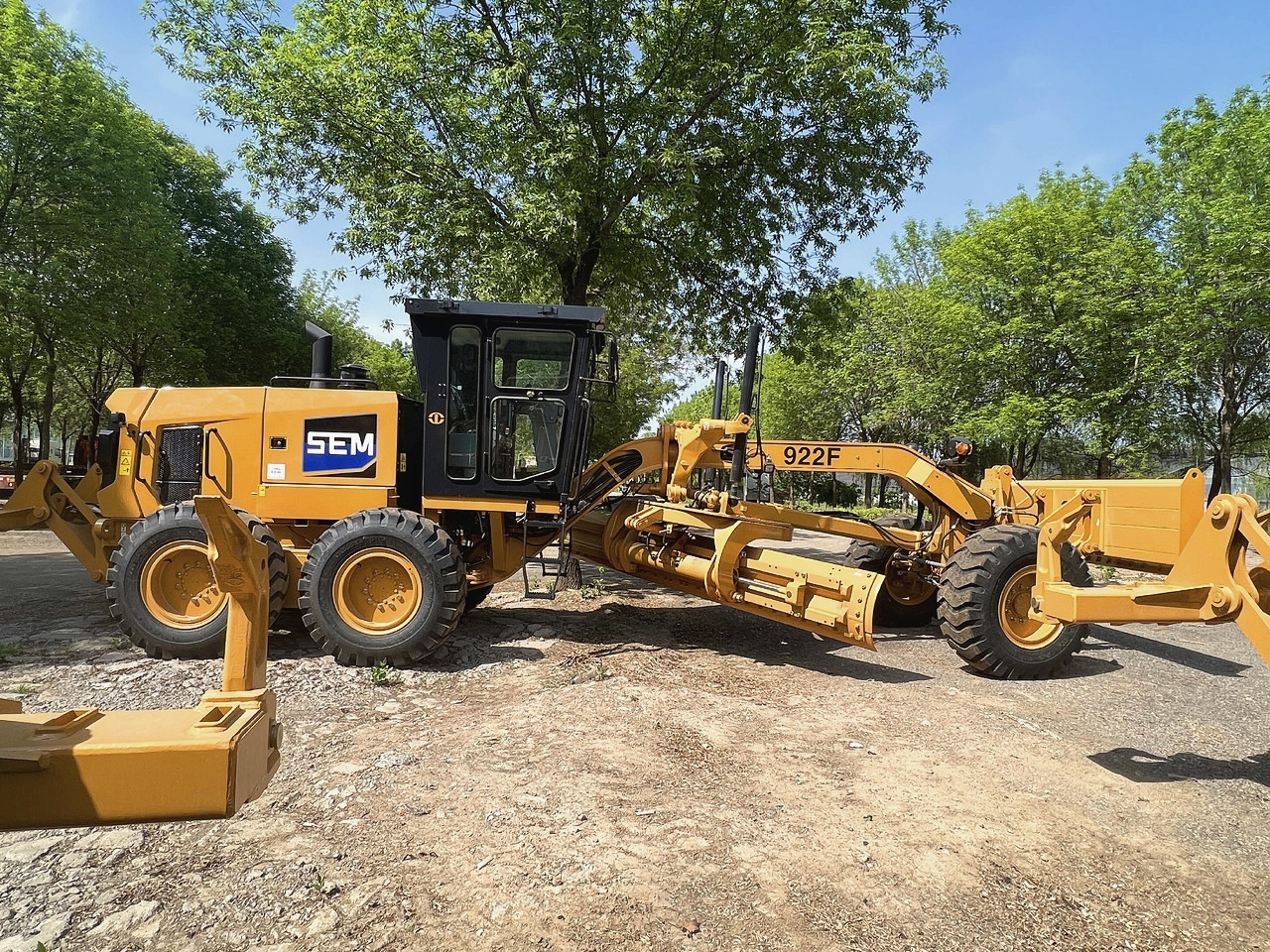

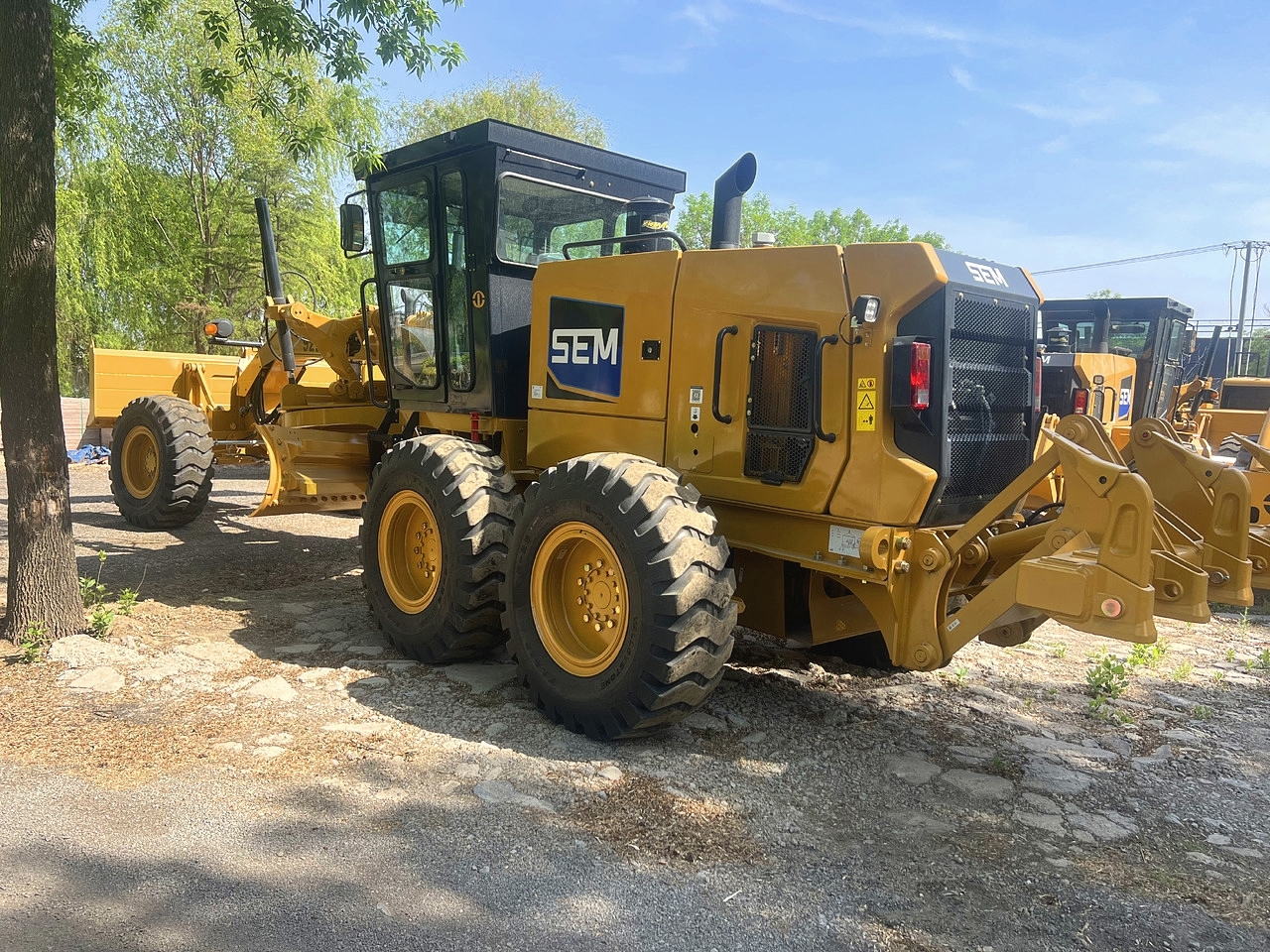

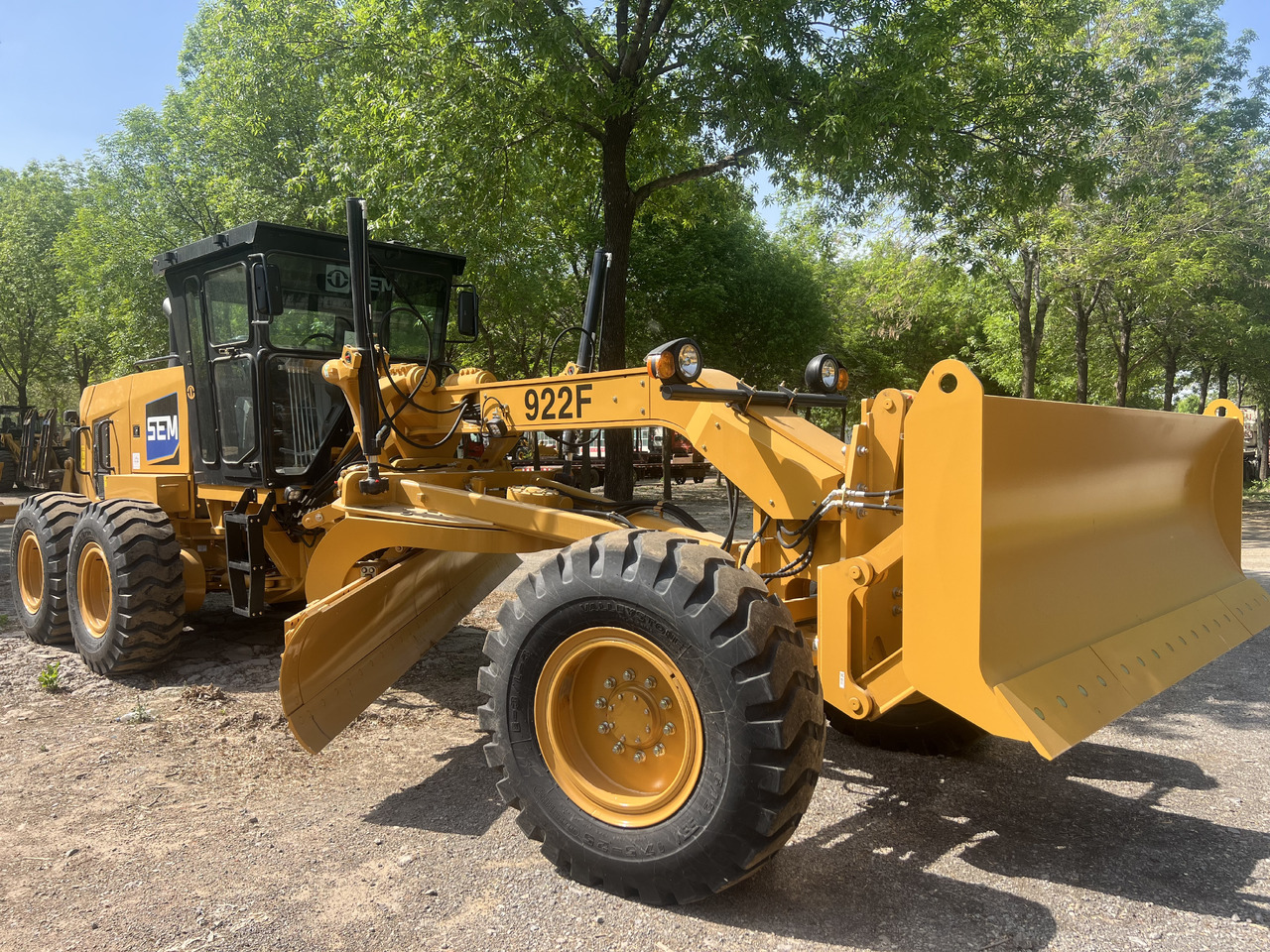

Brand New SEM 922F Motor Grader: 220HP Heavy Duty Performance
What is the Brand New SEM 922F Motor Grader?
The Brand New SEM 922F Motor Grader is a high-horsepower, heavy-duty earthmoving machine engineered under Caterpillar's supervision to deliver exceptional torque and traction for large-scale road construction and mining support tasks.
Why Choose the SEM 922F for Demanding Projects?
The defining characteristic of this model is its substantial power output. With a 162kW (approx. 220HP) SDEC engine, the 922F is built to move heavier loads than standard utility graders. This high torque capability allows the machine to maintain momentum even when cutting through compacted soil or managing heavy aggregate loads, ensuring consistent project progress.
Additionally, the SEM brand benefits directly from Caterpillar’s engineering legacy. The 922F utilizes a world-class hydraulic system featuring Load Sensing and Proportional Pressure Priority Control (PPPC). This technology ensures that power is distributed efficiently to the moldboard and drive system, preventing engine stalls during high-load applications and optimizing fuel consumption.
SEM Motor Grader Series Comparison
Selecting the correct horsepower class is vital for fleet efficiency. The SEM 922F sits at the top end of the standard construction range, offering more pushing power than the 920 series.
| Model | Rated Power | Standard Weight | Primary Application |
|---|---|---|---|

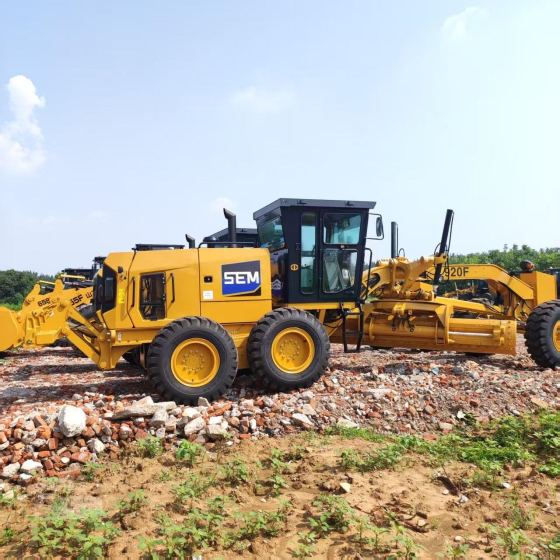

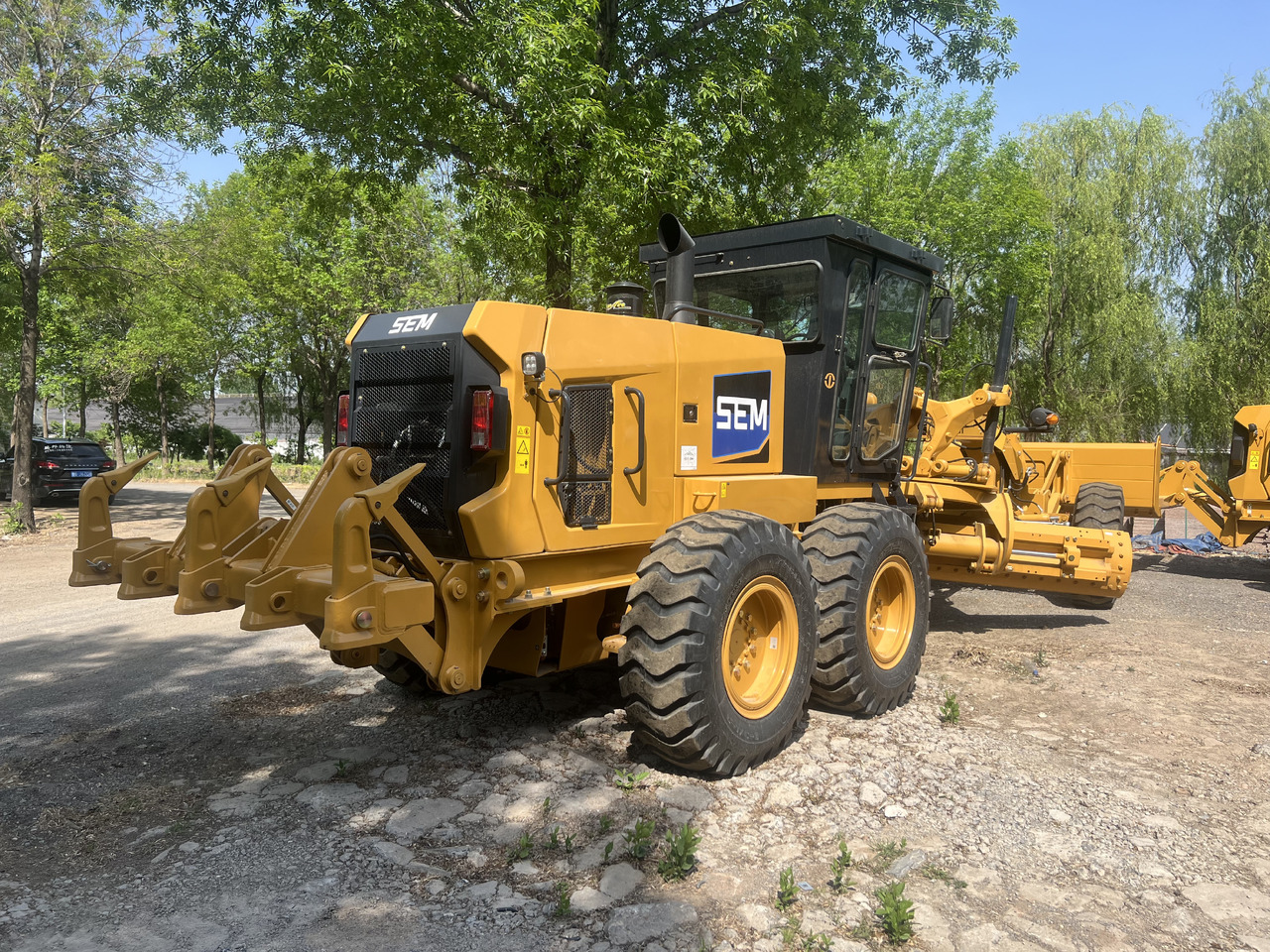

| SEM 920F | 147 kW | 16,029 kg | General Construction (Tier 4 Focus) |
| SEM 922F | 162 kW | 16,313 kg | Heavy Road Building & Mining Support |
Who Should Deploy the SEM 922F?
The robust specifications of the Brand New SEM 922F Motor Grader make it the preferred choice for:
Highway Construction Consortia: Capable of managing wide roadbeds and heavy base layers.
Mining and Quarrying Operations: Essential for maintaining haul roads to ensure truck tires remain undamaged.
Large-Scale Agricultural Development: Efficient for land leveling and creating drainage systems over vast acreages.
Airport Runway Projects: Provides the precision and power needed for exacting surface tolerances.
Detailed Technical Specifications
Review the specific data below to understand the capabilities of the Brand New SEM 922F Motor Grader.
| Main Specifications | Value |
|---|---|
| Standard Weight (with ROPS) | 16,640 kg |
| Overall Dimensions (L*W*H) | 11,100 x 2,630 x 3,140 mm |
| Max. Drawbar Traction | 99 kN |
| Min. Turning Radius | 7,800 mm |
| Travel Speed (Forward / Reverse) | 40 km/h / 25 km/h |
| Engine Model | SDEC SC9D220G2 |
| Net Power | 162 kW @ 2200 RPM |
| Max. Torque | 920 N.m @ 1400 RPM |
| Emission Standard | Tier 2 |
| Transmission Type | Converter, Powershift (6F / 3R) |
| Tandem Axle Manufacturer | SEM / Caterpillar |
| Service Brake | Air over oil, Disc |
| Blade Width, Standard | 4,279 mm |
| Max. Cutting Depth | 715 mm |
| Hydraulic System | Load Sensing, PPPC (Variable Piston) |
| Fuel Tank Capacity | 280 L |
Engineering Highlights
High-Performance Powertrain

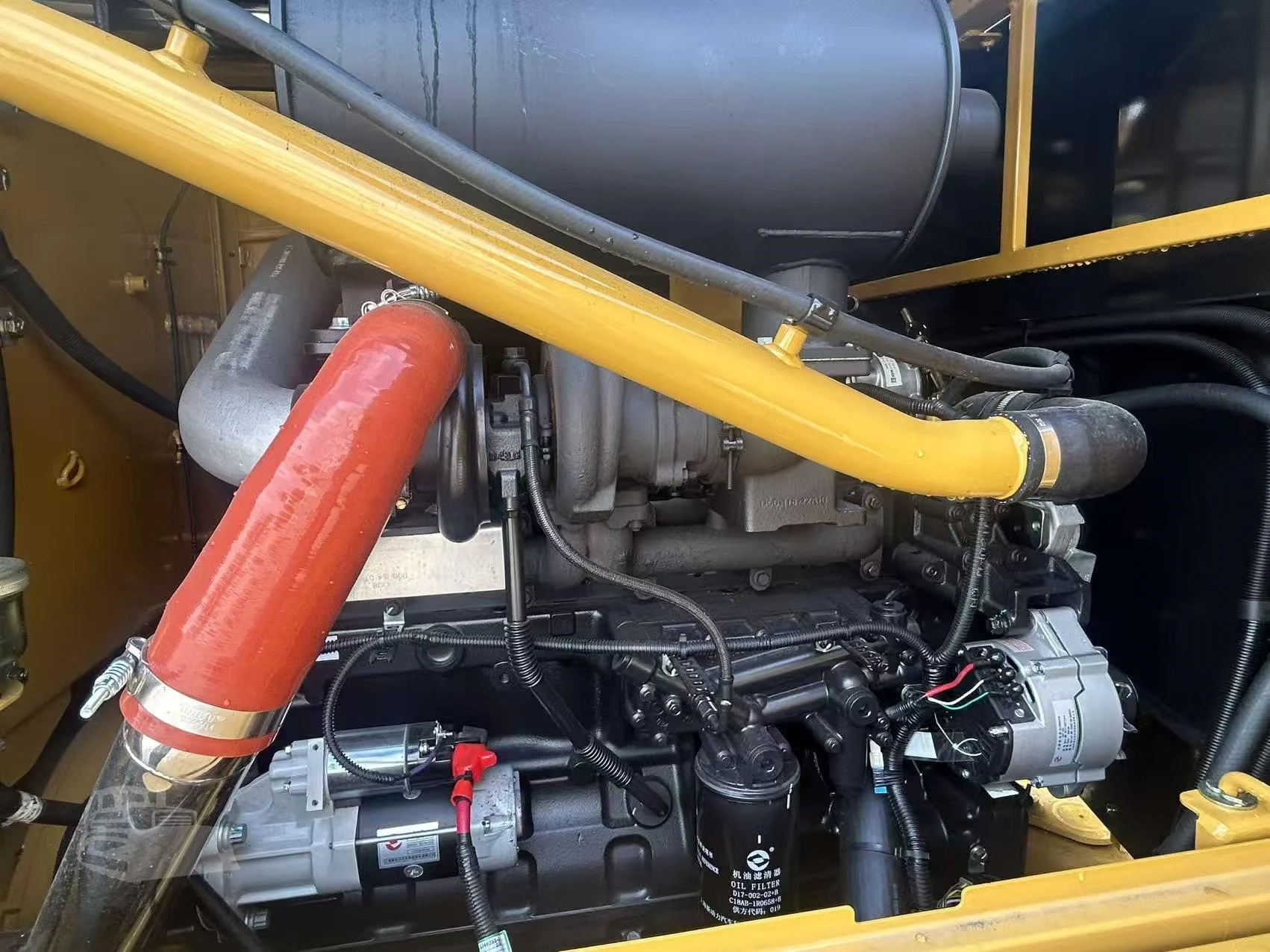

The SDEC SC9D220G2 engine is paired with an Advance/HangChi power shift transmission. This combination offers high reliability and ease of maintenance. The mechanical integrity of this system ensures that the 162kW of power is effectively transferred to the wheels without excessive heat buildup.
Caterpillar-Standard Axles
The tandem axle system is designed by Caterpillar and features a No-Spin differential. This automatic locking mechanism provides maximum traction in slippery or loose conditions, reducing tire wear and improving grade accuracy.
Load Sensing Hydraulics (PPPC)
The 922F utilizes a variable displacement piston pump that only generates flow when required. This significantly reduces fuel consumption and lowers hydraulic oil temperatures, extending the life of seals and hoses throughout the machine.
Operational Value for Your Project
| Feature | Operational Benefit |
|---|---|
| High Drawbar Traction (99kN) | Allows for deeper cuts and movement of heavier material volumes per pass. |
| Standard 4.2m Moldboard | Increases the width of the grading pass, reducing the total time required to finish a section of road. |
| Float Function | Enables the blade to follow ground contours naturally, ideal for snow removal or light surface finishing. |

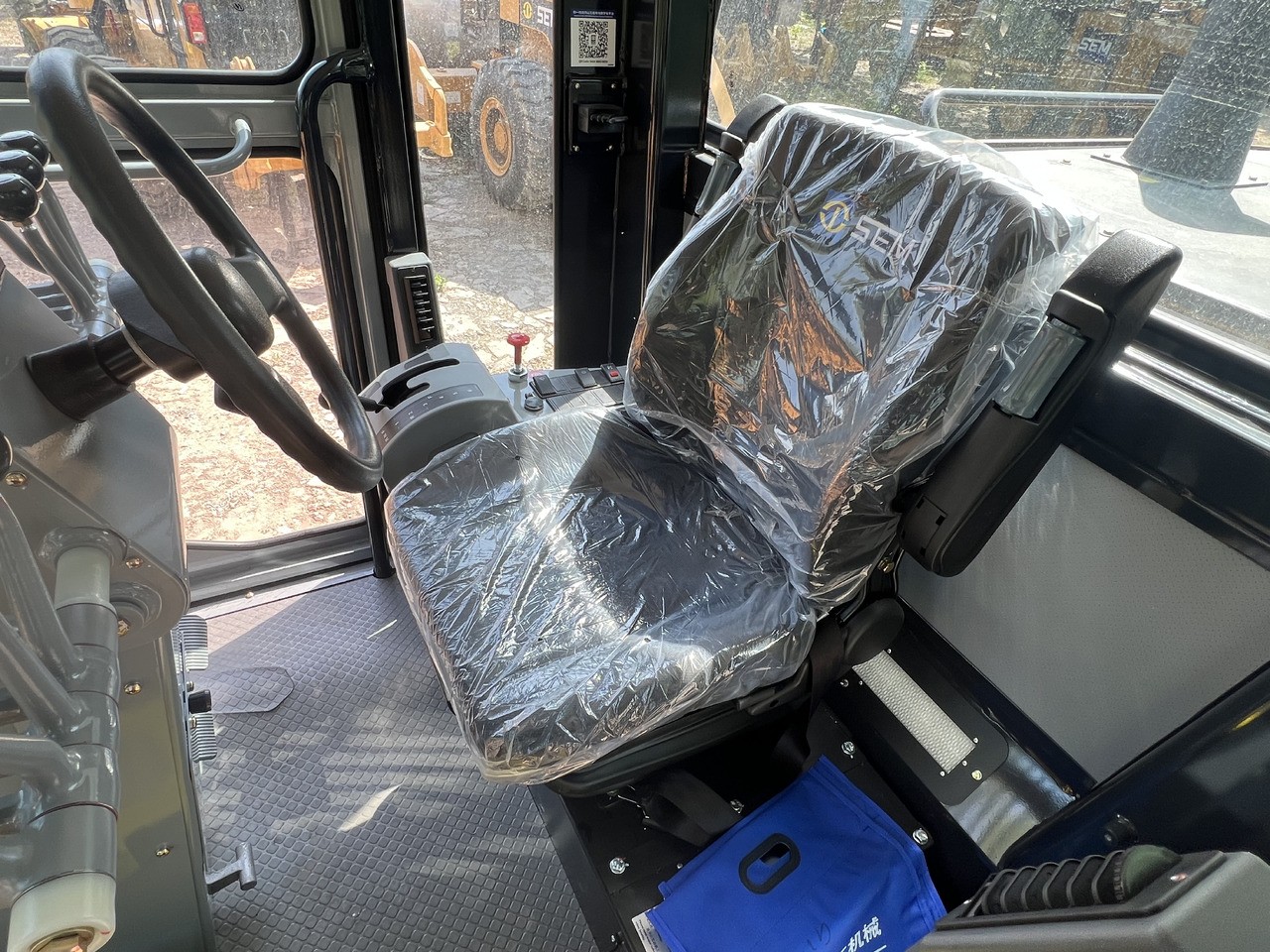

| Spacious ROPS Cabin | Ensures personnel safety and comfort, leading to higher concentration levels during long shifts. |
Choosing a Reliable Equipment Partner
Sourcing heavy machinery requires a partner who understands the logistics and technical aspects of the transaction. Look for:
Inventory Verification: Ensure the supplier has physical access to the machines and can provide serial number proof.
Logistical Expertise: Shipping a unit of this size (11.1 meters long) requires expertise in RORO or Bulk Cargo handling.
Component Support: Verify that the supplier can source genuine parts for the SDEC engine and SEM drivetrain.
Transparency: A trustworthy partner provides clear, all-inclusive quotes without hidden port fees.
Why Partner with ZW Group?
ZW Group is a premier exporter of heavy construction machinery, specializing in connecting global infrastructure projects with top-tier equipment. Our experience with the Brand New SEM 922F Motor Grader ensures a smooth procurement process.
We handle every step, from the initial machine verification to the complex logistics of international shipping. Our team ensures that the hydraulic systems, engine parameters, and axle functions are fully tested before the unit leaves the yard. We deliver not just a machine, but a ready-to-work asset.
Frequently Asked Questions
1. What is the difference between the 920F and the 922F?
The 922F is more powerful (162kW vs 147kW) and heavier. It is designed for heavier loads and comes with a wider standard blade (4,279mm vs 3,974mm on the 920F).
2. Is the SDEC engine reliable?
Yes, the SDEC SC9D series is a mature engine platform known for high torque reserves and durability in construction environments, with parts widely available.
3. Does the machine come with a ripper?
The standard configuration focuses on the mid-mount blade. However, ZW Group can outfit the SEM 922F with a rear ripper or front dozer blade upon request to increase versatility.
4. What type of oil does the hydraulic system use?
The system uses standard hydraulic oil suitable for variable piston pumps. The tank capacity is 60L, and we recommend using high-quality fluids to protect the PPPC system.
5. Can ZW Group ship to landlocked countries?
Yes. We arrange multimodal transport, shipping to the nearest maritime port and then coordinating heavy-haul trucking to the final border or site destination.
Enhance Your Fleet Power Today
The Brand New SEM 922F Motor Grader represents the convergence of high power, proven Caterpillar engineering, and economic value. It is the ideal workhorse for heavy road construction and mining support.
ZW Group provides a comprehensive range of machinery solutions. Alongside new SEM and XCMG Motor Graders, we supply cost-effective Used CAT Graders (120H/140H).
Our inventory extends to cover all your project needs, including New and Used Excavators, Bulldozers, Wheel Loaders, Road Rollers, Forklifts, and Cranes. Additionally, we offer a full fleet of heavy trucks, from Dump Trucks and Tractor Units to Oil Tankers, Water Tankers, Mixer Trucks, and Truck-Mounted Cranes.
Ready to secure the SEM 922F? Get a quote from ZW Group today.
