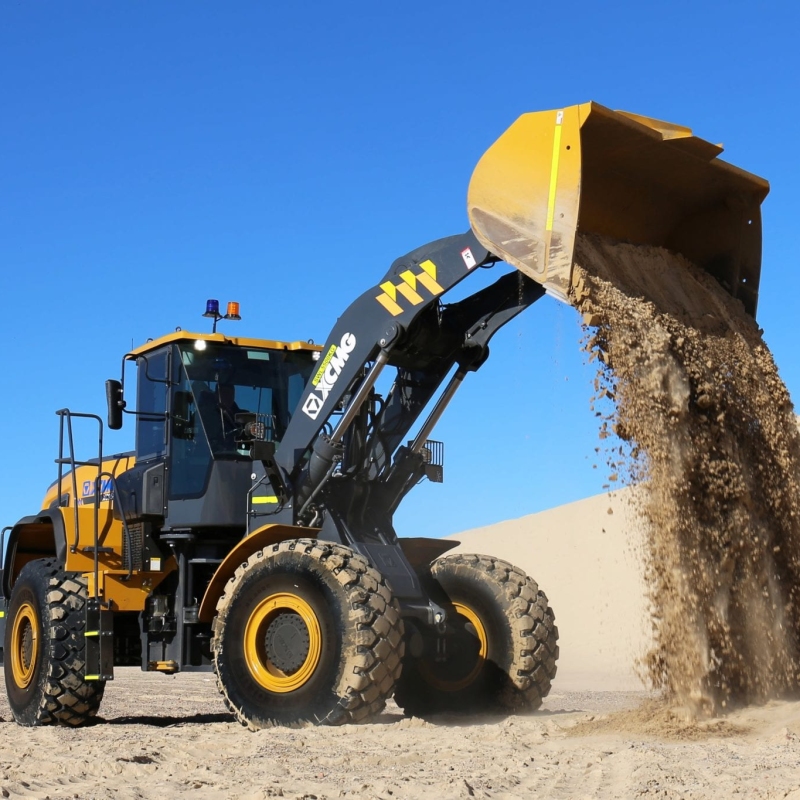

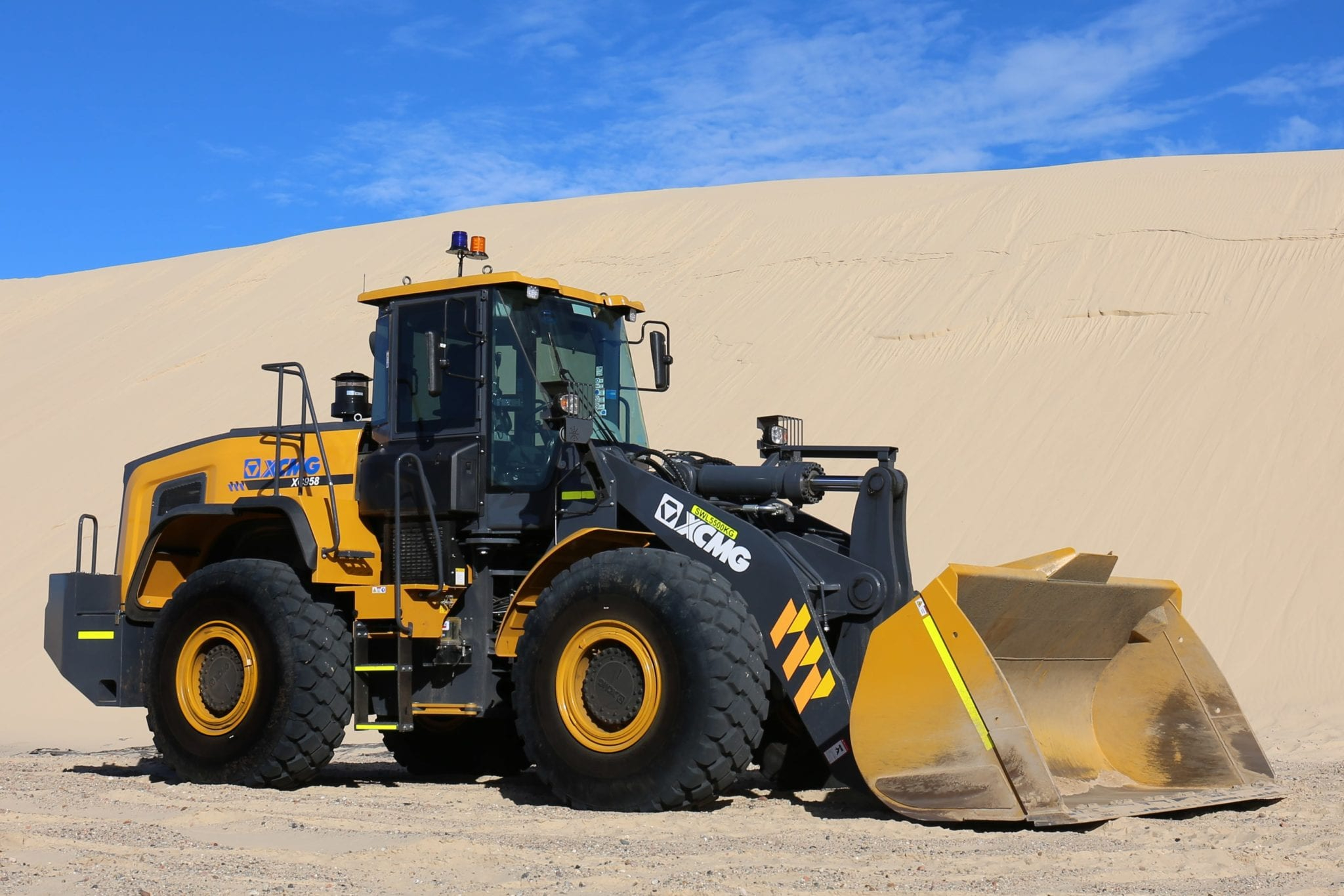

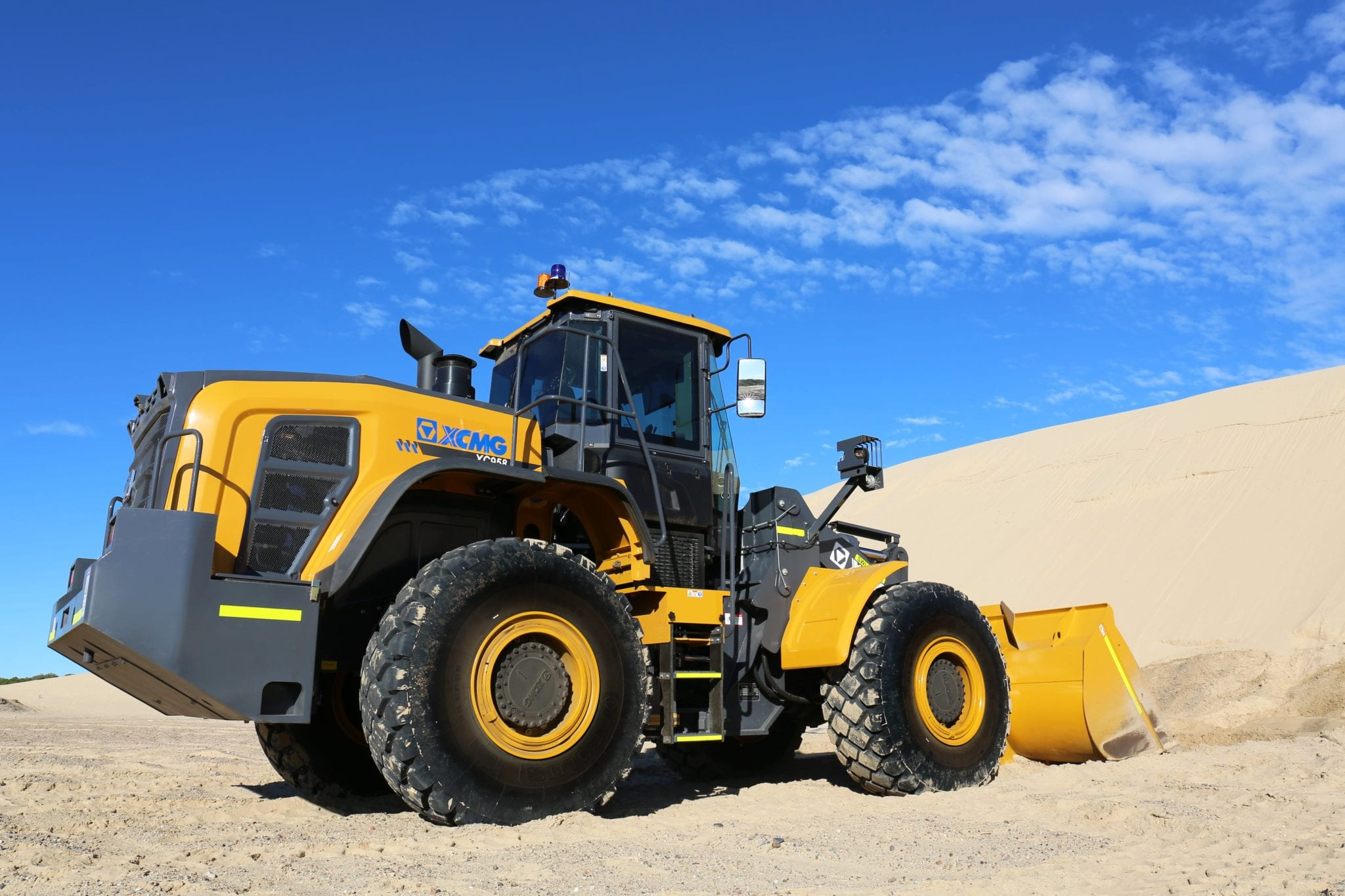

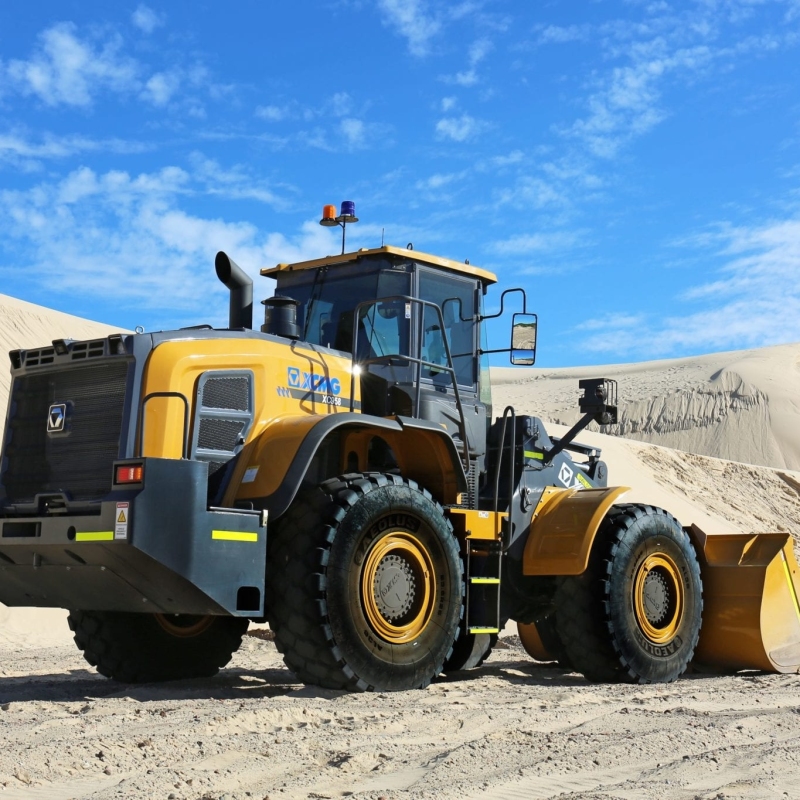

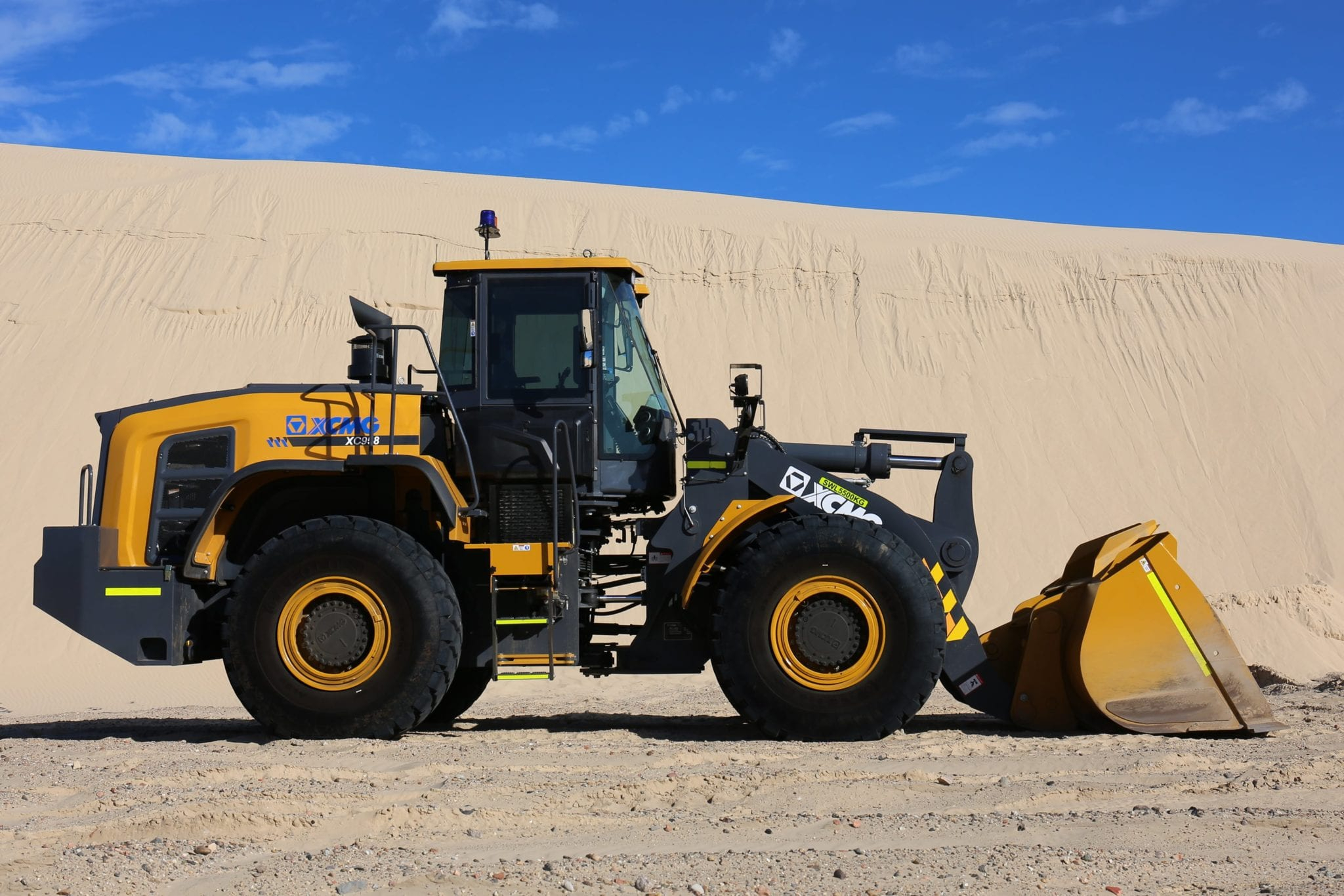

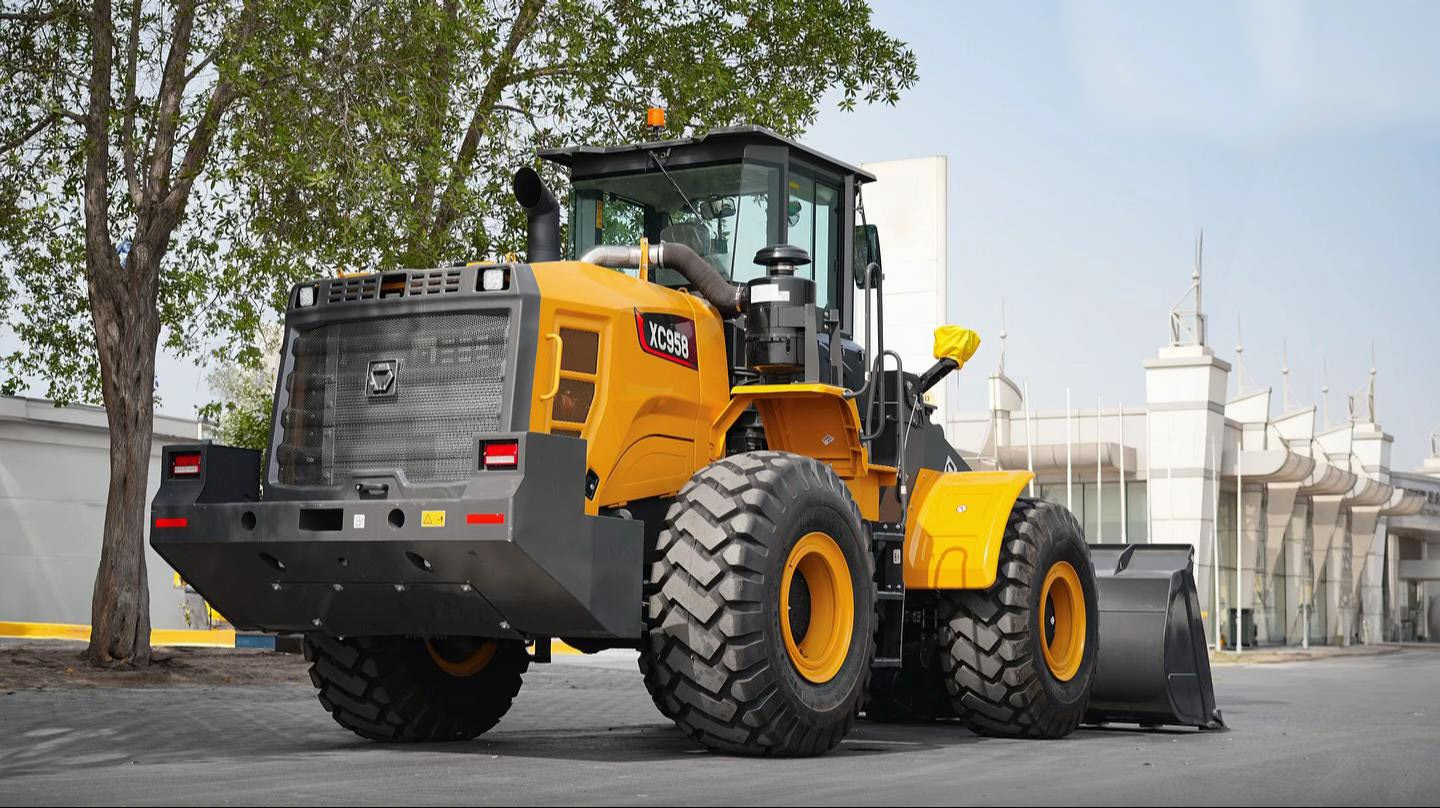

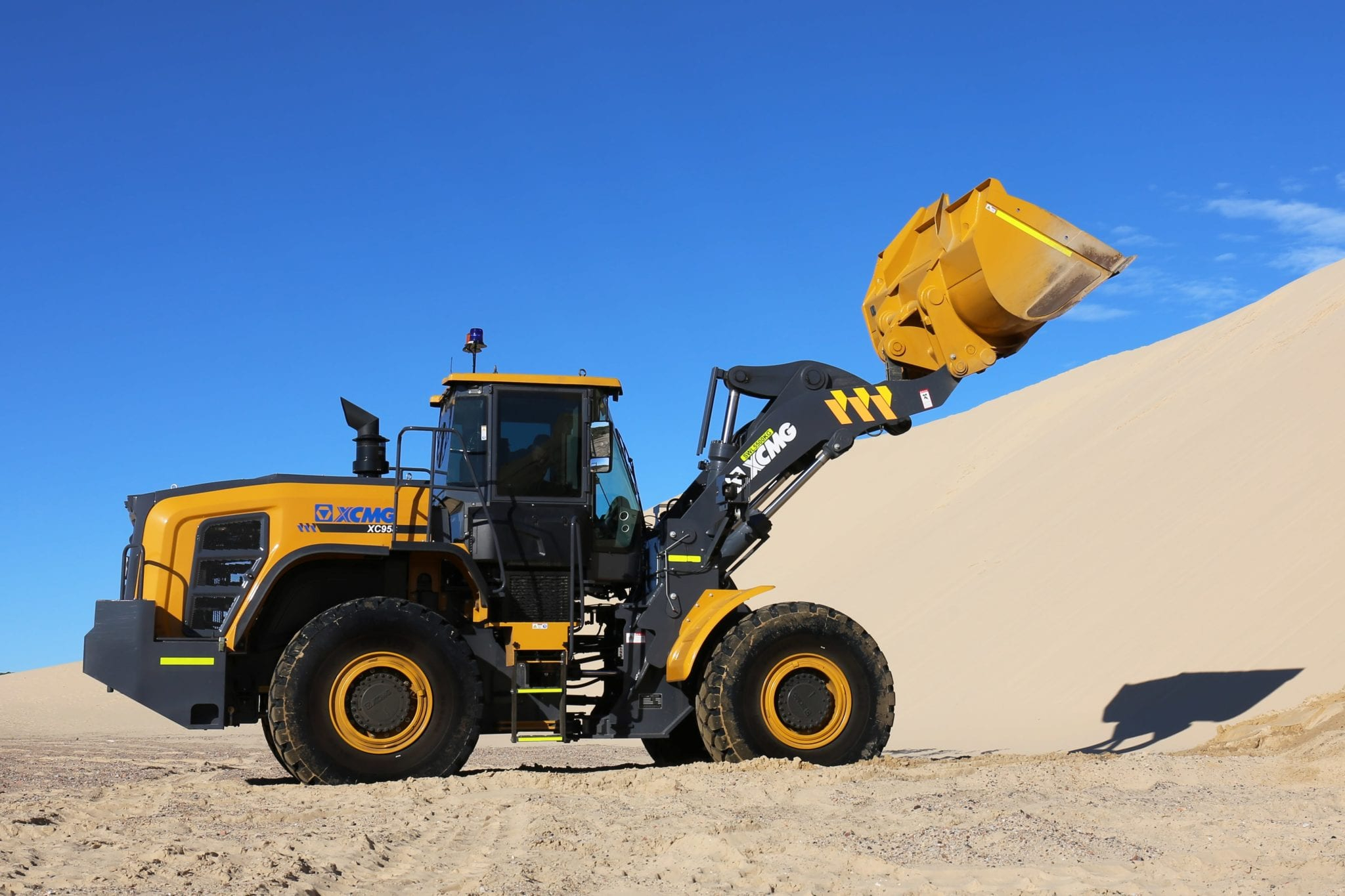

Brand New XCMG XC958 Wheel Loader
The brand new XCMG XC958 wheel loader delivers optimal loading efficiency and structural stability for bulk cargo ports, mining sites, and construction fields. ZW Group supplies this premium 5-ton equipment configured to accelerate cycle times and reduce daily maintenance expenses.
OPERATING WEIGHT： 19,600 kg
RATED POWER： 164 kW / 2200 rpm
BUCKET CAPACITY： 3.5 m³
BATTERY/ENGINE： Cummins QSB6.7
- Information
Brand New XCMG XC958 Wheel Loader
Heavy-duty earthmoving and material handling operations demand reliable machinery to eliminate unexpected project delays. The brand new XCMG XC958 wheel loader delivers optimal loading efficiency and structural stability for bulk cargo ports, mining sites, and construction fields. ZW Group supplies this premium 5-ton equipment configured to accelerate cycle times and reduce daily maintenance expenses.
| Specification Parameter | Technical Value |
|---|---|
| Operating Weight | 19.6 t |
| Standard Tyres | 23.5R25 |
| Bucket Width | 3 m |
| Bucket Capacity | 3 m³ |
| Bucket Capacity Min. | 2.5 m³ |
| Bucket Capacity Max. | 4.5 m³ |
| Transport Length | 6.905 m |
| Transport Width | 2.85 m |
| Transport Height | 3.435 m |
| Maximum Travel Speed | 38 km/h |
| Max. Discharge Height | 2.9 m |
| Lifting Force | 175 kN |
| Model Series | XC9 |
| Engine Manufacturer | Cummins |
| Engine Type | QSB6.7 |
| Engine Power | 164 kW |
| Displacement | 6.7 l |
| Revolutions at Max Torque | 2300 rpm |
| Max. Torque | 949 / 1500 Nm |
| Emission Level | Stage III |
Engine Performance and Fuel Economy
The heart of this 19.6 t earthmoving equipment is a highly reliable Cummins QSB6.7 diesel engine. This direct-injection system outputs 164 kW of power while maintaining minimized fuel consumption parameters during high-load periods. Advanced torque management delivers 949 Nm at low rotational speeds to decrease unnecessary throttle energy waste.
Electronic fuel injection matches power output directly to real-time resistance.
Optimized combustion cycles reduce fluid consumption without compromising structural breakout force.
Integrated economy modes allow managers to regulate fuel usage based on site requirements.
Structural Durability and High Load Capacity
The brand new XCMG XC958 wheel loader is constructed with a reinforced heavy-duty chassis to withstand intense structural stress. A robust lifting force of 175 kN guarantees rapid penetration into hard stock piles and dense aggregate formations. The standard 3 m³ bucket incorporates high-tensile steel wear edges to extend asset longevity under abrasive material conditions.
Large structural frame joints utilize heavy-duty tapered roller bearings to disperse stress evenly.
The adaptable front linkage permits bucket configurations ranging from 2.5 m³ up to 4.5 m³.
Robust 23.5R25 steel-belted radial tyres provide superior stability across uneven quarry landscapes.
Low Maintenance Costs and Service Accessibility
Fleet managers prioritize equipment that offers streamlined maintenance access to preserve daily productivity. The XC9 model series features a fully tilting engine hood that opens wide to expose all primary service fluid checkpoints. Centralized grease points allow technical personnel to complete mandatory lubrication cycles in minimal time frames.
Long-interval hydraulic and transmission fluid filters decrease routine warehouse replacement expenses.
Side-by-side radiator designs enable rapid cleaning access within high-dust jobsite conditions.
Genuine diagnostic ports allow rapid electronic system checks to prevent major component failures.
Procurement Services by ZW Group
As a premier heavy machinery and commercial vehicle exporter, ZW Group ensures rigorous quality control protocols for every unit shipped. Our technical team conducts multi-point technical inspections before departure to verify alignment with precise engineering requirements. We streamline global maritime logistics to deliver premium material handling solutions directly to your destination port.
To secure an official quote or discuss specialized bucket configurations for the brand new XCMG XC958 wheel loader, reach out to our trade department. Please navigate to submit an inquiry.
