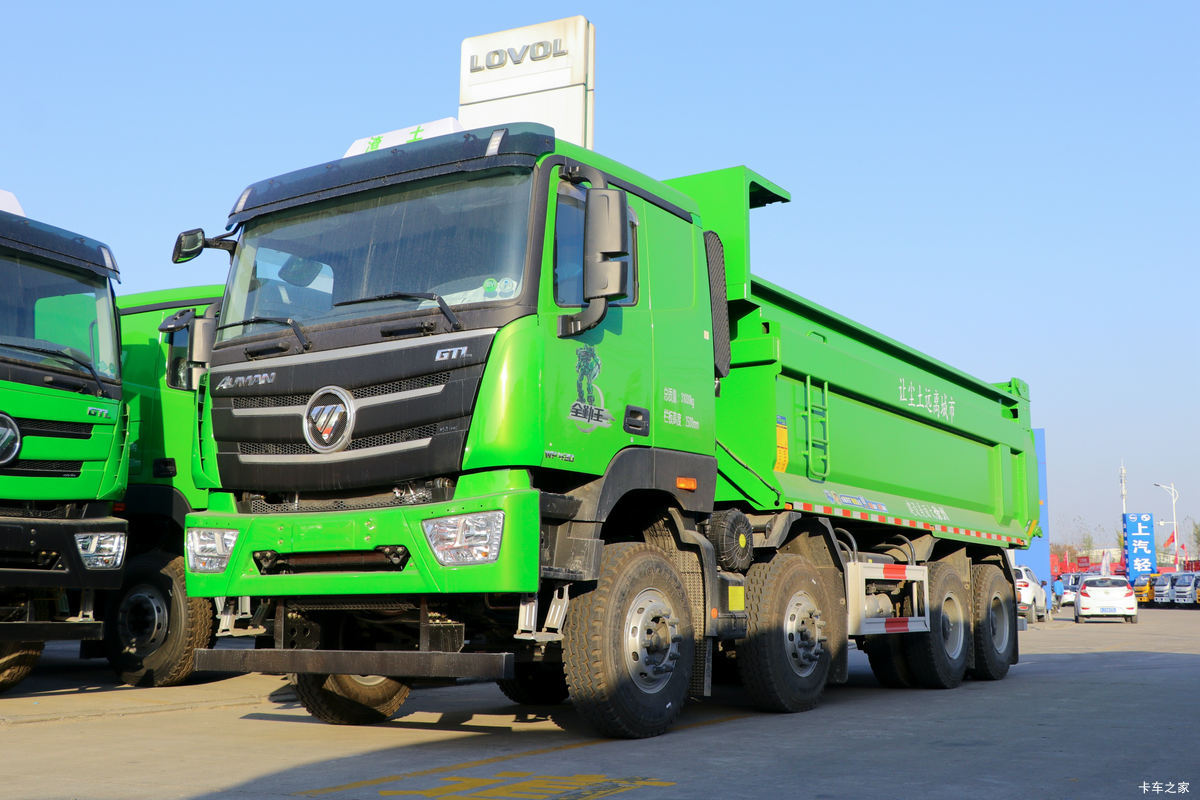

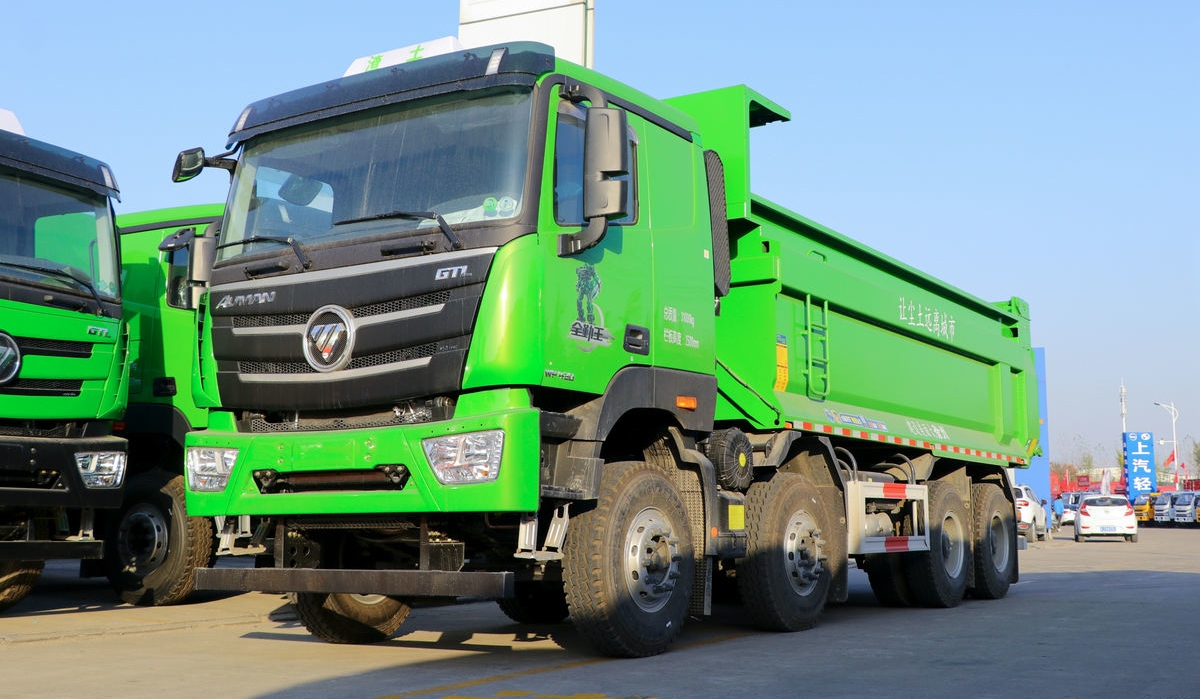

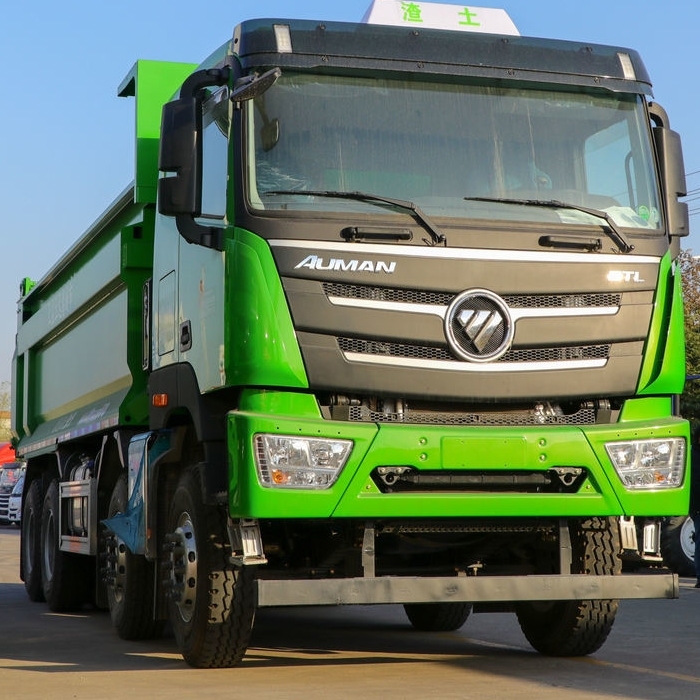

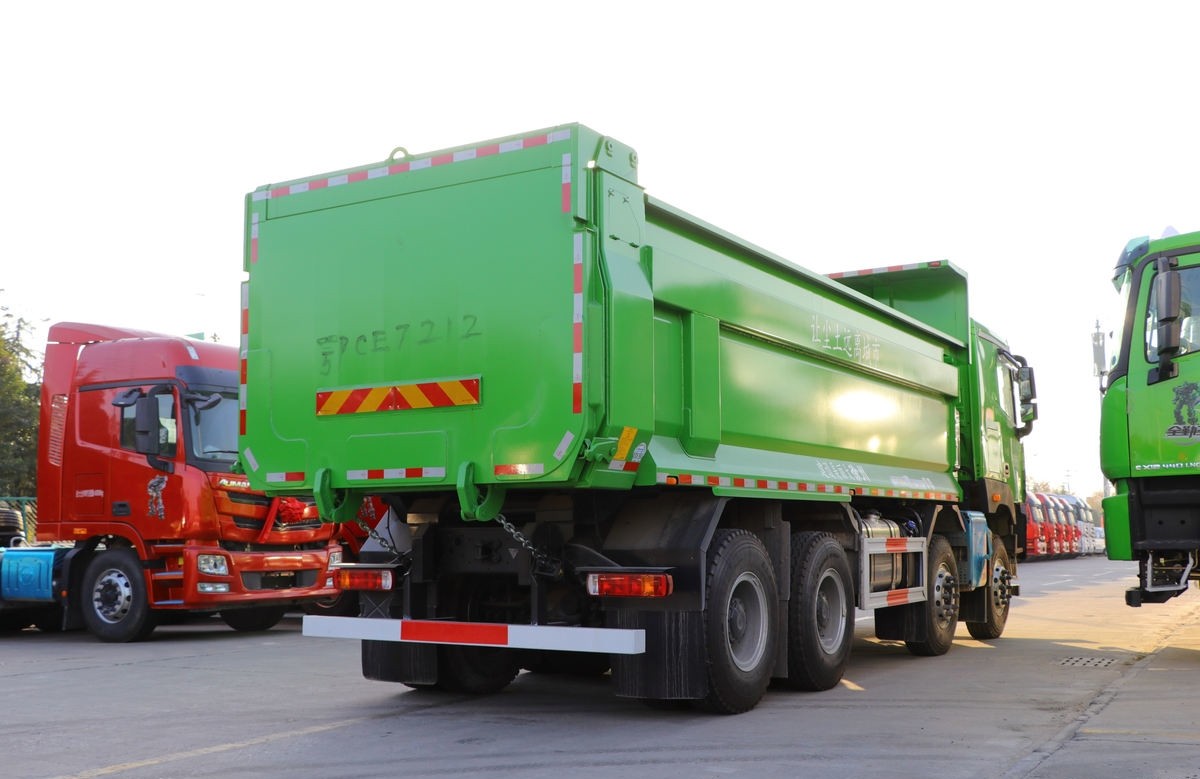

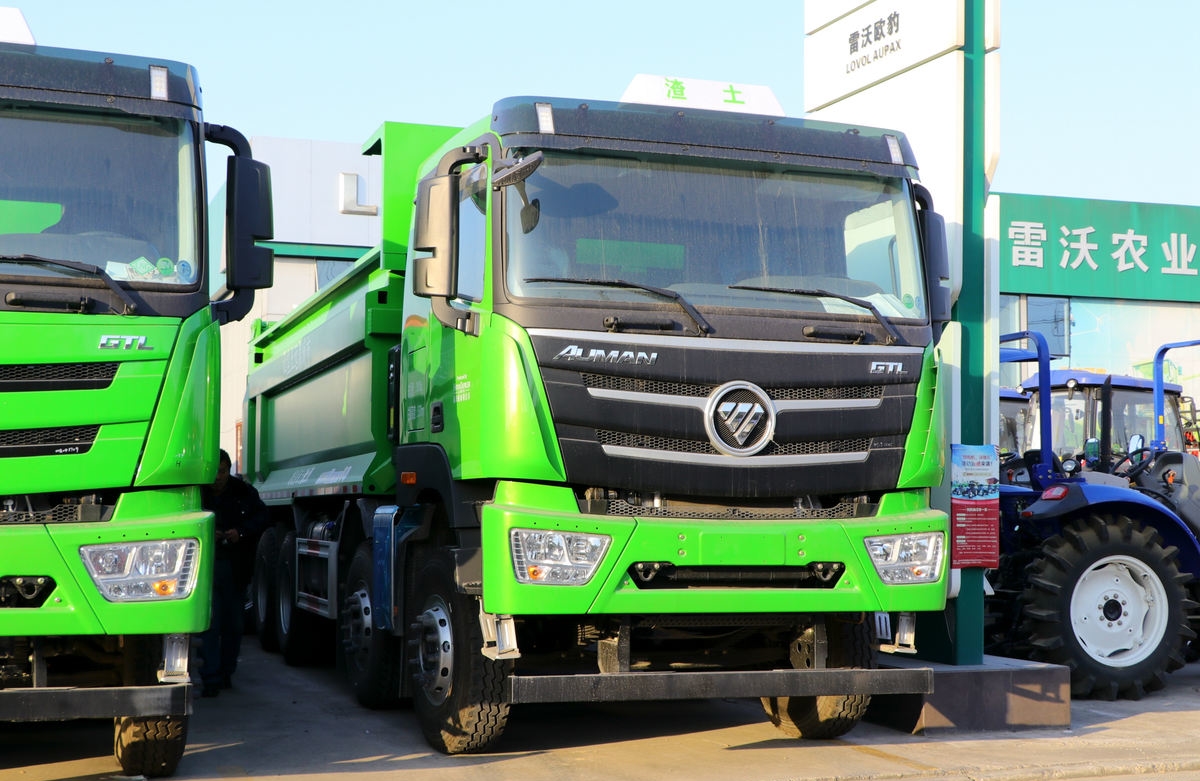

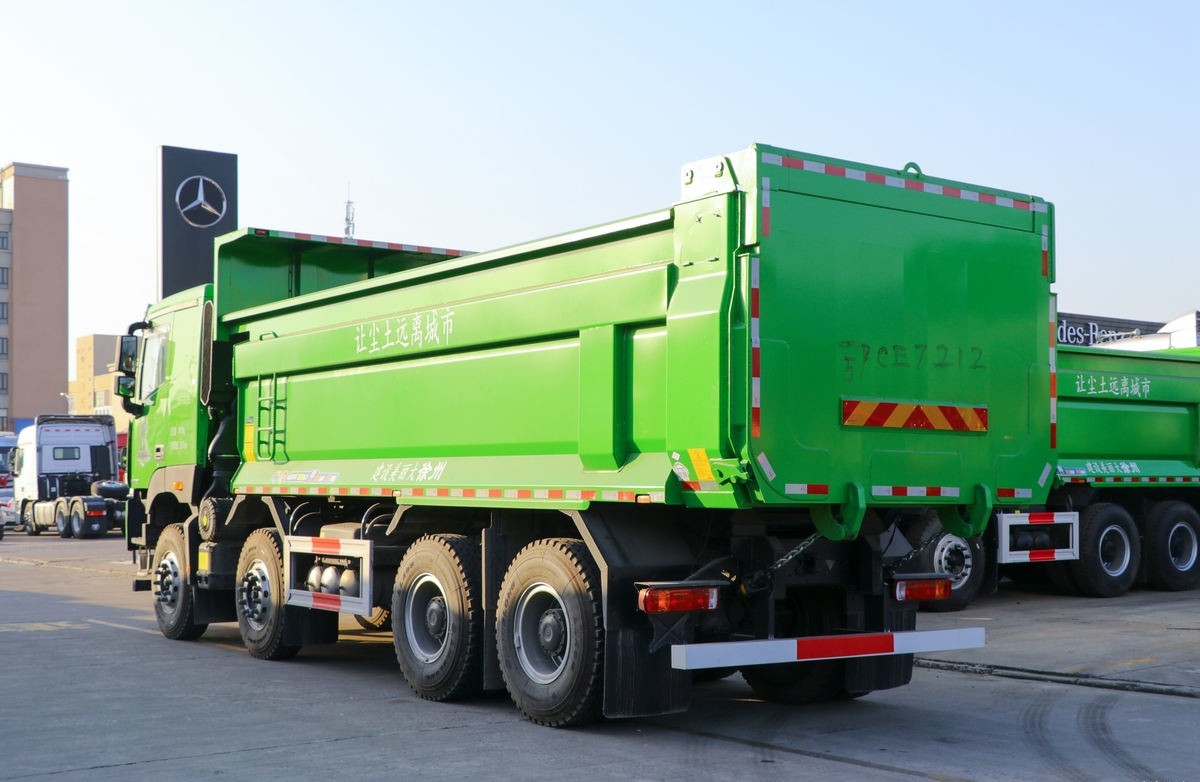

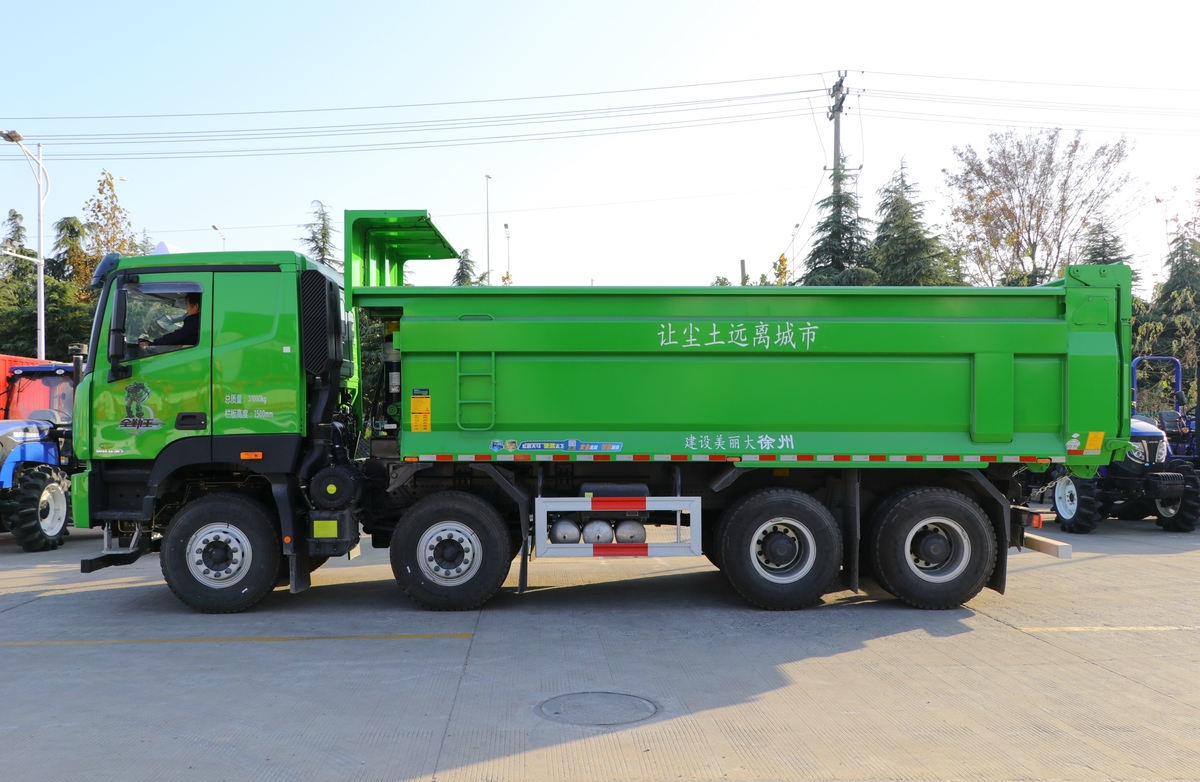

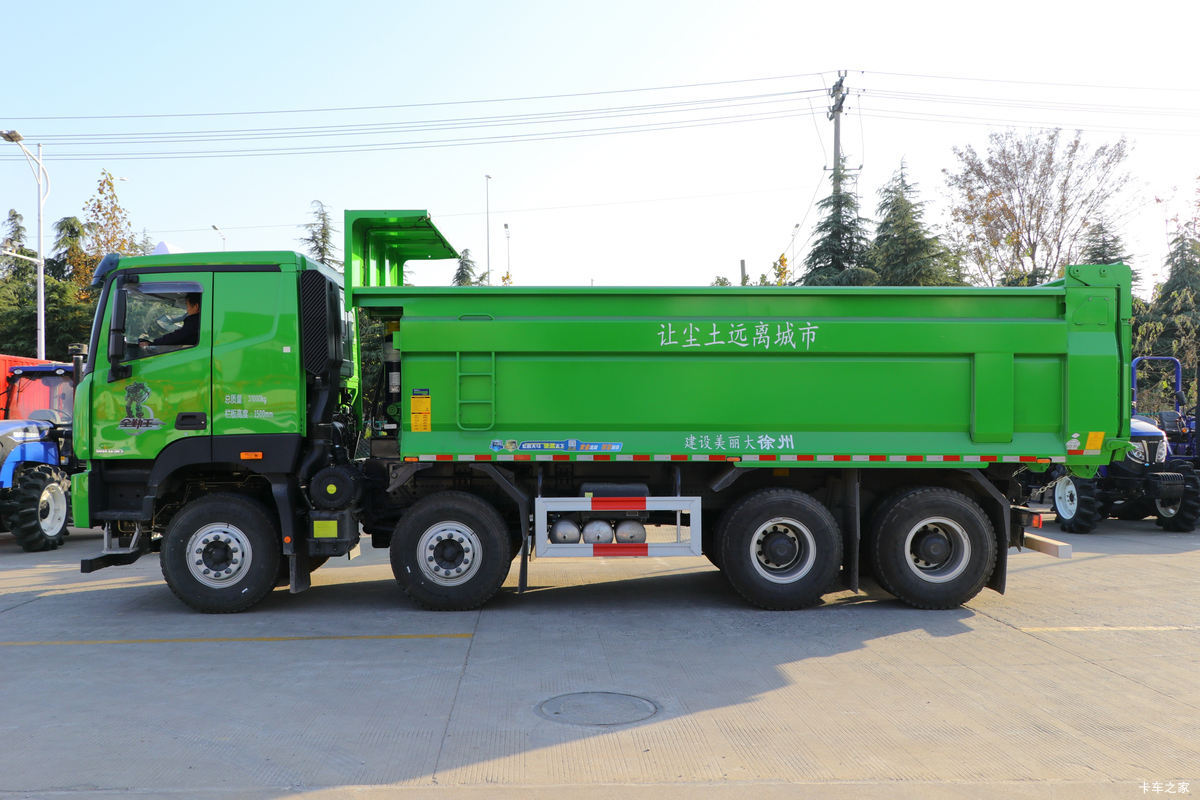

Foton GTL 8x4 430hp Dump Truck
The Foton GTL 8x4 430hp Dump Truck is a heavy-duty powerhouse designed for industries that demand maximum reliability and massive payload capacity. Built on the proven Global Technology Logistics (GTL) platform, this vehicle excels in transporting bulk materials over diverse terrains.
- Foton
- China
- 15-20 days
- 100 units per month
- Information
Foton GTL 8x4 430hp Dump Truck: High-Capacity Solutions for Heavy Hauling
The Foton GTL 8x4 430hp Dump Truck is a heavy-duty powerhouse designed for industries that demand maximum reliability and massive payload capacity. Built on the proven Global Technology Logistics (GTL) platform, this vehicle excels in transporting bulk materials over diverse terrains. Whether your project involves deep mining, large-scale infrastructure, or massive earthmoving, the Foton GTL 8x4 430hp Dump Truck provides the mechanical strength and efficiency required for consistent performance.
At ZW Group, we specialize in providing high-quality transport solutions. We offer the Foton GTL 8x4 430hp Dump Truck in both brand-new and professionally maintained used conditions. The 8x4 drive configuration is ideal for stability and weight distribution, though 6x4 options remain available for specific site needs. Furthermore, while the 430hp engine is a top choice for power, we offer alternative horsepower ratings to align with your operational goals.
Detailed Technical Specifications
Understanding the internal components of the Foton GTL 8x4 430hp Dump Truck is essential for evaluating its suitability for your site. Below is the comprehensive technical data for the BJ3319Y6GRL-46 model:
| Component/Feature | Specifications |
|---|---|
| Announcement Model | BJ3319Y6GRL-46 |
| Drive Type | 8X4 |
| Wheelbase | 2100+2300+1400mm |
| Engine Model | Weichai WP10.5H430E62 |
| Transmission Model | FAST 12JSDX240A |
| Rear Axle Ratio | 5.92 |
| Vehicle Length | 8.86 meters |
| Vehicle Width | 2.55 meters |
| Vehicle Height | 3.65 meters |
| Front Wheel Track | 2020/2020mm |
| Rear Wheel Track | 1865/1865mm |
| Curb Weight | 15.5 tons |
| Rated Load Capacity | 15.37 tons |
| Gross Vehicle Weight (GVW) | 31 tons |
| Tonnage Category | Heavy-Duty Truck |
| Approach Angle | 16 degrees (°) |
| Departure Angle | 16 degrees (°) |
| Cylinder Count | 6 Cylinders |
| Fuel Type | Diesel |
| Displacement | 10.5L |
| Emission Standard | China VI / Euro VI Equivalent |
| Maximum Horsepower | 430hp |
| Maximum Output Power | 316kW |
| Maximum Torque | 2000N·m |
| Torque Speed Range | 1000-1400rpm |
| Rated Speed | 1900rpm |
Core Advantages of the Foton GTL Series
Powerful Weichai Engine Integration
The Foton GTL 8x4 430hp Dump Truck is powered by the Weichai WP10.5H series engine. This engine is famous for its high torque output and long service life. With 430hp at your disposal, the vehicle maintains steady traction even when hauling peak loads up steep quarry roads. The 10.5L displacement ensures that the truck has sufficient energy reserves for the most demanding cycles.

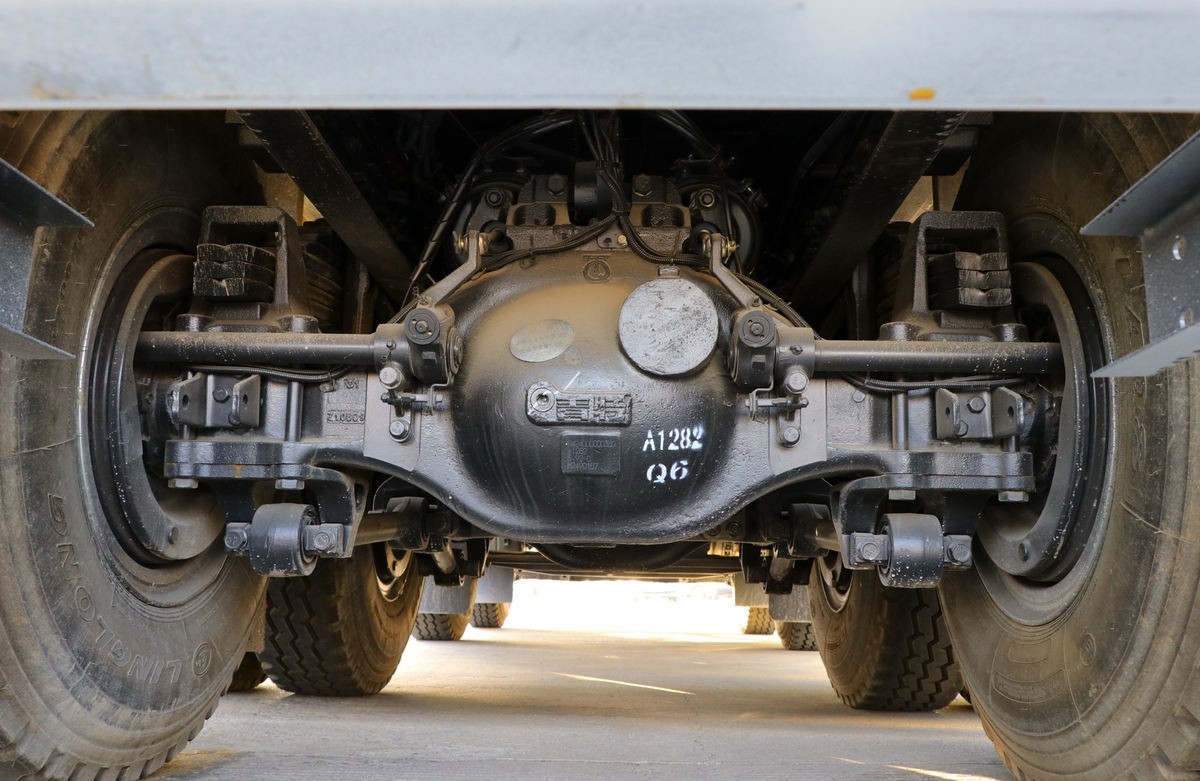

FAST Transmission and Robust Drivetrain
Equipped with a FAST 12JSDX240A transmission, the Foton GTL 8x4 430hp Dump Truck offers smooth shifting and excellent power delivery. The 12-speed configuration allows for precise control across different speeds. Combined with a 5.92 rear axle ratio, this drivetrain is optimized for torque, ensuring the vehicle can pull out of soft ground or climb grades with ease.
Structural Durability and Stability
The 8x4 drive layout provides four axles to distribute the 31-ton gross weight effectively. This reduces the pressure on individual tires and enhances stability on uneven site surfaces. The high approach and departure angles also ensure that the chassis remains protected when navigating rough terrain or deep pits.
Primary Target Users and Applications
The Foton GTL 8x4 430hp Dump Truck is a versatile asset designed for professional use in several key areas:
Large-Scale Mining: Transporting minerals, coal, and overburden across rugged mining sites.
Civil Infrastructure: Delivering massive quantities of sand, stone, and asphalt for highway construction.
Commercial Real Estate Development: Moving earth and debris for foundation and land preparation.
Bulk Material Logistics: High-efficiency hauling for cement, gravel, and industrial waste.
Fleet Expansion: Logistics companies seeking reliable, heavy-duty tippers with standardized maintenance.
Comparison of Foton Dump Truck Series
Foton offers several series to cater to different operational needs. While the Foton GTL 8x4 430hp Dump Truck is a balanced leader in power and endurance, other options are available:
| Model Series | Primary Focus | Official Link |
|---|---|---|
| Foton ETX Dump Truck | Classic reliability and cost-effective hauling. | View ETX Series |
| Foton EST Dump Truck | Premium technology and high-efficiency logistics. | View EST Series |
| Foton GTL Dump Truck | Global technology standards with high-torque endurance. | View GTL Series |
Frequently Asked Questions
What makes the Foton GTL 8x4 430hp Dump Truck suitable for mining?
The 8x4 configuration provides exceptional traction and stability on loose soil. Combined with the 430hp Weichai engine, it has the power required to carry heavy payloads out of deep mining pits without mechanical strain.
Can I get this truck with a different engine power?
Yes. While the 430hp model is one of the most popular configurations for heavy hauling, the GTL series offers various horsepower ratings to match the specific needs of your site or fuel consumption targets.
Are used Foton GTL trucks reliable?
Absolutely. When sourced through ZW Group, each used Foton GTL 8x4 430hp Dump Truck undergoes a rigorous inspection process to ensure the engine, transmission, and hydraulic systems are in excellent condition for immediate use.

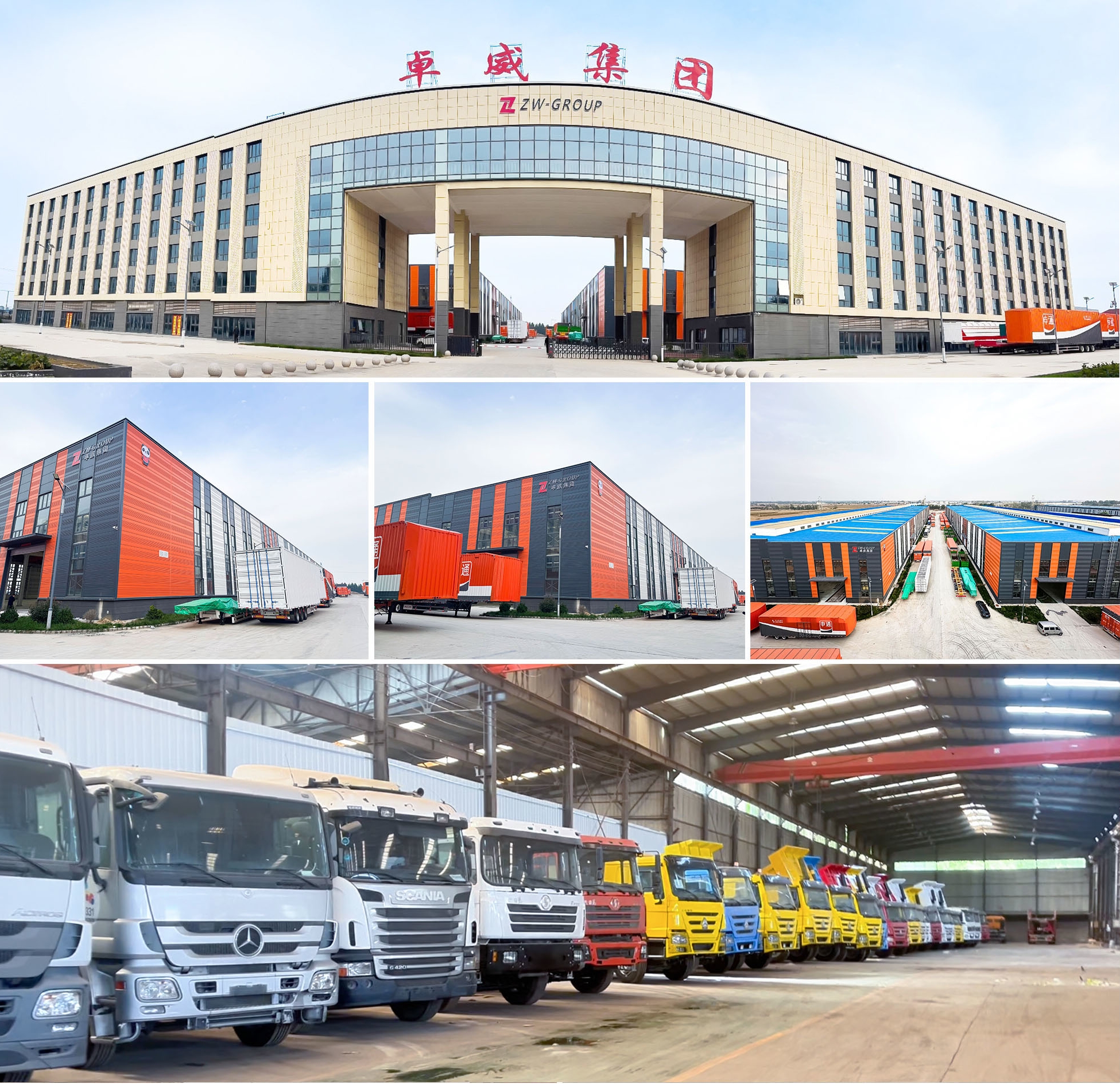

About ZW Group
ZW Group is a leading global supplier of high-performance heavy-duty trucks and engineering machinery. Our extensive portfolio includes the powerful Foton GTL 8x4 430hp Dump Truck, tractor units, concrete mixers, and specialized trailers. We are committed to providing our clients with equipment that enhances operational efficiency and durability. Whether you require brand-new machinery or cost-effective used solutions, ZW Group ensures that every vehicle meets strict quality standards.
We invite you to explore our full range of heavy-duty tippers and construction equipment. For a customized quote or technical consultation regarding the Foton GTL 8x4 430hp Dump Truck, please contact our team today.
