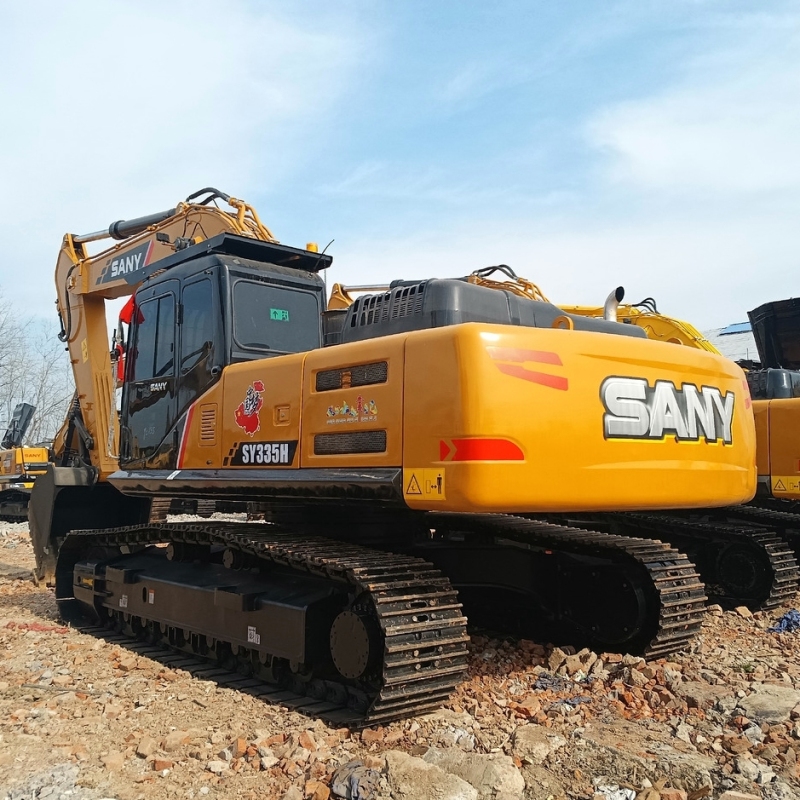

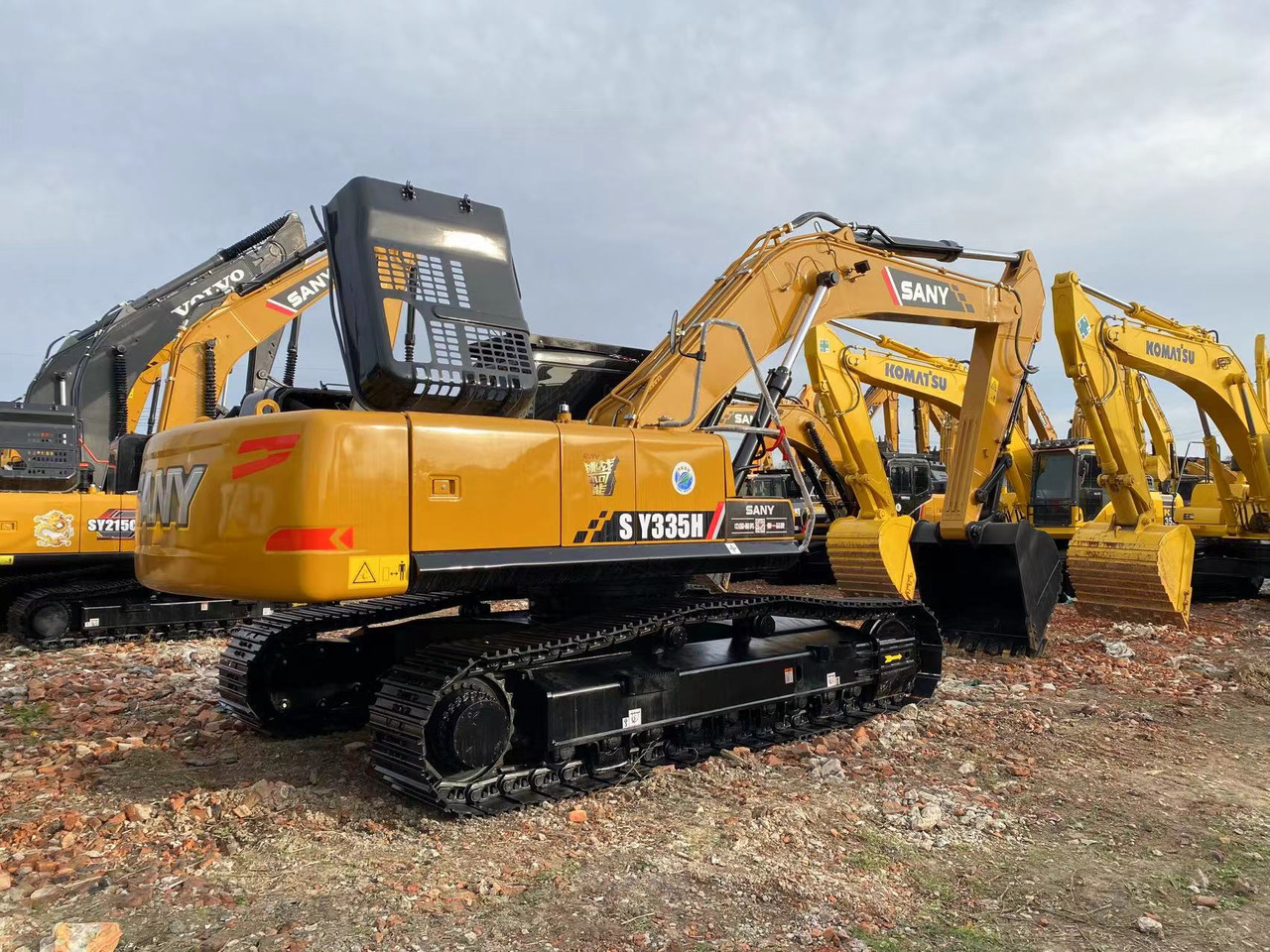

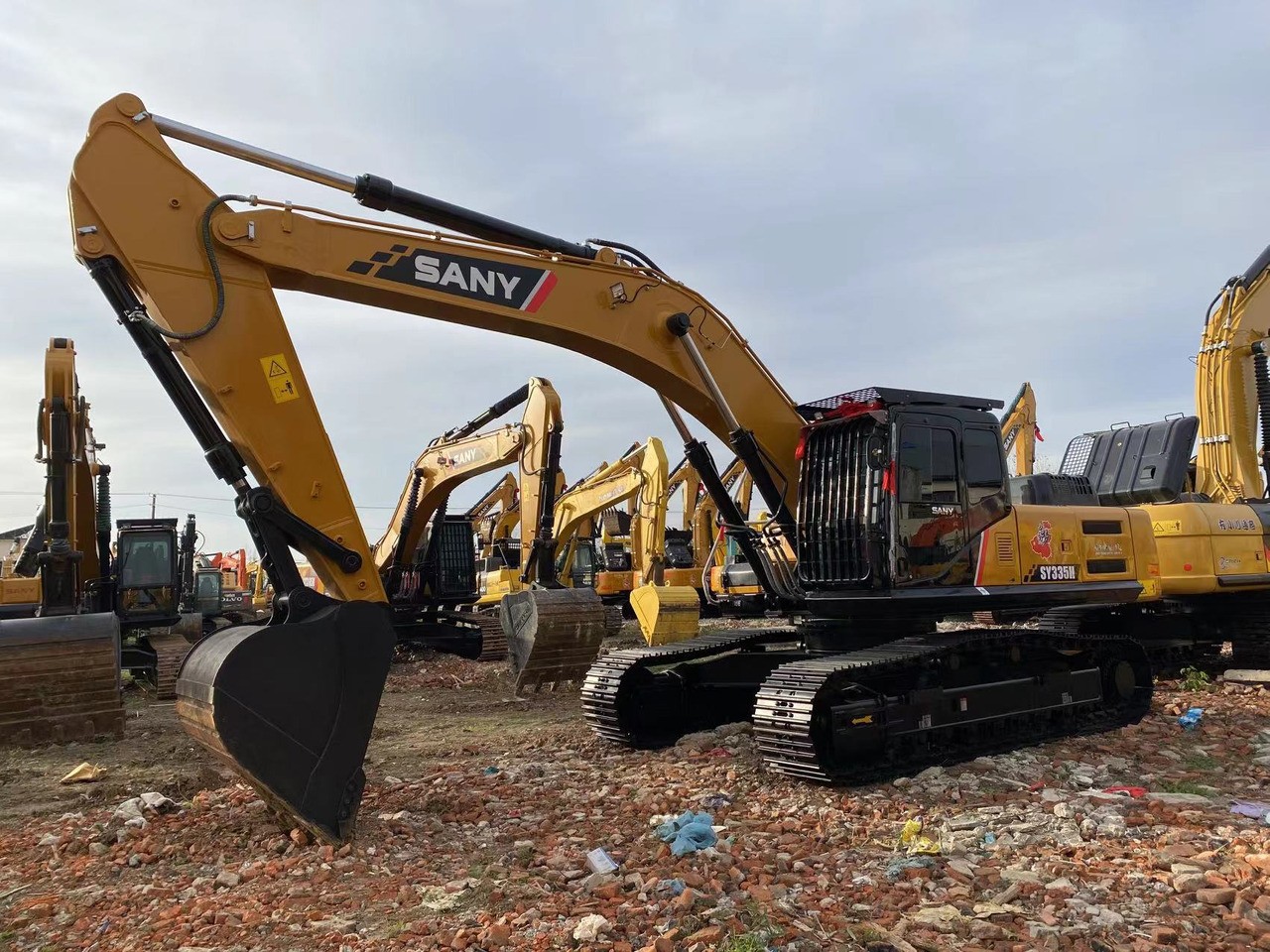

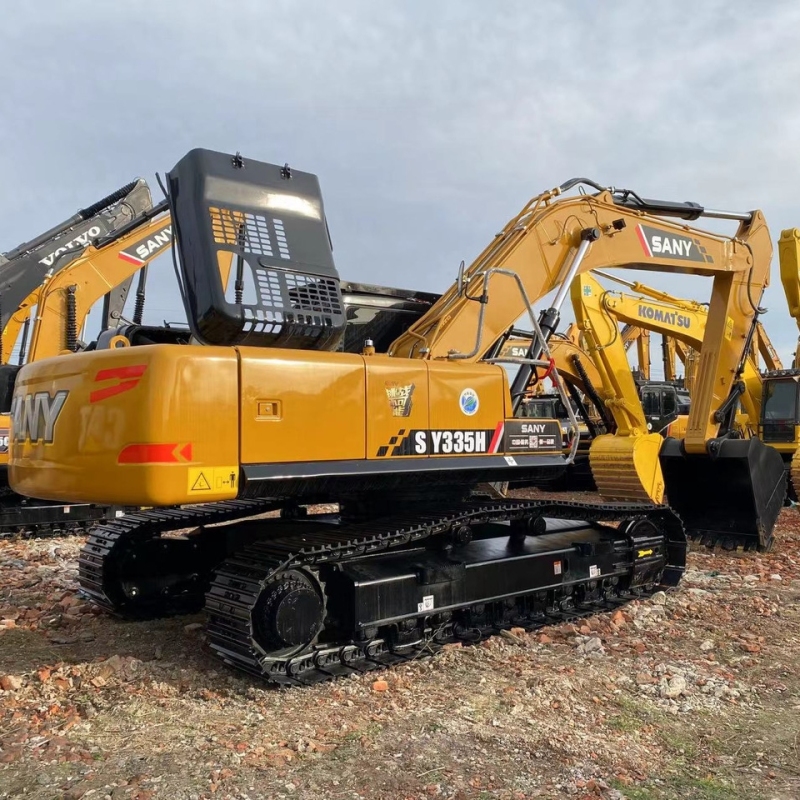

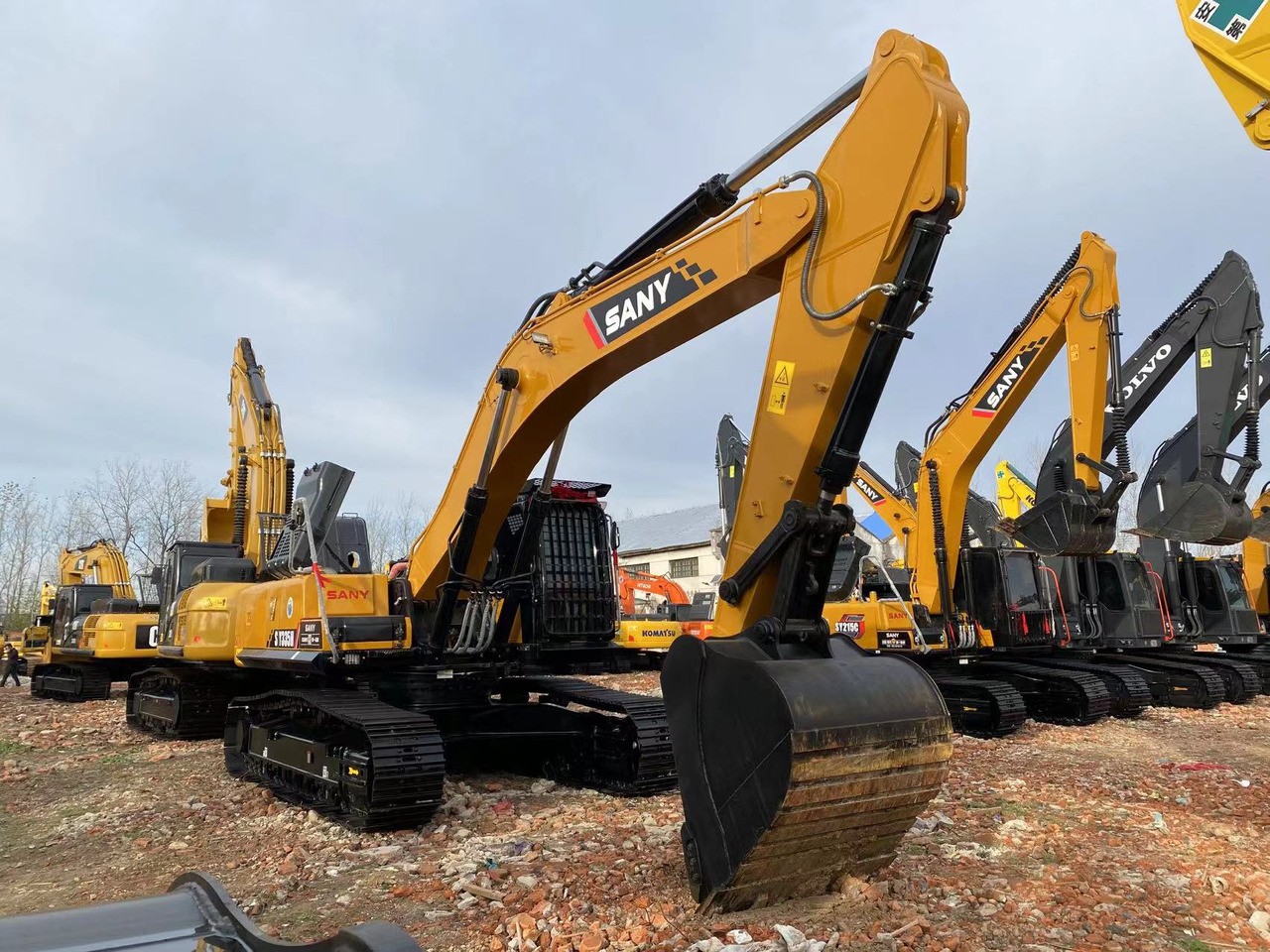

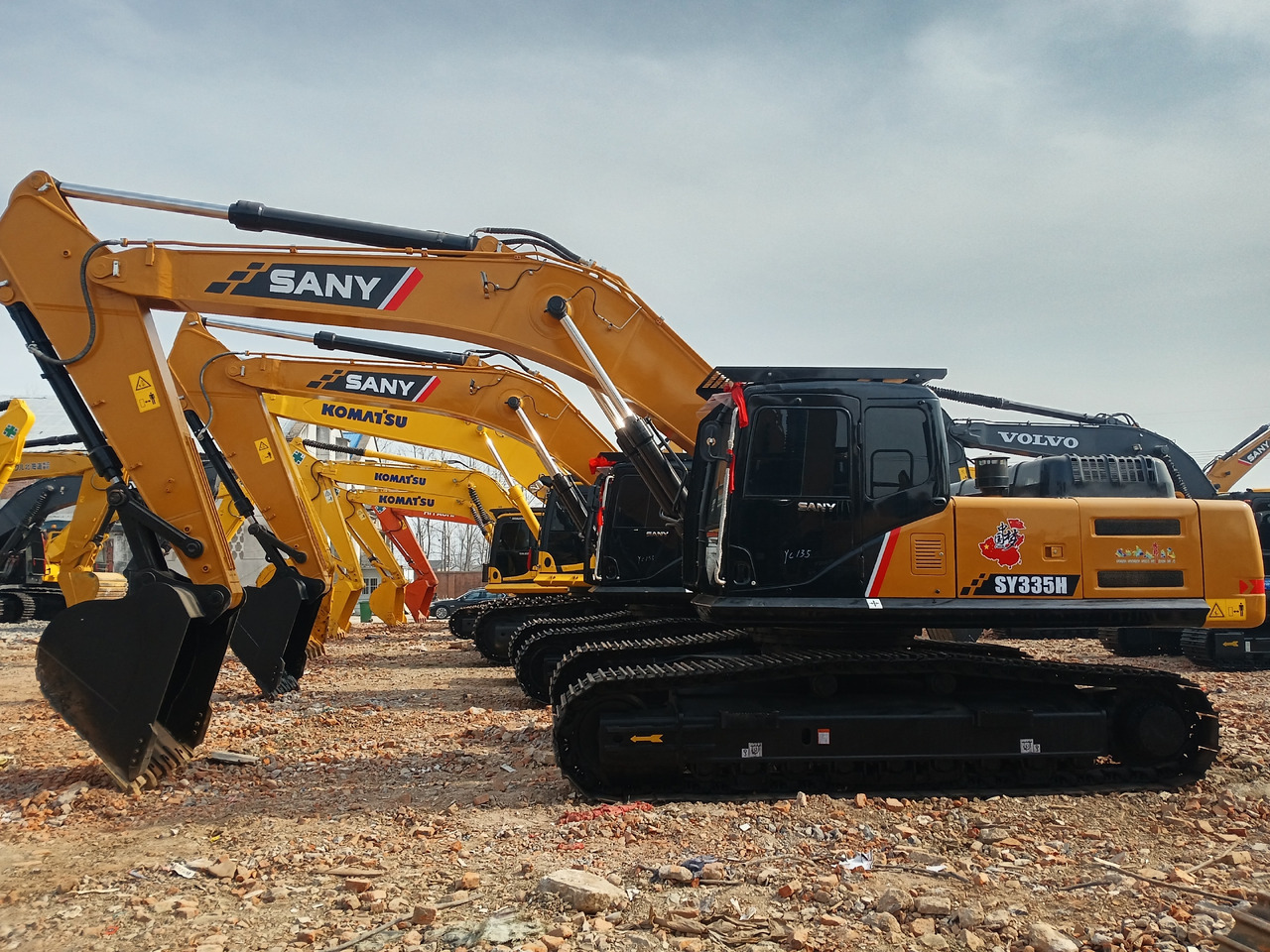

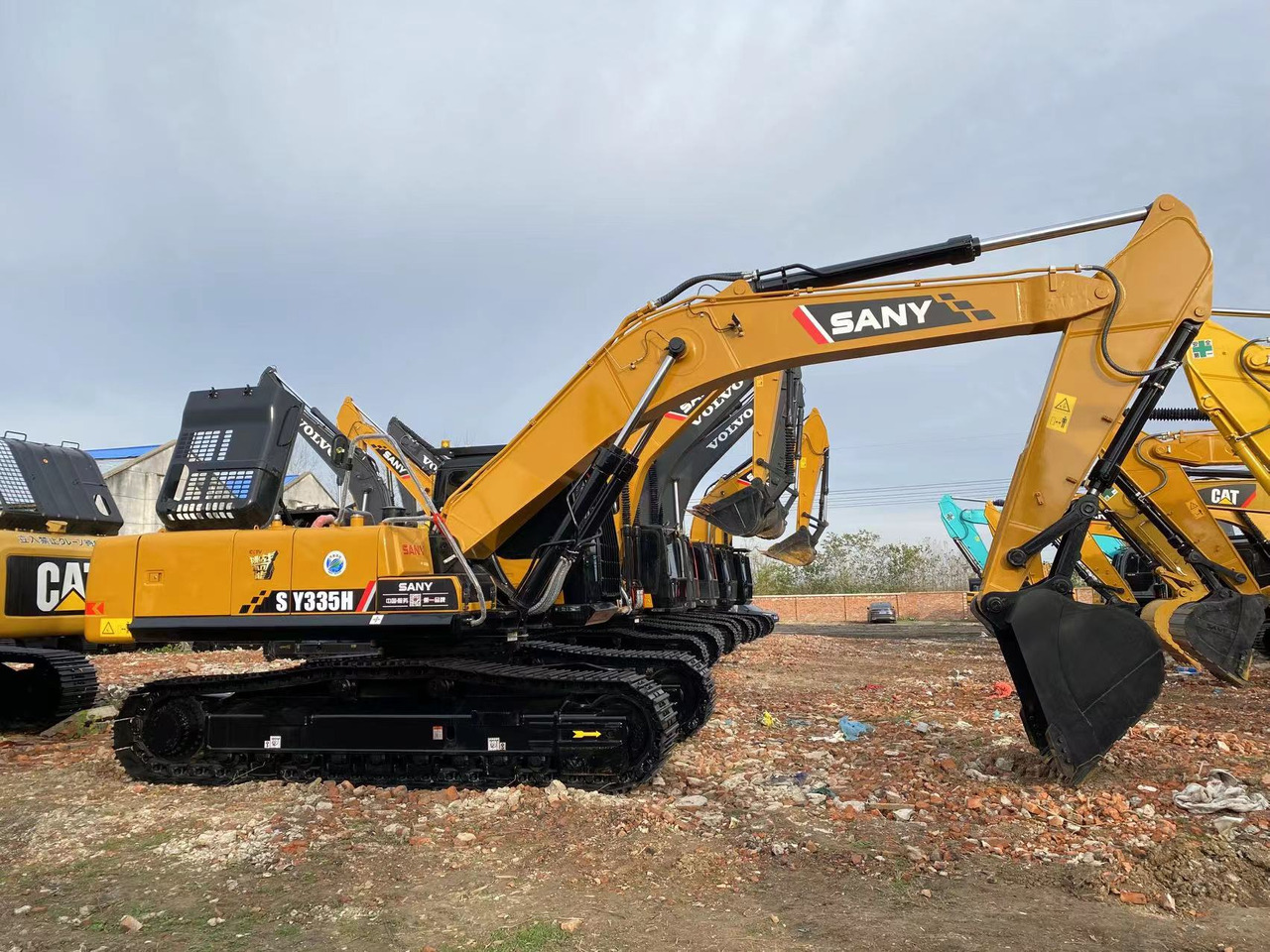

Brand New Sany Sy335H Excavator
The Brand New Sany Sy335H Excavator is a 32.5-ton hydraulic crawler machine, specifically reinforced with high-tensile steel to excel in high-intensity mining, quarrying, and large-scale earthmoving operations.
- Sany
- China
- 15-20 days
- 10000 Unit/Month
- Information
Brand New Sany Sy335H Excavator: The Heavy-Duty Mining Solution
What is the Brand New Sany Sy335H Excavator?
The Brand New Sany Sy335H Excavator is a 32.5-ton hydraulic crawler machine, specifically reinforced with high-tensile steel to excel in high-intensity mining, quarrying, and large-scale earthmoving operations.
Why Choose Sany's "H" Series?
The "H" designation in the SY335H stands for "Heavy" or "Mining" class. Unlike standard construction models, this machine features a strengthened boom, arm, and undercarriage. Sany has engineered this model to withstand the extreme torsional stresses encountered when prying loose heavy rock or operating on uneven quarry floors.
Furthermore, efficiency is at the heart of the design. The SY335H utilizes an advanced positive flow control hydraulic system that perfectly matches the engine's 212kW power output. This synchronization ensures that every movement of the joystick translates instantly into powerful digging force, minimizing fuel waste and maximizing the volume of material moved per hour.
Sany Excavator Model Comparison
Selecting the correct tonnage is vital for project efficiency. The SY335H occupies the sweet spot for heavy production without the massive transport logistics of ultra-large mining shovels.
| Model | Operating Weight | Bucket Capacity | Primary Application |
|---|---|---|---|
| Sany SY215C | 21,500 kg | 0.9 - 1.2 m³ | Urban Construction & Road Building |
| Sany SY335H | 32,500 kg | 1.85 m³ | Mining, Quarrying & Heavy Earthmoving |
| Sany SY500H | 50,000 kg | 2.2 - 2.5 m³ | Large Scale Open-Pit Mining |
Ideal Applications for the SY335H
The robust specifications of this machine make it the preferred asset for:
Quarrying Operations: Breaking and loading blasted rock and aggregates.
Open-Pit Mining: Efficient removal of overburden and loading of articulated dump trucks.
Major Infrastructure: Deep excavation for dams, high-speed rail foundations, and highways.
Demolition: Handling heavy debris and dismantling reinforced concrete structures.
Technical Specifications
The following data details the precise capabilities of the Brand New Sany Sy335H Excavator.
| Dimensions & Weight | |
|---|---|
| Weight of Complete Machine | 32,500 kg |
| Total Length (Transportation) | 10,667 mm |
| Overall Width | 3,190 mm |
| Total Height (Transportation) | 3,470 mm |
| Total Height (Top of Cab) | 3,280 mm |
| Upper Width | 3,175 mm |
| Standard Shoe Width | 600 mm |
| Gauge | 2,590 mm |
| Minimum Ground Clearance | 550 mm |
| Tail Radius of Gyration | 3,315 mm |
| Track Length | 5,040 mm |
| Ground Contact Length of Track | 4,134 mm |
| Performance Parameters | |
| Rated Power / Speed | 212 kW / 2000 rpm |
| Bucket Capacity | 1.85 m³ |
| Travel Speed (High/Low) | 5.4 / 3.2 km/h |
| Swing Speed | 9.0 rpm |
| Gradeability | 0.7 (approx. 35°) |
| Ground Specific Pressure | 60.3 kPa |
| Bucket Digging Force | 204 kN |
| Arm Digging Force | 153 kN |
| Scope of Work (Working Range) | |
| Maximum Digging Height | 10,497 mm |
| Maximum Unloading Height | 7,359 mm |
| Maximum Excavation Depth | 6,815 mm |
| Maximum Digging Distance | 10,870 mm |
| Max Height at Min Radius of Gyration | 8,405 mm |
| Minimum Radius of Gyration | 4,000 mm |
Engineering & Design Features

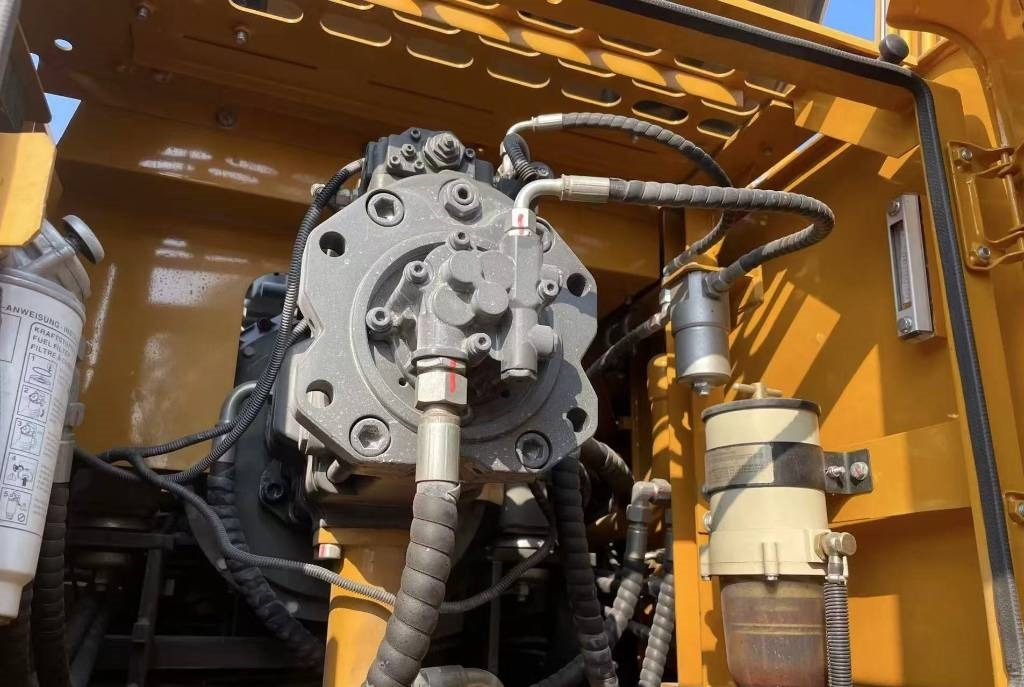

High-Output Powertrain
The SY335H is driven by a high-performance engine delivering 212kW at 2000rpm. This powertrain is tuned for high torque at lower revolutions, ensuring that the machine maintains peak digging power even when encountering heavy resistance from rocky soil.

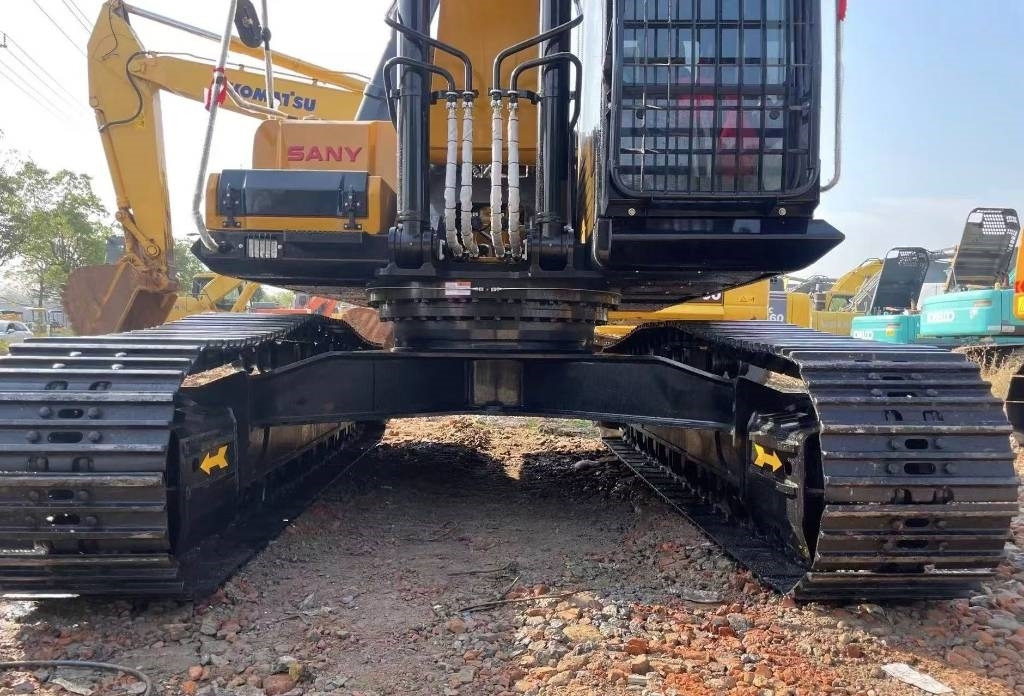

Reinforced Structure
The chassis utilizes an X-frame design with high-strength steel. The track length of 5,040mm ensures exceptional stability, while the 600mm triple-grouser shoes provide the necessary traction to climb grades of up to 70% (0.7 gradeability).

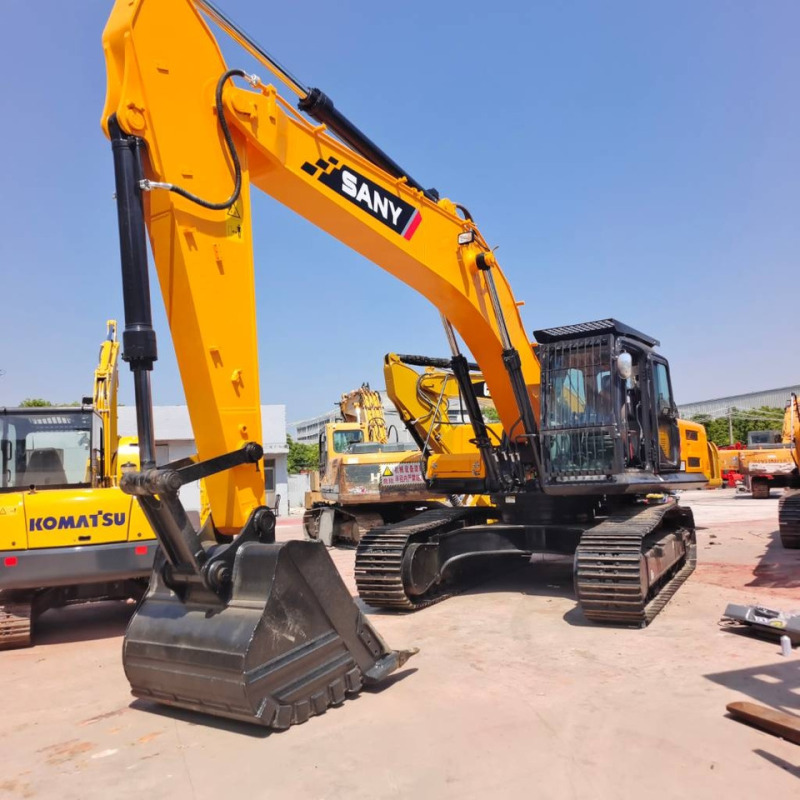

Large Capacity Bucket
Standardized with a 1.85m³ bucket, the SY335H is designed to move more material per pass. The bucket features reinforced wear plates and specialized teeth to resist abrasion, significantly extending the service life of the attachment.
Operational Value
How do these technical features translate into on-site advantages?
| Feature | Operational Benefit |
|---|---|
| 204kN Digging Force | Allows for the efficient breaking of hard ground without the need for blasting or rippers in some cases. |
| Long Reach (10,870mm) | Reduces the need to constantly reposition the machine, saving travel time and fuel. |
| High Unloading Height (7,359mm) | Facilitates easy loading of high-sided mining trucks, streamlining the logistics chain. |
| Comfortable Cabin | Reduces user fatigue through ergonomic controls and excellent visibility, maintaining safety standards. |
Selecting a Trusted Machinery Partner
Importing heavy equipment like the SY335H requires a supplier with logistical and technical expertise. Consider the following:
Verification Capabilities: A reliable supplier will provide detailed photos, videos, and serial numbers of the specific unit before purchase.
Shipping Experience: The partner must be experienced in handling "Out of Gauge" (OOG) cargo via Flat Rack or Bulk vessels.
Parts Supply Chain: Ensure the supplier can provide a maintenance kit (filters, seals) to cover the initial operation period.
Transparent Terms: Look for clear pricing (FOB/CIF) and secure payment options to protect your capital.
Why Partner with ZW Group?
ZW Group is a dedicated exporter of premium Chinese construction machinery. We bridge the gap between top-tier manufacturers and global infrastructure projects, ensuring you receive the right equipment for your needs.
Every Brand New Sany Sy335H Excavator we ship undergoes a rigorous pre-shipment inspection. Our logistics team handles the complex dismantling (if necessary), lashing, and customs documentation, ensuring your asset arrives at your port safe, secure, and ready for deployment.
Frequently Asked Questions
1. What is the standard bucket size for the SY335H?
The machine comes equipped with a 1.85m³ heavy-duty bucket, which is ideal for general mining and earthmoving tasks.
2. Can the track shoes be customized?
The standard shoe width is 600mm. However, depending on your terrain (e.g., swamp or soft ground), wider shoes may be available upon request to reduce ground pressure.
3. How is a 32.5-ton machine shipped?
Due to its width (3.19m) and weight, the SY335H is typically shipped via a Flat Rack container or RORO (Roll-on/Roll-off) vessel.
4. What is the travel speed of the SY335H?
The excavator features two travel speeds: a high speed of 5.4 km/h for moving across the site and a low speed of 3.2 km/h for climbing or maneuvering in tight spaces.
5. Do you supply other brands of excavators?
Yes, ZW Group supplies new units from Sany, XCMG, and others, as well as a wide range of used excavators from brands like CAT, Komatsu, and Hitachi.
Maximize Your Mining Productivity Today
The Brand New Sany Sy335H Excavator is a powerhouse built for durability and high output. It is the intelligent choice for contractors who demand reliability in the toughest conditions.
ZW Group is your comprehensive source for heavy machinery. We offer New Excavators from leading brands including XCMG, Sany, SDLG, Liugong, and Develon.
For those seeking cost-effective alternatives, we maintain a robust inventory of Used Excavators from global giants:
Used CAT, Komatsu, and Volvo Excavators
Used Doosan, Hyundai, and Kobelco Excavators
Used Hitachi and Sany Excavators
Our portfolio extends to Bulldozers, Wheel Loaders, Road Rollers, Motor Graders, Forklifts, and Cranes (New and Used). Additionally, we supply a full fleet of heavy transport vehicles, including Dump Trucks, Tractor Trucks, Oil Tankers, Water Tankers, Mixer Trucks, and Truck-Mounted Cranes.
Ready to upgrade your fleet? Get a quote from ZW Group today.
