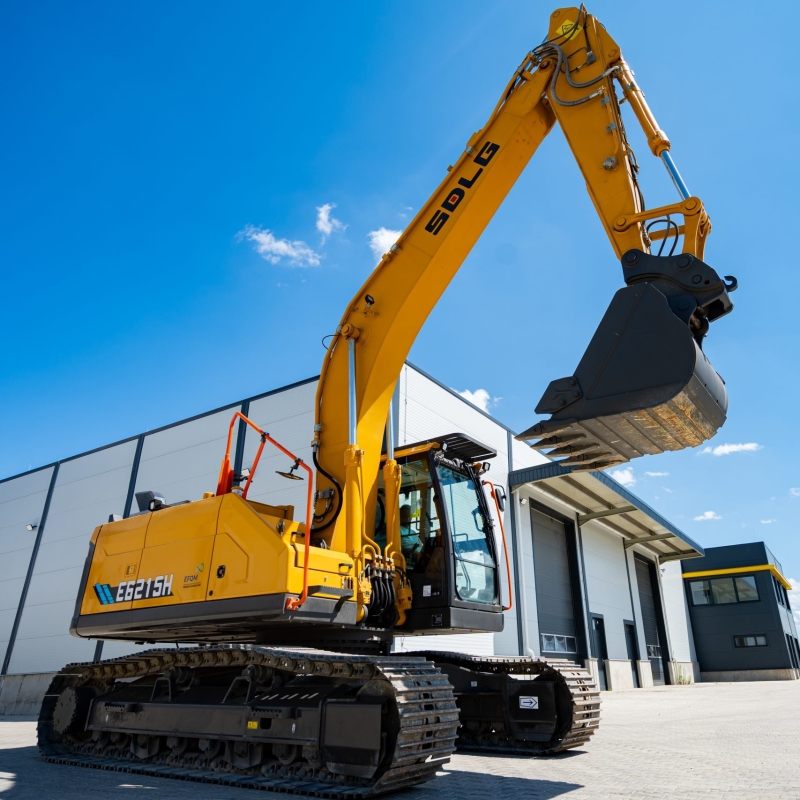

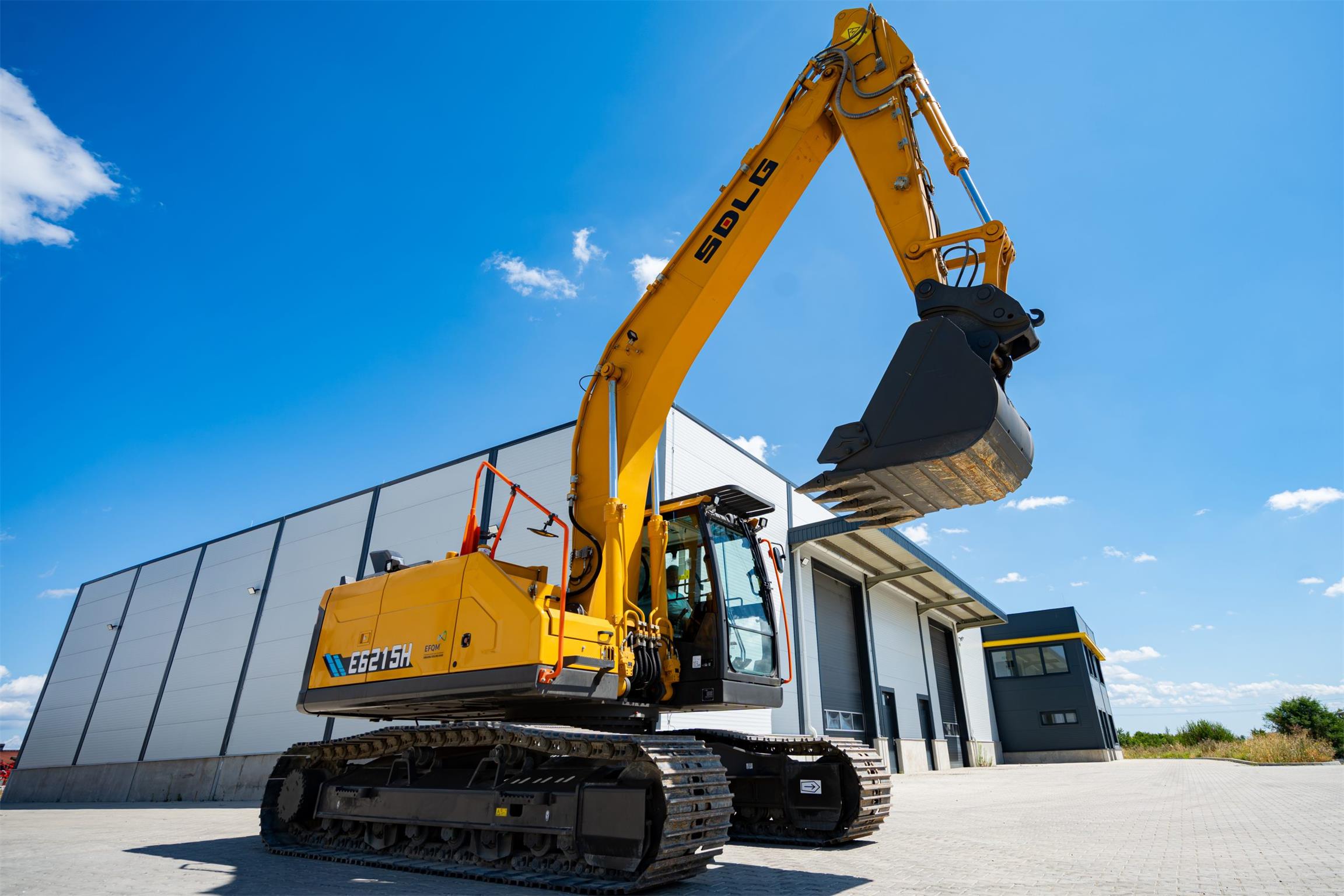

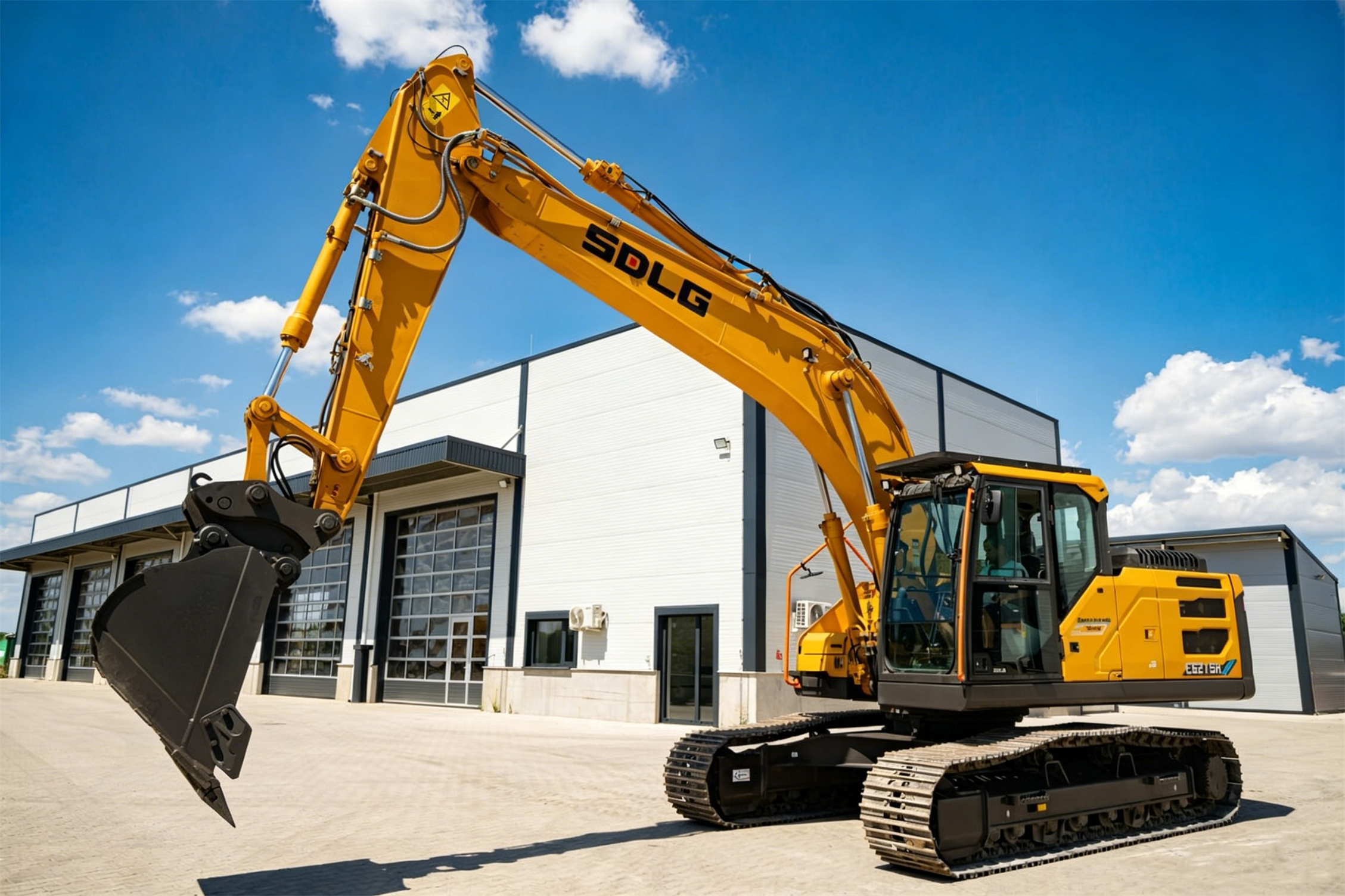

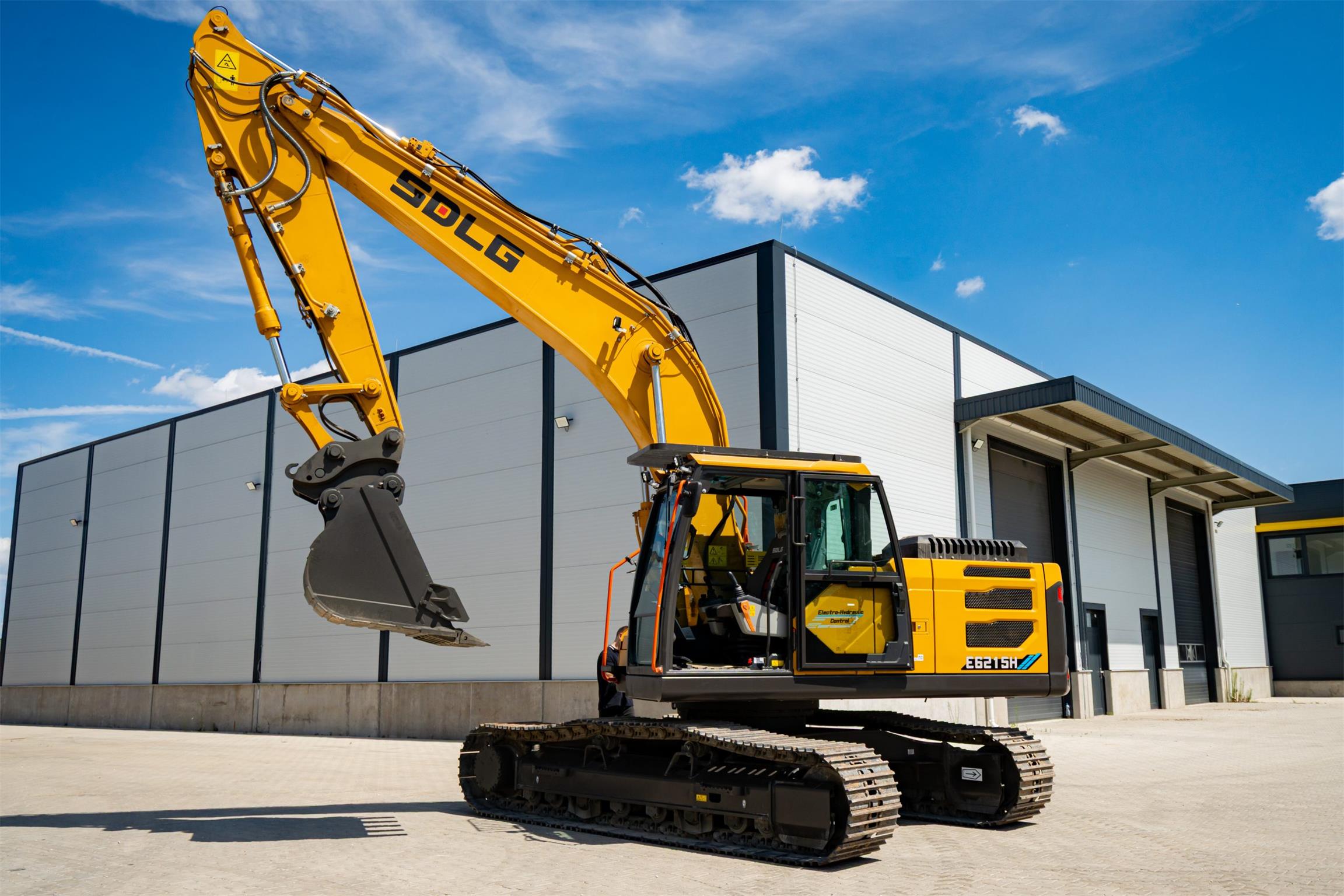

Brand New SDLG E6215H Excavator
The Brand New SDLG E6215H Excavator provides a robust answer to challenging excavation challenges, heavy soil moving, and precise trenching requirements. Engineered with a balanced hydraulic architecture and high-strength framing, this machinery ensures consistent asset readiness and optimized operation schedules.
- SDLG
- China
- Information
Brand New SDLG E6215H Excavator: Premium Earthmoving Machinery for Heavy Infrastructure Projects
International fleet owners and procurement managers require dependable machinery capable of managing rigorous site demands. The Brand New SDLG E6215H Excavator provides a robust answer to challenging excavation challenges, heavy soil moving, and precise trenching requirements. Engineered with a balanced hydraulic architecture and high-strength framing, this machinery ensures consistent asset readiness and optimized operation schedules.
Technical Parameters and Machine Specifications
Review the detailed mechanical configuration below to understand how this medium-sized platform fits your project specifications. Every metric represents precise manufacturing standards aimed at maximizing equipment endurance and structural stabilization.
| Technical Parameter | Specification Metric |
|---|---|
| Operating Weight (kg) | 21500 |
| Bucket capacity (m³) | 1.1 |
| Rated power (kW) | 127 |
| Overall width (mm) | 2990 |
| Overall height (mm) | 2940 |
| Overall length (mm) | 9720 |
| Engine model | BF6M2012-17T2 |
| Max. excavation force (kN) | 140.1 |
| Swing speed (r/min) | 12.1 |
| Traveling speed (km/h) | 3.5/5.7 |
| Max. digging radius (mm) | 9940 |
| Max. digging depth (mm) | 6730 |
| Max. digging height (mm) | 6650 |
| Fuel tank capacity (L) | 390 |
Advanced Fuel Economy and Powertrain Optimization

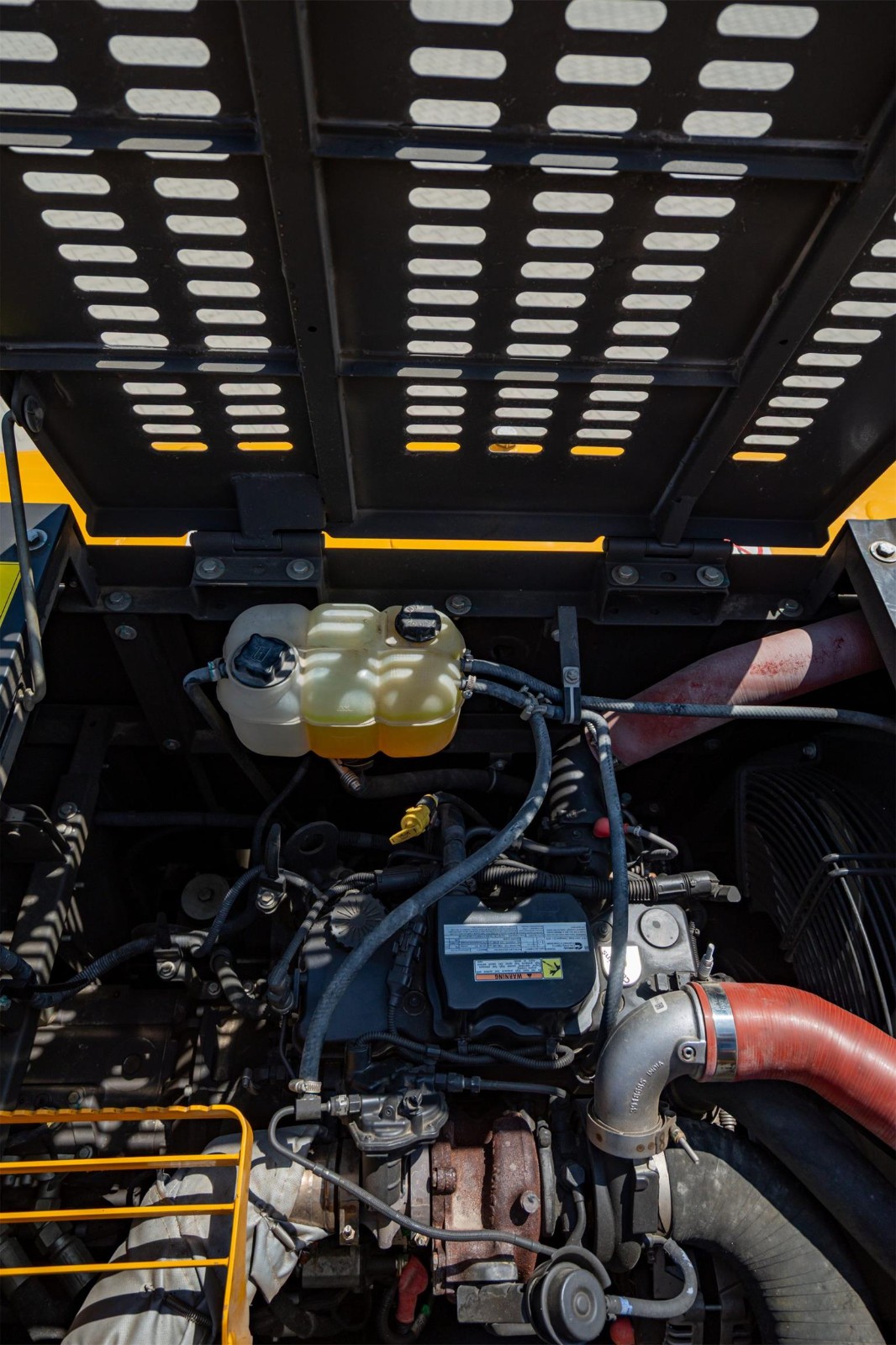

High-Performance BF6M2012-17T2 Engine Engineering
Operating cost control represents a major consideration for commercial contractors and project planners. The inclusion of the premium BF6M2012-17T2 engine architecture provides optimal combustion control and power delivery. This powertrain maintains a rated output of 127 kW while matching hydraulic loads perfectly to limit unneeded fuel dissipation.
Key Advantages for Fuel Resource Management
A substantial 390 L fuel tank capacity facilitates uninterrupted operational cycles across multiple shifts.
The electronic governor system quickly adjusts machine output based on variable substrate resistance.
Advanced air-to-air cooling systems lower combustion chamber thermal loads for high fluid efficiency.
Structural Durability and Extreme Loading Capacity
Reinforced Lower Frame and Crawler System Architecture
Harsh site environments require equipment that resists heavy structural twisting and impact stresses. The Brand New SDLG E6215H Excavator features a heavily reinforced X-shaped lower frame that disperses energy evenly. Thicker steel plates on the upper structure and boom joints reduce micro-fissure development during deep digging projects.
High Strength Field Specifications
A 21500 kg total operating weight provides reliable machine anchoring when tackling dense geological layers.
The standard 1.1 cubic meter bucket capacity is reinforced with side cutters and bottom wear-strips.
A powerful maximum excavation force of 140.1 kN enables efficient breakthroughs in compacted soils.
Low Maintenance Requirements and Fleet Longevity
Ground-Level Maintenance Design and Component Access
Minimizing routine servicing intervals ensures high machine availability and lowers general fleet operating expenses. Engineers configured the internal layout to allow straightforward access to primary filtration elements from the ground. Consequently, site technicians complete daily inspections rapidly without risking equipment contamination or prolonged project delays.
Logistical and Maintenance Advantages
Centralized grease injection taps simplify the lubrication process across all high-friction joints.
Wide-opening side panels expose the cooling radiator block for easy cleaning and dust extraction.
A robust 3.5/5.7 km/h traveling speed dynamic lets the machine change site positions quickly.
Frequently Asked Questions Regarding SDLG E6215H
What are the maximum reaching limits of the excavator arm?
The system offers a maximum digging radius of 9940 mm, paired with a maximum digging depth of 6730 mm. Additionally, the machine delivers a maximum digging height of 6650 mm, allowing smooth loading into high-sided haulers.
How stable is the upper platform during rotating cycles?
With a dynamic swing speed of 12.1 revolutions per minute, the machine ensures fast cycles without sacrificing stability. The high torque slewing bearing prevents unintended alignment shifts during heavy loading operations on sloped terrain.
