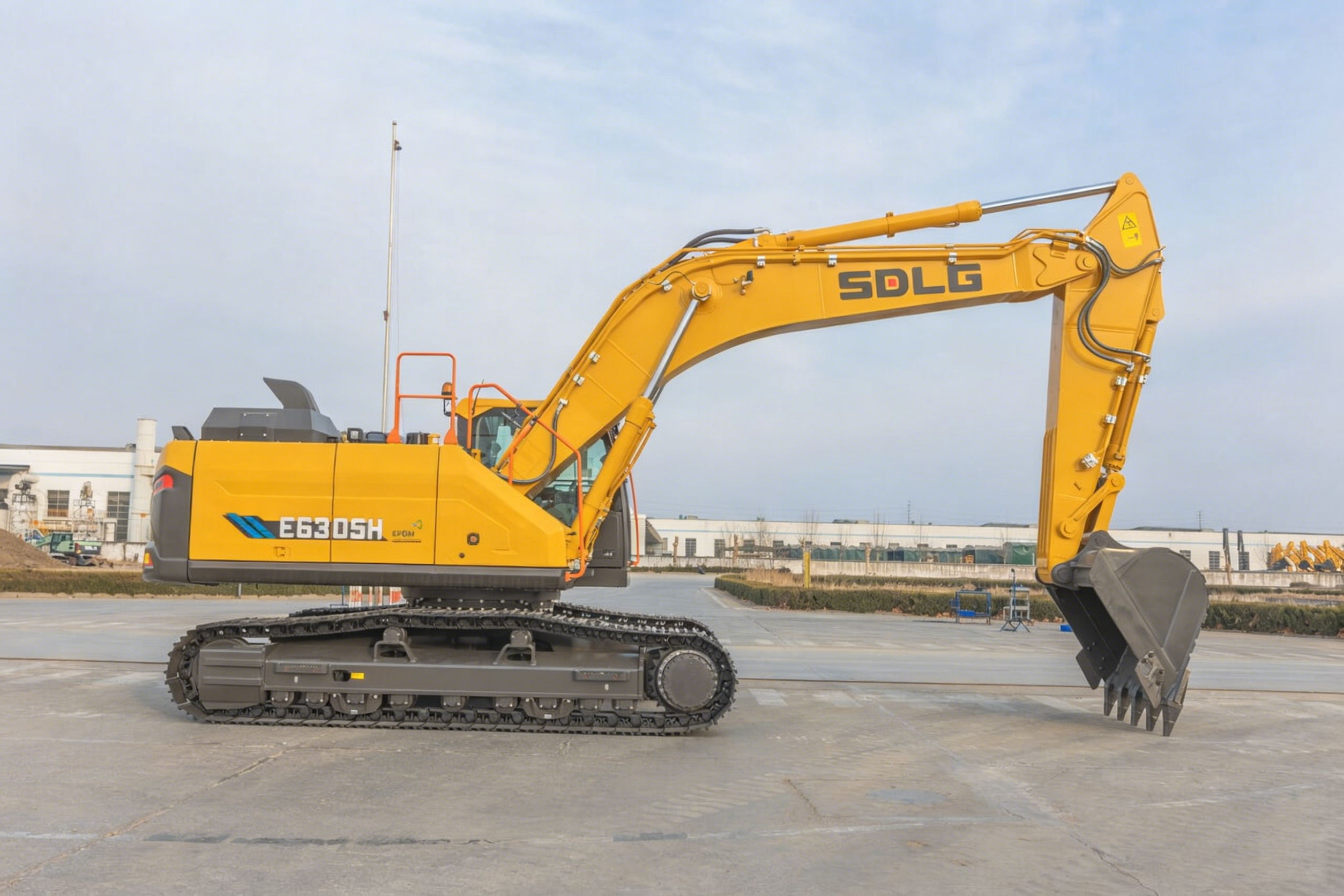

Brand New SDLG E6305H Excavator
The Brand New SDLG E6305H Excavator delivers optimal performance under demanding site conditions. This 32-ton crawler unit provides high digging force and excellent fuel economy for global buyers.
- SDLG
- China
- Information

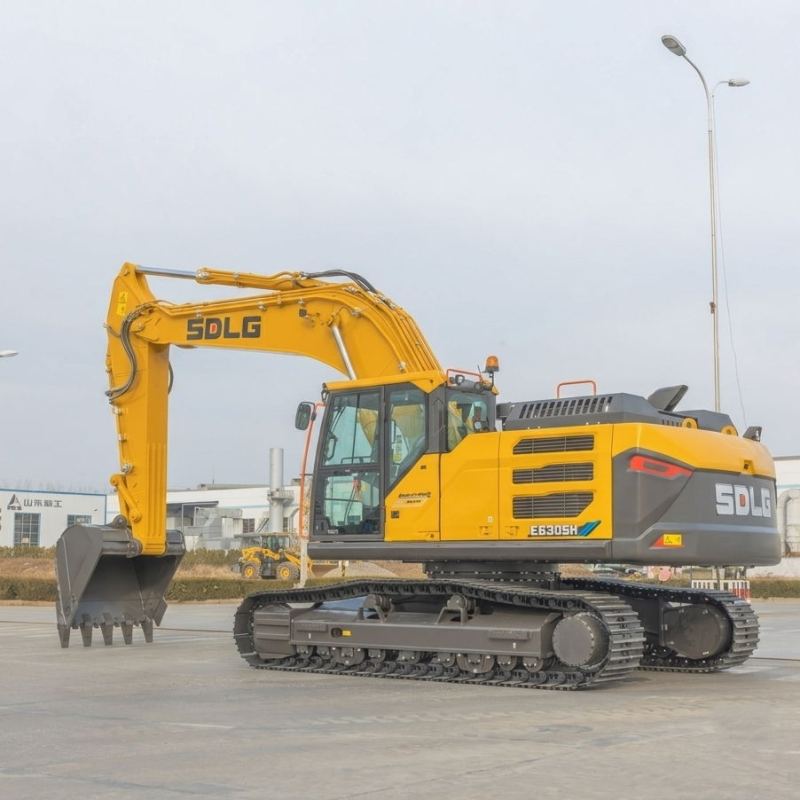

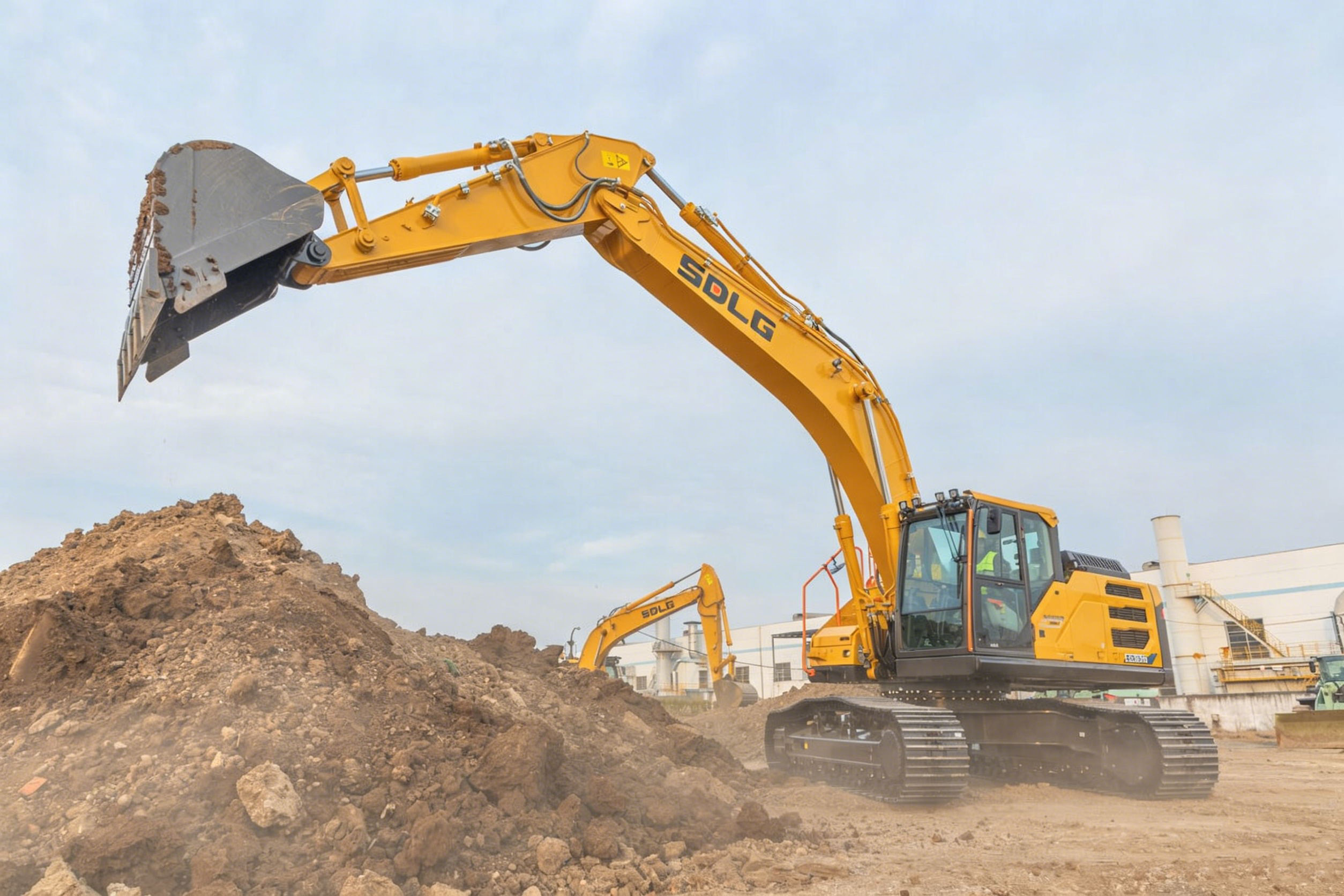

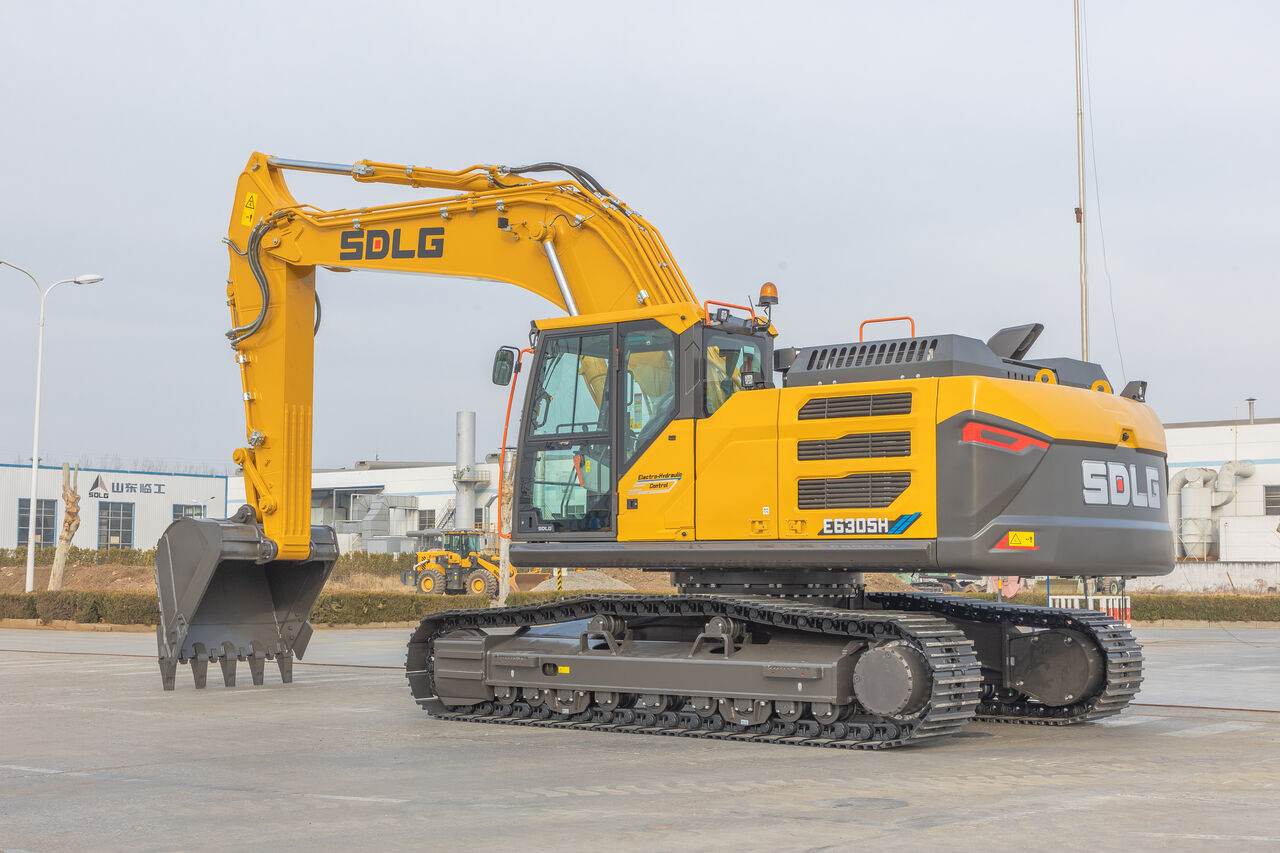

Brand New SDLG E6305H Excavator: High-Efficiency Heavy Machinery for Large-Scale Projects
Large-scale earthmoving projects demand reliable heavy machinery to maintain strict project schedules. The Brand New SDLG E6305H Excavator delivers optimal performance under demanding site conditions. This 32-ton crawler unit provides high digging force and excellent fuel economy for global buyers.
Procurement managers require durable equipment that reduces operational delays and maximizes project speed. This heavy-duty equipment handles dense soils, rock handling, and massive material movements easily. ZW Group offers this premium machinery with verified quality control standards for international shipping.
Superior Fuel Economy and Advanced Engine Efficiency

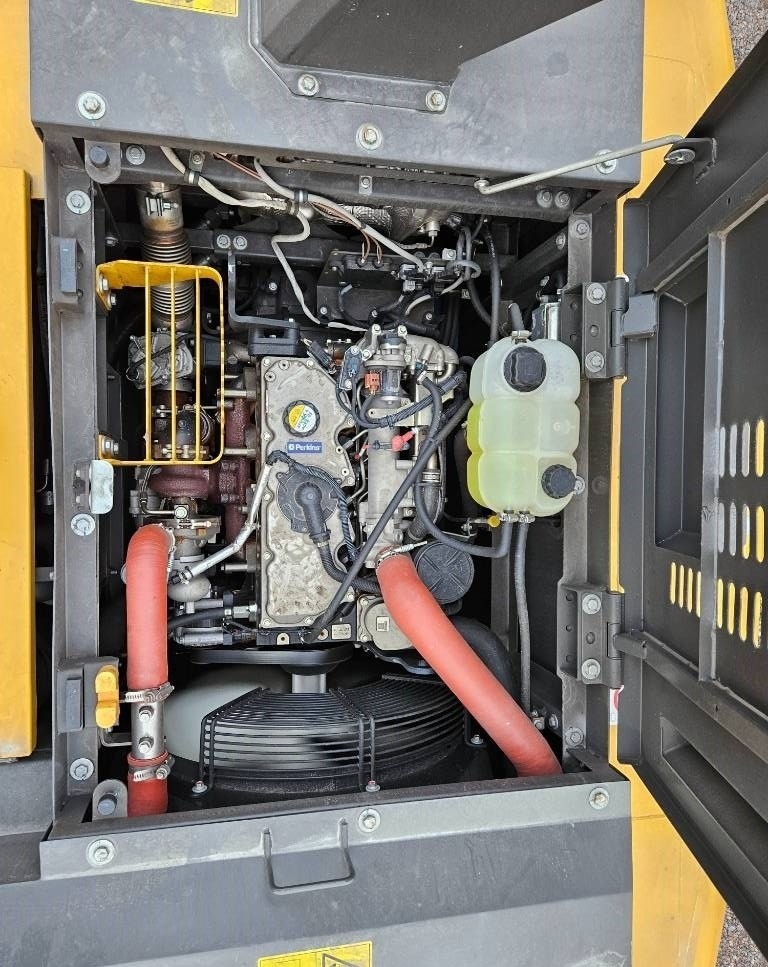

Equipped with a powerful 1206J-E70TTA engine, this model optimizes fuel utilization across varying load conditions. The electronic control system regulates fuel delivery precisely to minimize unnecessary energy loss. Fleet owners benefit from lower operational expenses during extended earthmoving projects.
High-pressure common rail system ensures complete fuel combustion for daily operations.
Eco-mode settings allow personnel to adjust power output according to material density.
Optimized engine speed matches hydraulic flow perfectly to prevent energy dissipation.
Robust Structural Durability and High Load Capacity
The heavy-duty undercarriage extends up to 4850 mm to guarantee stability during deep excavation tasks. Reinforced booms measuring 6200 mm ensure long-term resistance to high stress and structural fatigue. A massive 1.6 m³ bucket capacity maximizes material handling volumes per cycle to accelerate delivery timelines.
Thick high-strength steel plates resist torsional forces during heavy rock excavation.
Robust track rollers and durable idlers ensure long service life in harsh environments.
Reinforced arm structures provide a maximum digging force of 144.5 kN to pierce hard surfaces.
Low Maintenance Costs and Simplified Serviceability
Centralized lubrication points allow fleet maintenance crews to complete routine checkups quickly and reduce downtime. High-quality hydraulic filters prolong component lifespans and protect internal valves from contamination. ZW Group guarantees reliable spare parts availability to minimize lifetime maintenance expenditures.
Ground-level access to vital engine compartments simplifies routine filter replacements.
Extended service intervals reduce recurring costs for project contractors managing tight margins.

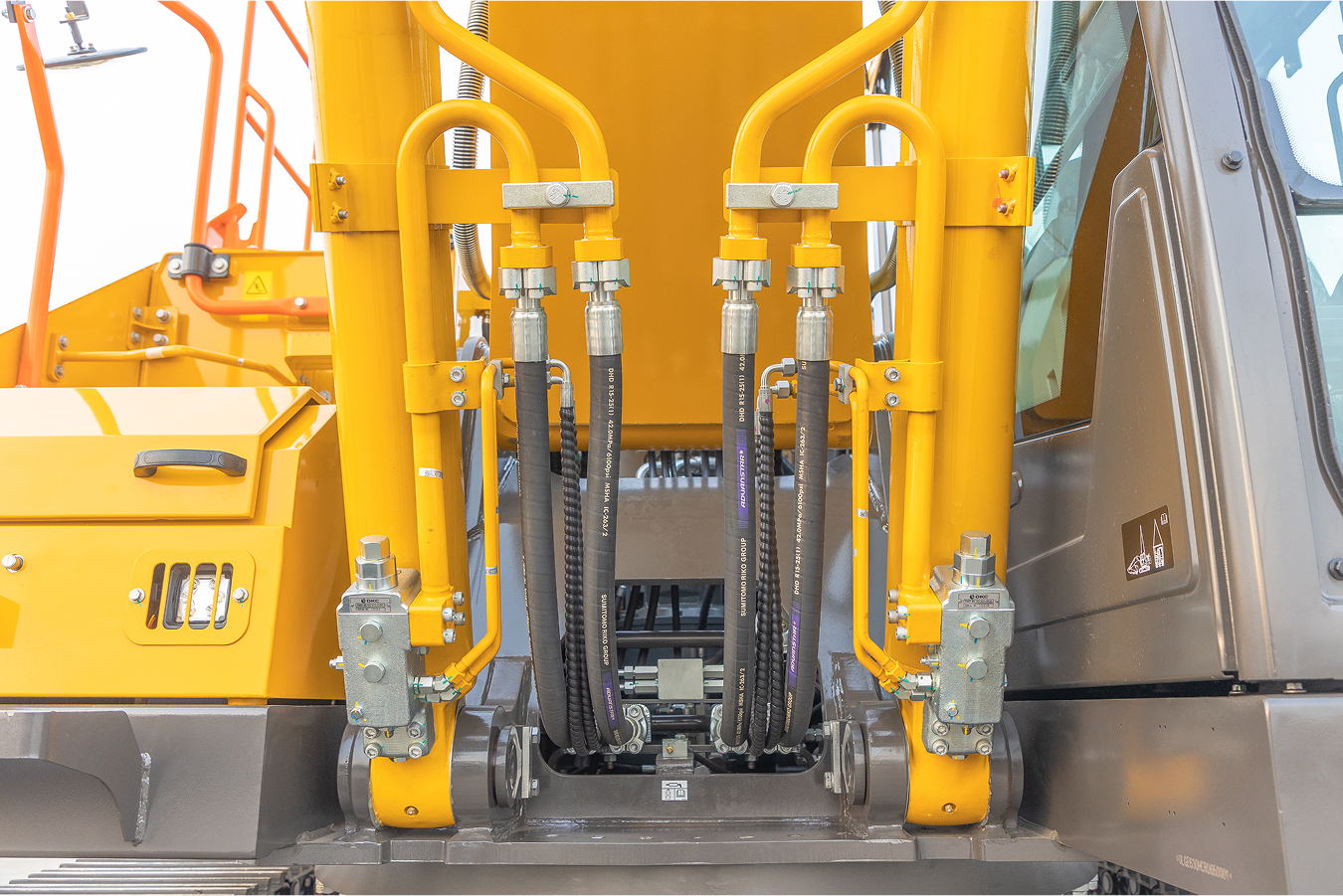

Durable hydraulic hoses prevent fluid leaks and maintain stable systemic pressures over time.
Advanced Hydraulic Control and Fleet Productivity
The dual-pump system provides a capacity of 2*234+27 L/min for smooth simultaneous movements during operation. Main relief valve pressure settings reach up to 355 bar to handle dense materials and steep slopes easily. The system allows personnel to execute precise grading and trenching actions smoothly without loss of momentum.
Regeneration valves channel hydraulic oil efficiently to accelerate arm movement cycles.
Excellent gradeability of 35 degrees allows the crawler unit to climb rugged site terrains safely.
High swing speeds of 10.7 r/min maximize hourly material loading volumes for haulage fleets.
Technical Parameters
| Parameter Description | Specification Value (Metric / Imperial) |
|---|---|
| Operating weight | 32,200 kg (70,988 lbs) |
| Rated power | 225 kW (301.7 hp) @ 2200 rpm |
| Engine Model | 1206J-E70TTA |
| Bucket capacity | 1.6 m³ (2.1 yd³) |
| Boom length | 6,200 mm (20' 4.1\") |
| Arm length | 3,050 mm (10' 0.1\") |
| Track width (M) | 600 mm (23.6\") |
| Undercarriage length (K) | 4,850 mm (15' 10.9\") |
| Max. digging reach (A) | 10,710 mm (35' 1.7\") |
| Max. digging reach on ground (B) | 10,510 mm (34' 5.8\") |
| Max. cutting height (C) | 10,390 mm (34' 1.1\") |
| Max. dumping height (D) | 7,320 mm (24' 0.2\") |
| Max. digging depth (E) | 7,150 mm (23' 5.5\") |
| Max. digging depth (horizontal 8ft) (F) | 6,970 mm (22' 10.4\") |
| Max. vertical wall digging depth (G) | 5,940 mm (19' 5.9\") |
| Tail swing radius (I) | 3,140 mm (10' 3.6\") |
| Min. front swing radius (J) | 3,950 mm (12' 11.5\") |
| Fuel tank capacity | 510 L (134.7 gal) |
| Ground pressure | 58 kPa (8.4 psi) |
| Swing speed | 10.7 r/min |
| Gradeability | 35° |
| Travel speed (High / Low) | 5.7 km/h (3.5 mph) / 3.5 km/h (2.2 mph) |
| Max. digging force of arm | 144.5 kN (32,485 lbf) |
| Max. digging force of bucket | 205.5 kN (46,198 lbf) |
| Main relief set pressure | 340 bar (4,930 psi) / 355 bar (5,148 psi) |
| Pump capacity | 2*234 + 27 L/min (2*61.8 + 7.1 gal/min) |
| Displacement | 7,010 ml (427.8 in³) |
Frequently Asked Questions
What are the core advantages of the 1206J-E70TTA engine?
This engine configuration offers exceptional high-torque output at low rotational speeds, lowering overall fuel needs. It aligns perfectly with strict international emissions compliance frameworks while preserving rapid throttle response.
How does the dual-pump hydraulic system enhance output?
By distributing hydraulic flow across dual independent main pumps, the system ensures multi-function synergy. Boom raises and bucket curls occur concurrently without stalling, improving material movement efficiency.
Is this machinery suitable for extreme high-impact conditions?
Yes, the 58 kPa ground pressure and heavy-duty 600 mm track pads provide traction on loose soils and rocky ground. The structural steel components undergo ultrasonic validation testing to ensure flaw-free durability under high strain.
