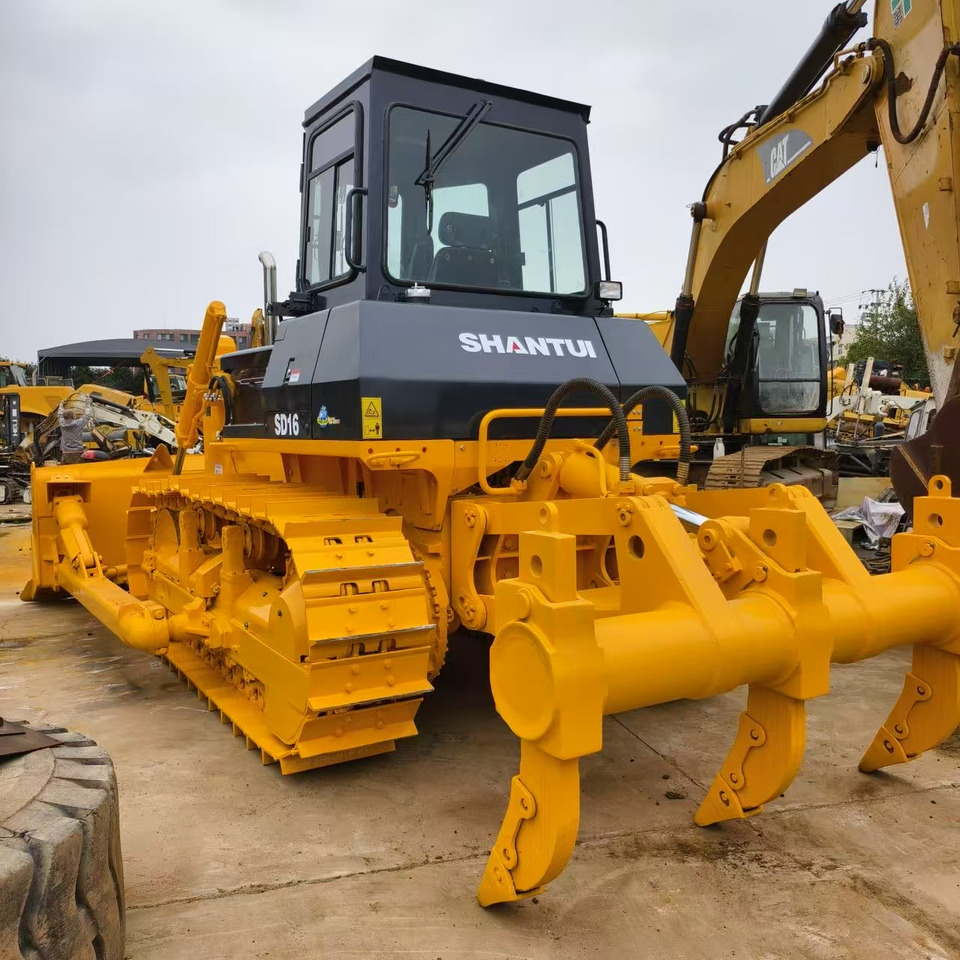

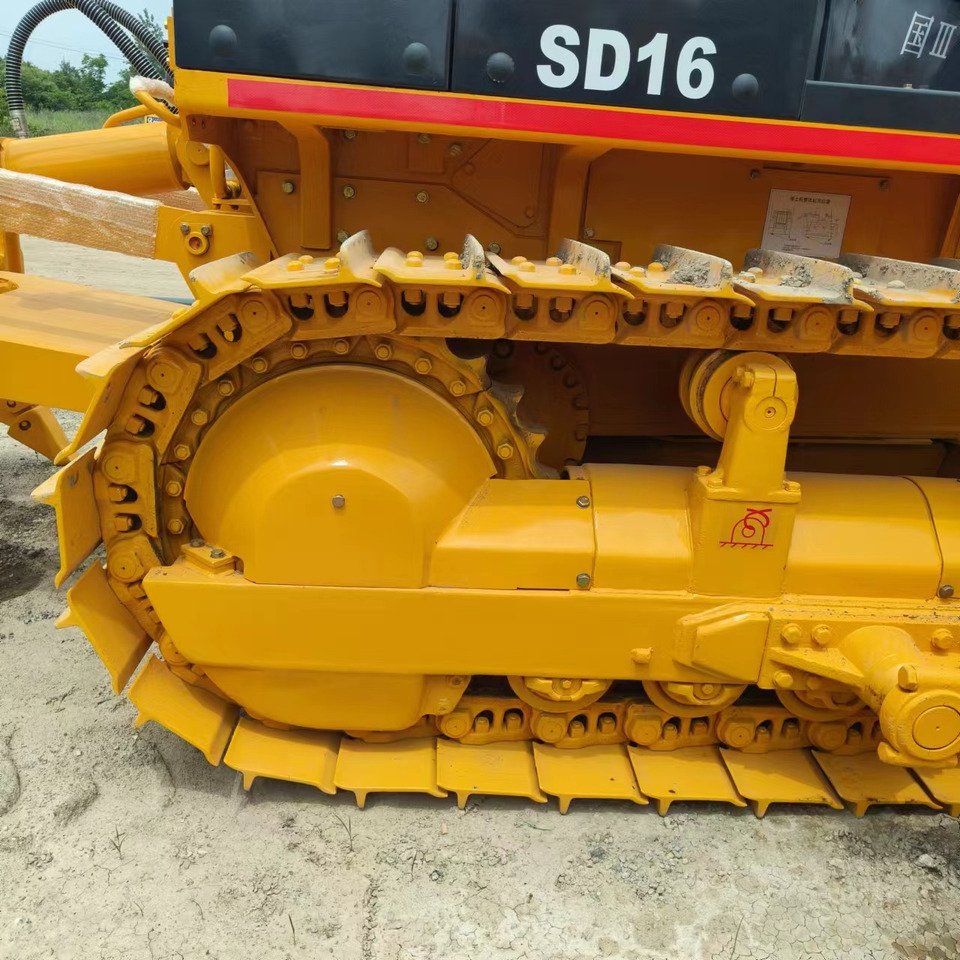

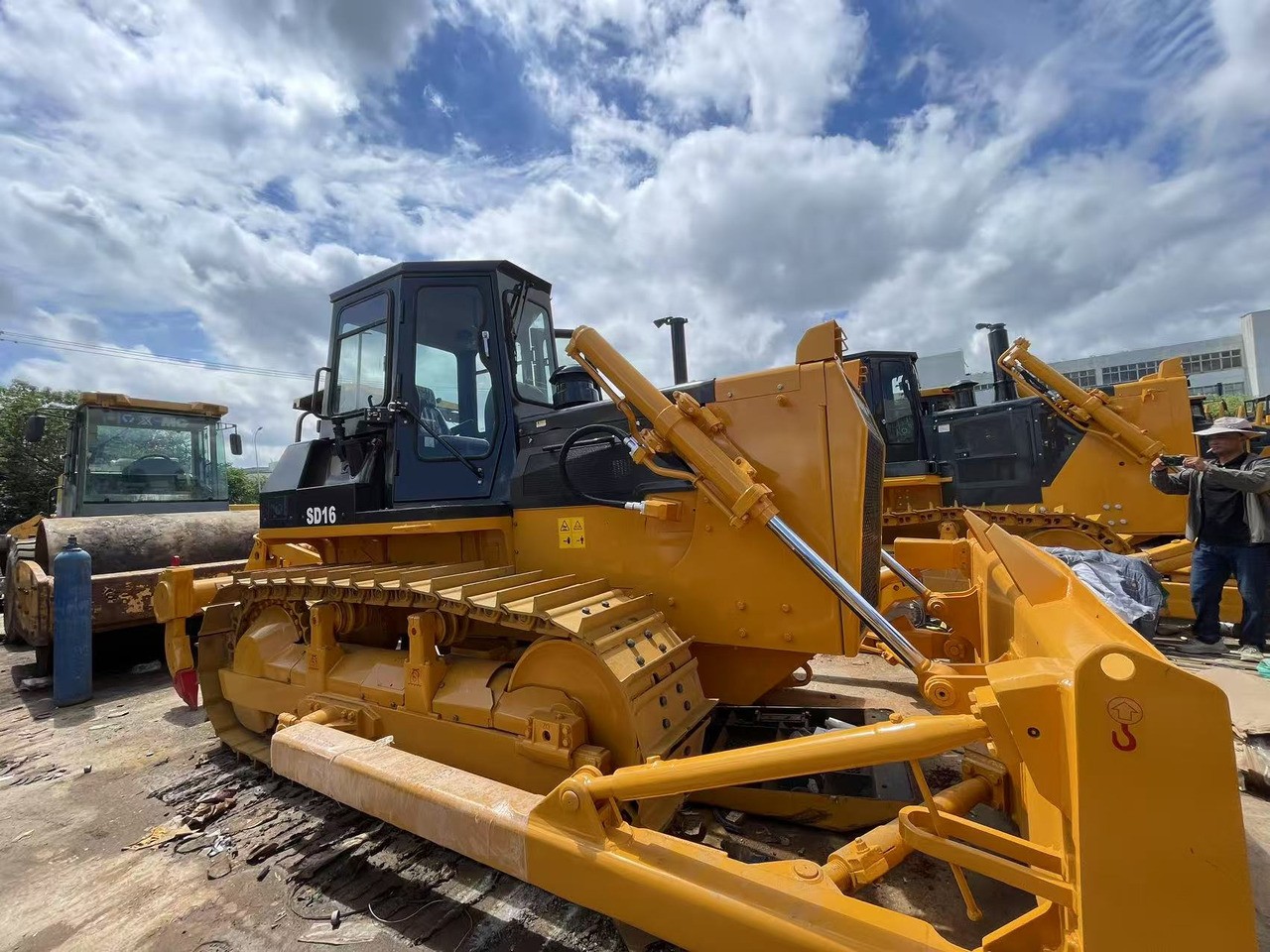

Brand New Shantui SD16 Bulldozer
Overall weight(kg): 16400-18460
Engine brand: WEICHAI WD10G178E25
Rated power/rated speed(kW/rpm): 131/1850
The Brand New Shantui SD16 Bulldozer is a highly reliable, mid-sized hydraulic crawler machine engineered for grading, clearing, trenching, and utility tasks in construction and civil engineering projects.
- Shantui
- China
- 15-20 days
- 10000 Unit/Month
- Information

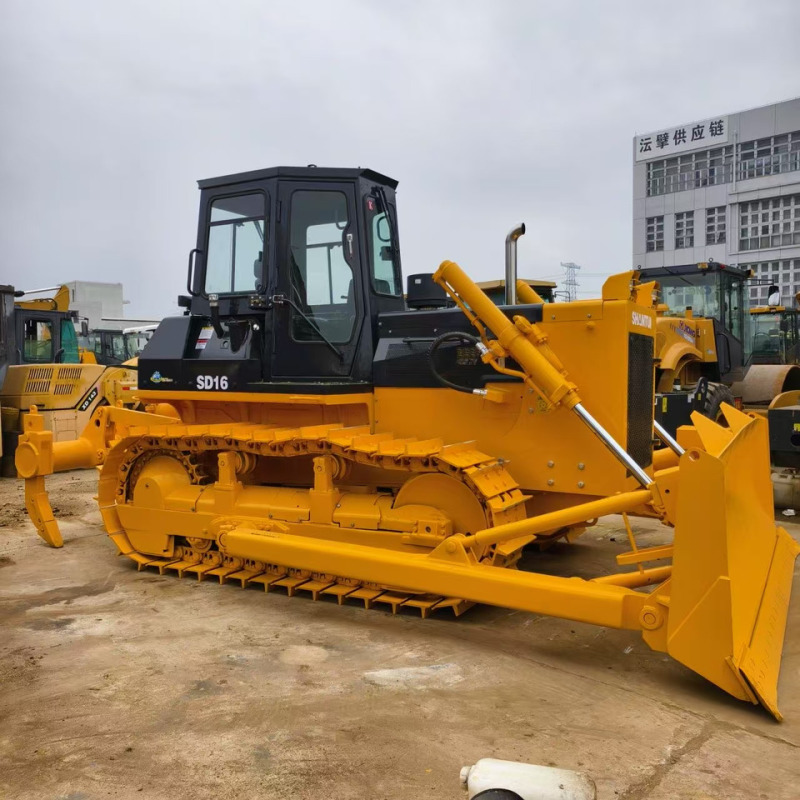

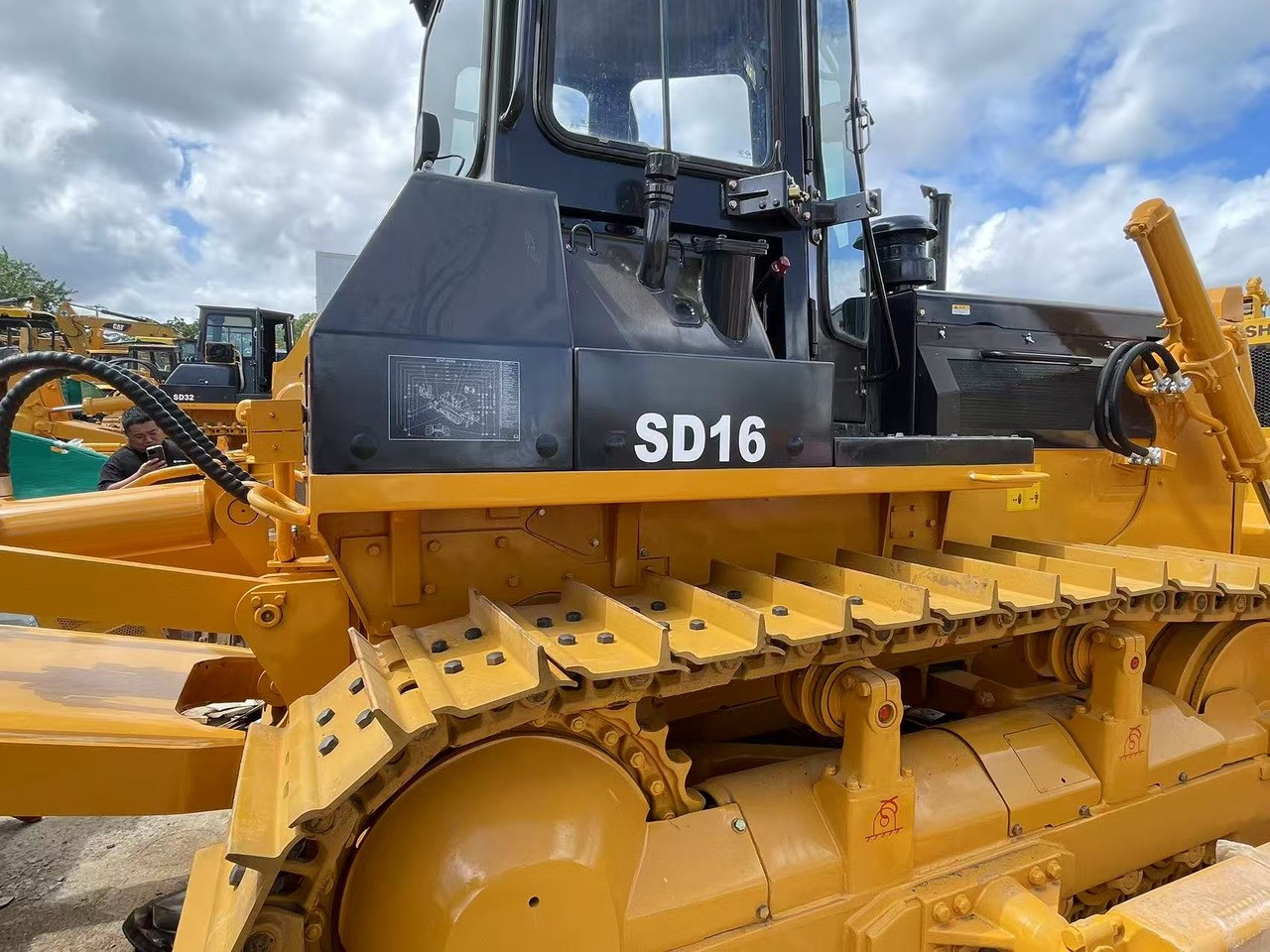

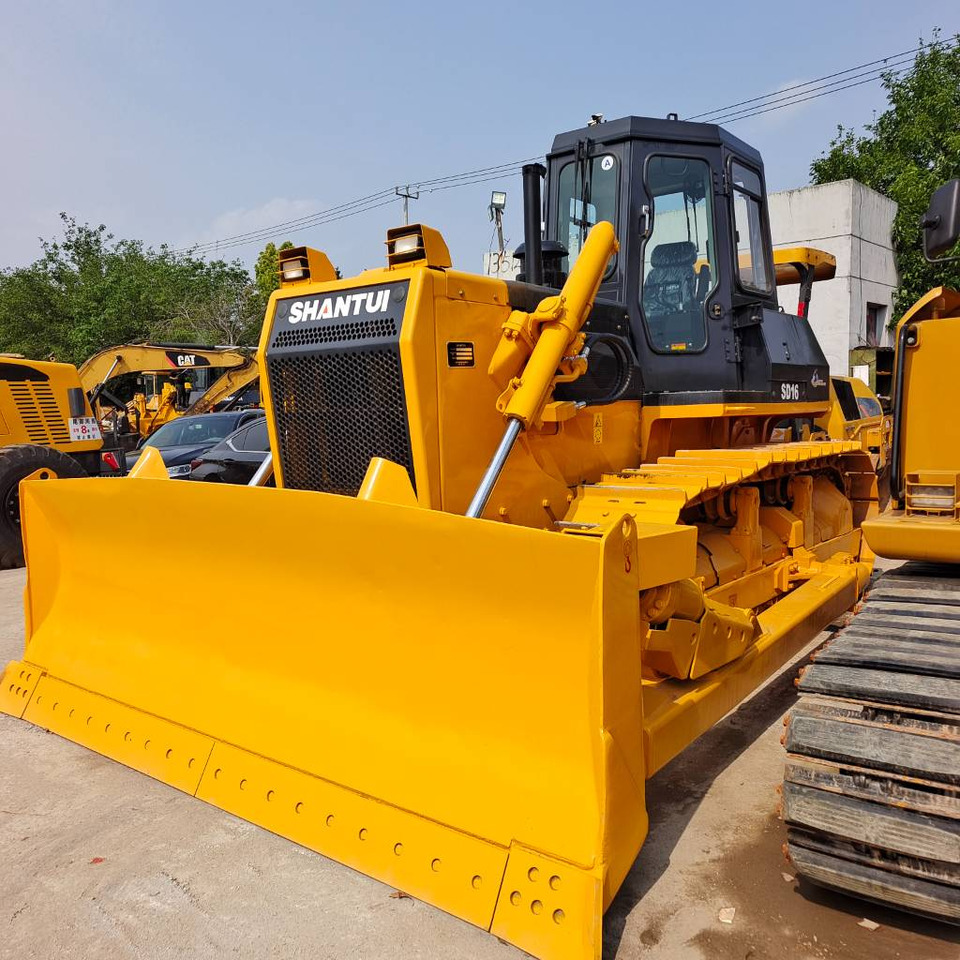

Brand New Shantui SD16 Bulldozer: The Versatile 16-Ton Dozer
What is the Brand New Shantui SD16 Bulldozer?
The Brand New Shantui SD16 Bulldozer is a highly reliable, mid-sized hydraulic crawler machine engineered for grading, clearing, trenching, and utility tasks in construction and civil engineering projects.
Why Choose the Shantui SD16 for Mid-Scale Projects?
The SD16 is renowned for its excellent power-to-weight ratio. With a 131kW Weichai engine driving a 16.4-ton machine, it offers formidable pushing force for its class. This efficiency means it can handle heavy materials like hard-packed soil and gravel effectively while maintaining lower running costs than heavier counterparts.
Furthermore, the SD16 employs an advanced hydraulic steering and braking system, which ensures smooth maneuverability. The proven hydrostatic system minimizes mechanical friction, contributing to reduced component wear and extending the overall operational life of the powertrain.
Comparing Shantui Crawler Dozer Models
The SD16 occupies the versatile middle ground of the Shantui lineup, balancing compactness with substantial power, unlike its larger or smaller siblings.
| Model | Overall Weight | Rated Power | Primary Application |
|---|---|---|---|
| Shantui SD13 | 14,600 kg | 102 kW | Light Grading, Residential Infrastructure |
| Shantui SD16 | 16,400 kg | 131 kW | Medium Road Construction, Utility & Forestry |

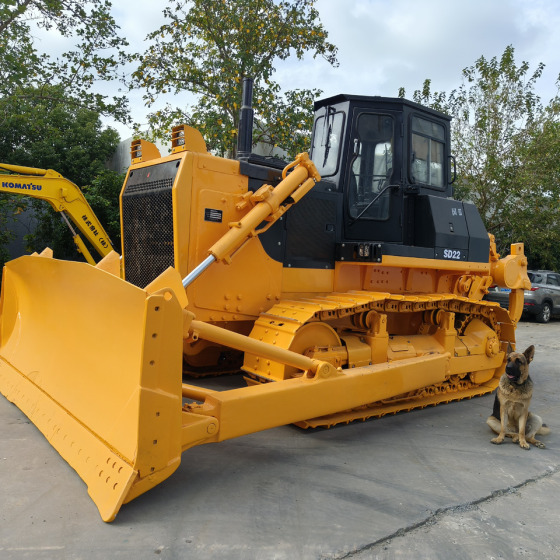

| Shantui SD22 | 23,450 kg | 175 kW | Heavy Earthmoving, Quarrying & Mining |
The SD16 is Built for These Sectors:
The versatility and size of the Brand New Shantui SD16 Bulldozer make it indispensable for:
-
Small to Medium Road Contractors: For preparing sub-base layers and final grading before paving.
-
Land Reclamation & Clearing: Efficiently moving topsoil and clearing brush from development sites.
-
Municipal Utility Departments: Ideal for compact site preparation and managing solid waste facilities.
-
Agricultural Land Development: Used for terracing and creating large-scale irrigation channels.
Technical Specifications
Review the detailed technical data to ensure the Brand New Shantui SD16 Bulldozer meets your exacting project requirements.
| Parameter | SD16 Specification |
|---|---|
| Overall Weight | 16,400 kg |
| Engine Brand | WEICHAI WD10G178E25 |
| Rated Power / Speed | 131 kW / 1850 rpm |
| Machine External Dimensions | 5140 x 3455 x 3032 mm |
| Track Center Distance | 1880 mm |

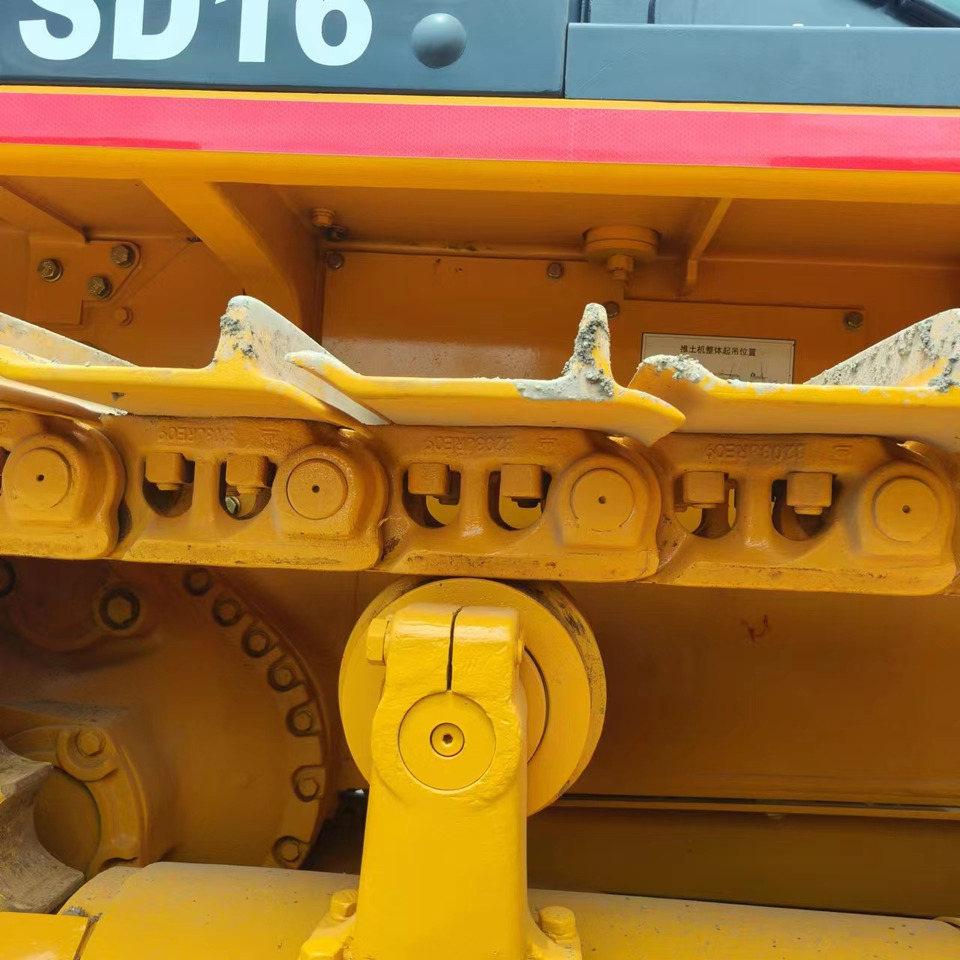

| Track Shoe Width Options | 510 / 560 / 610 mm |
| Ground Contact Length | 2430 mm |
| Fuel Tank Capacity | 315 L |

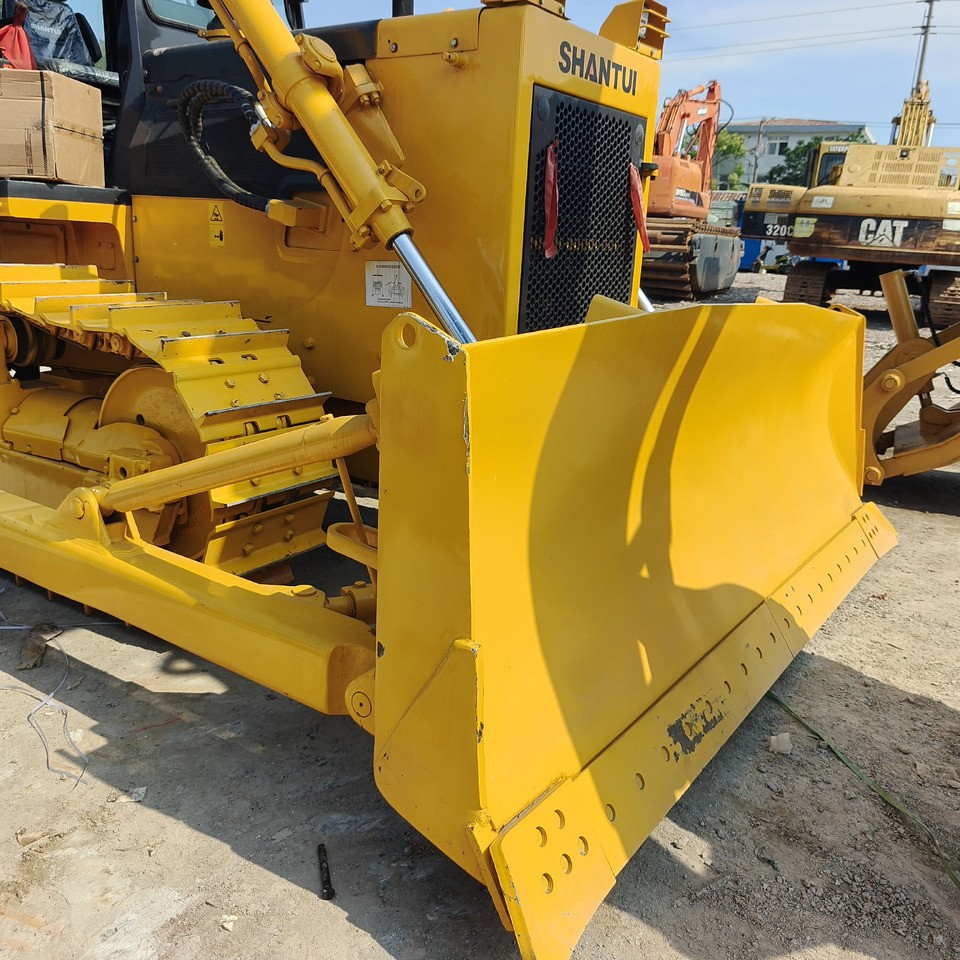

| Blade Type Options | Straight tilting / U-shaped Blade |
| Blade Capacity (Max) | 4.8 m³ (U-Blade) |
| Emissions Standard | EU Stage II |
Advanced Design Features

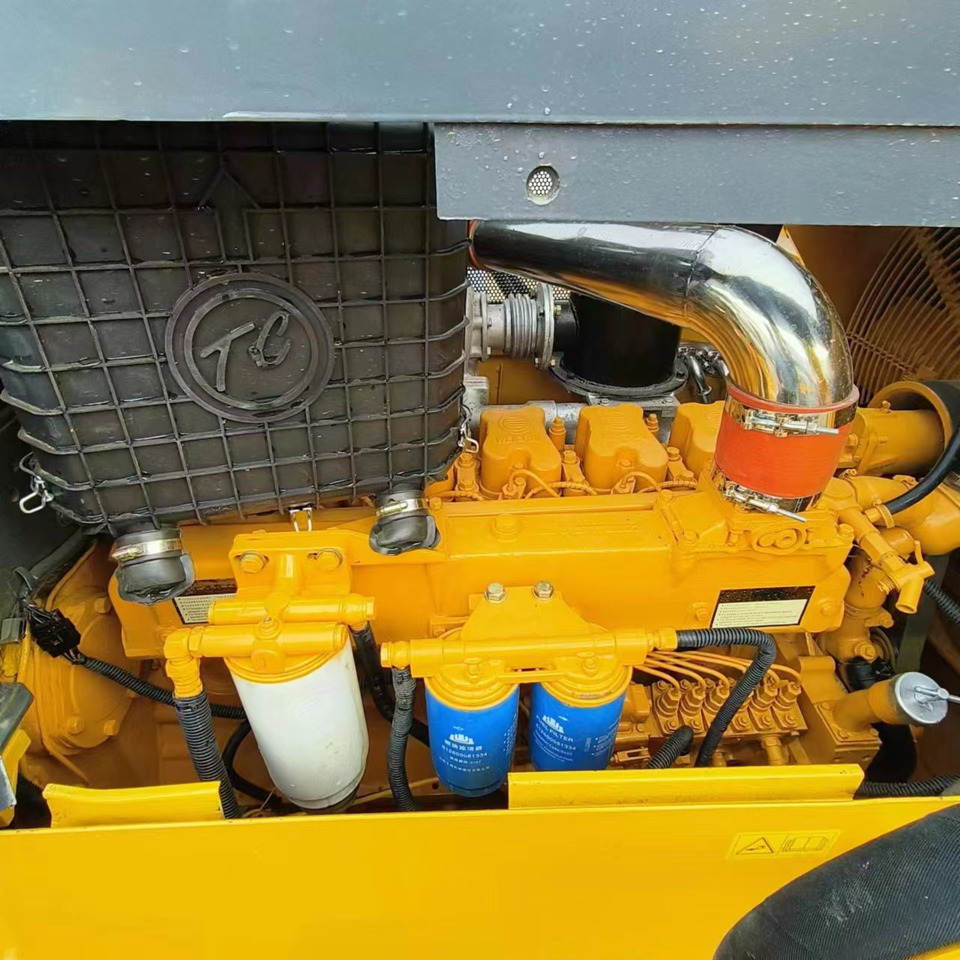

Weichai Power Reliability
The Weichai WD10G178E25 engine is widely regarded for its proven robustness and high parts commonality, which translates to superior reliability and ease of global parts sourcing.
Modular Transmission System
The transmission and final drive assembly are designed with modular components. This feature minimizes complexity during servicing, allowing the equipment to be maintained efficiently.

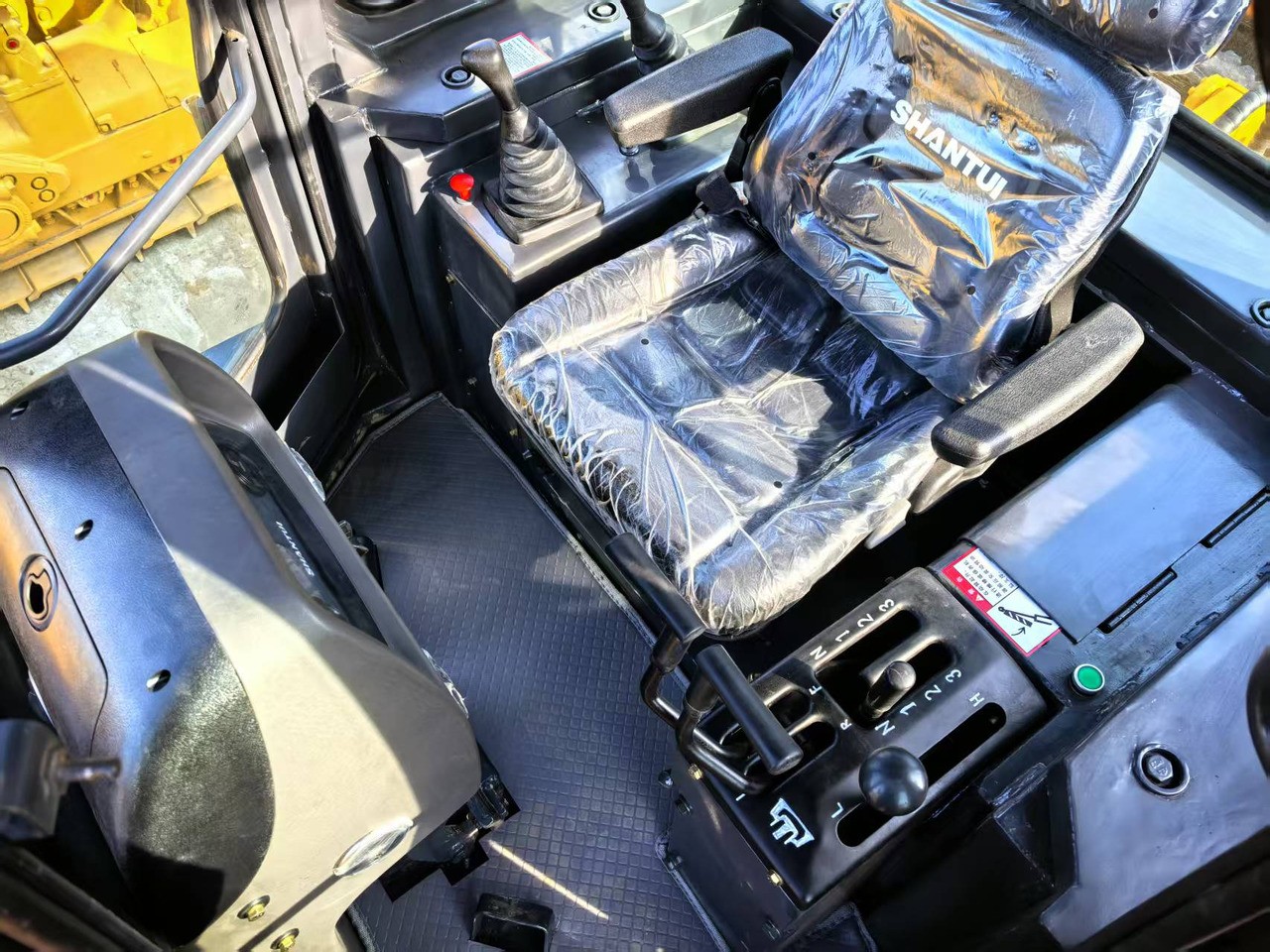

Pressurized Hexahedral Cabin
The cabin is built to isolate the user from the external environment, reducing noise and dust ingress. The hexahedral shape offers maximum viewing angles, which is critical for safety and precision during close-quarter operations.
Value and Operational Benefits
The technical aspects of the SD16 deliver tangible advantages directly to your project:
| Feature | Tangible Benefit |
|---|---|
| High Ground Contact Length (2430mm) | Ensures stable movement and maximized pushing force across soft or unstable surfaces. |
| 315L Fuel Tank Capacity | Extends the time between refueling cycles, maximizing continuous daily operation time. |
| Blade Versatility (U-shaped Option) | The 4.8m³ U-blade allows for high-volume material handling, speeding up mass clearing tasks. |
| Centralized Pressure Monitoring | Allows for rapid system checks, proactively identifying maintenance needs before they become critical issues. |
Selecting a Trustworthy Partner for the SD16
When seeking to acquire a Brand New Shantui SD16 Bulldozer, your supplier selection process should focus on reliability and service:
-
Authenticity Verification: Demand official factory certifications and serial number confirmation to ensure the machine is indeed new and genuine.
-
Warranty Support: Confirm the supplier provides direct, factory-backed warranty coverage and facilitates international claims.
-
Logistics Expertise: The partner must handle the complex loading process (e.g., blade removal for containerization) and secure safe ocean transport.
-
Parts Continuity: Choose a partner who can guarantee the long-term supply of genuine Weichai and Shantui components.
Why Partner with ZW Group?
ZW Group specializes in the export of top-tier Chinese construction machinery, including the Brand New Shantui SD16 Bulldozer. Our commitment goes beyond sales; we ensure logistical excellence and asset integrity.
Before any machine leaves the port, our quality assurance team conducts a thorough 100-point inspection, verifying every hydraulic pressure point and engine performance metric. Our expertise in international shipping means your SD16 will be prepared and delivered with maximum efficiency and minimal risk of damage or delay.
Frequently Asked Questions
1. What is the typical lead time for the Shantui SD16?
If the specific configuration is currently in stock, we typically require 7 to 10 days for pre-shipment inspection and port mobilization. Factory orders may require a longer lead time of 25 to 35 days.
2. Can the SD16 operate effectively in soft terrain?
Yes. The large ground contact length (2430mm) combined with the wider track shoe options (up to 610mm) provides excellent ground flotation, allowing for reliable movement on soft or swampy soil.
3. How is the SD16 shipped internationally?
The SD16 can often fit inside a 40-foot flat rack container after the blade is removed. For bulk orders, we utilize RORO (Roll-on/Roll-off) vessels for the most efficient transport.
4. Are additional attachments available?
Yes, we can supply additional attachments such as a single or three-shank ripper for breaking up frozen or hard ground, expanding the machine's operational capability.
5. Do you stock used bulldozers?
Yes. ZW Group maintains an inventory of both new and used bulldozers, including Shantui and other reputable brands, allowing clients to select options based on budget and project scale.
Ready to Maximize Your Project Efficiency?
The Brand New Shantui SD16 Bulldozer is the optimal mid-range solution for reliable, efficient earthmoving. Its robust design and manageable size make it a highly valuable asset across diverse operational environments.
ZW Group is your comprehensive heavy machinery source. In addition to new Shantui dozers, we offer cost-effective Used Bulldozers and a complete lineup of construction and heavy transport equipment:
-
Earthmoving: New and Used Excavators, Wheel Loaders, Motor Graders.
-
Compaction: Road Rollers and Compactors.
-
Material Handling: Forklifts and Mobile Cranes.
-
Heavy Trucks: Dump Trucks, Tractor Trucks, Fuel Tankers, Water Tankers, Mixer Trucks, and Truck-Mounted Cranes.
Contact ZW Group now to get a quote tailored to your logistical requirements.
