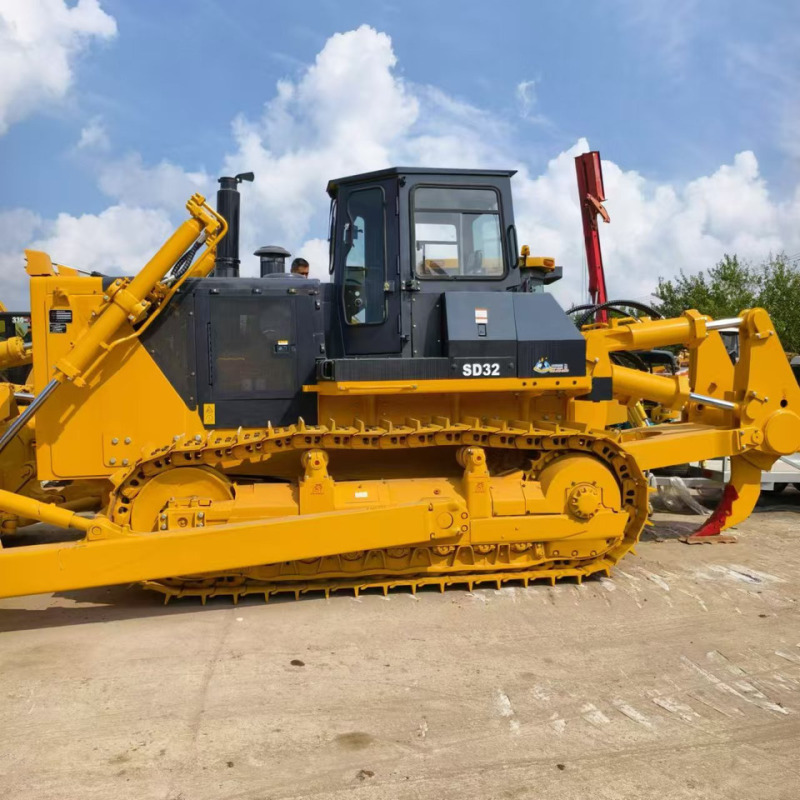

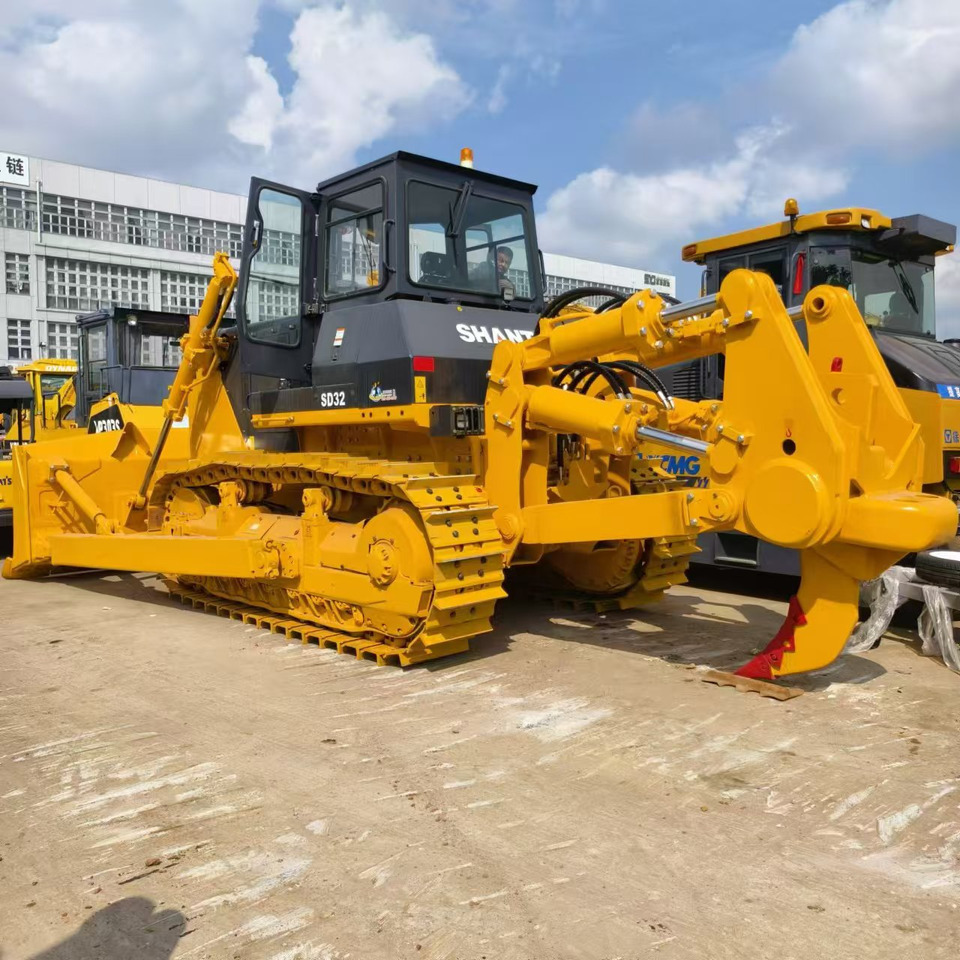

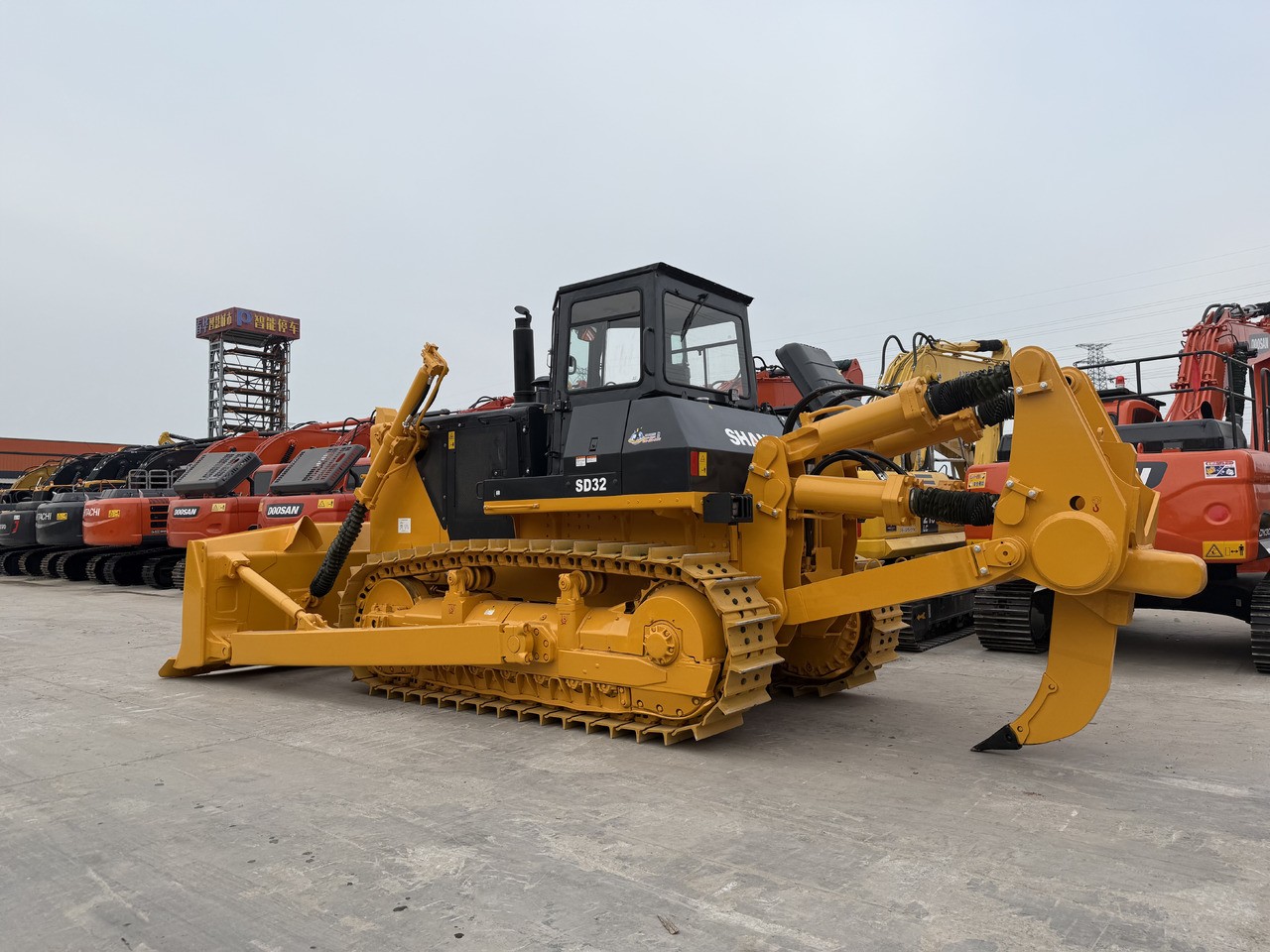

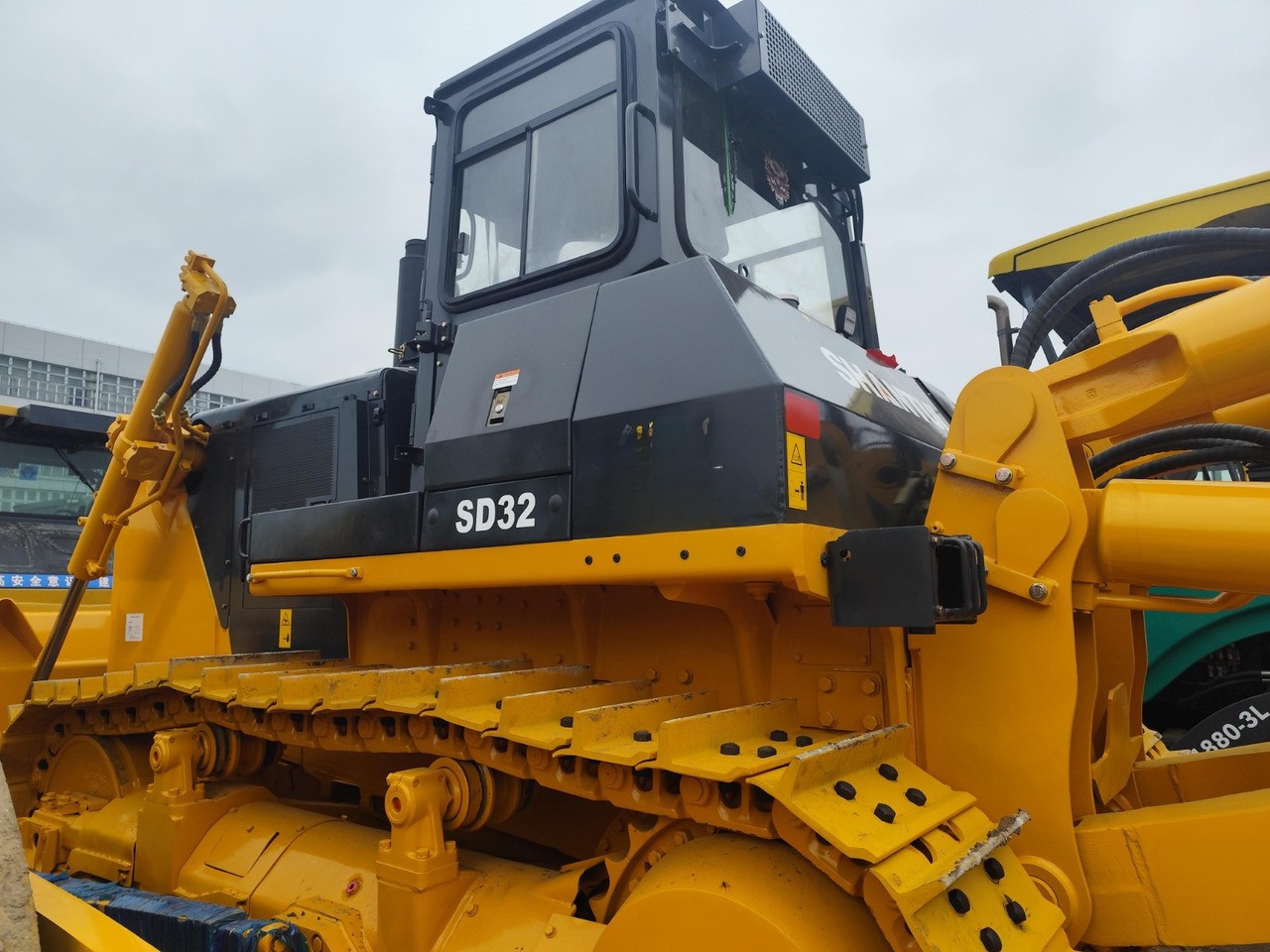

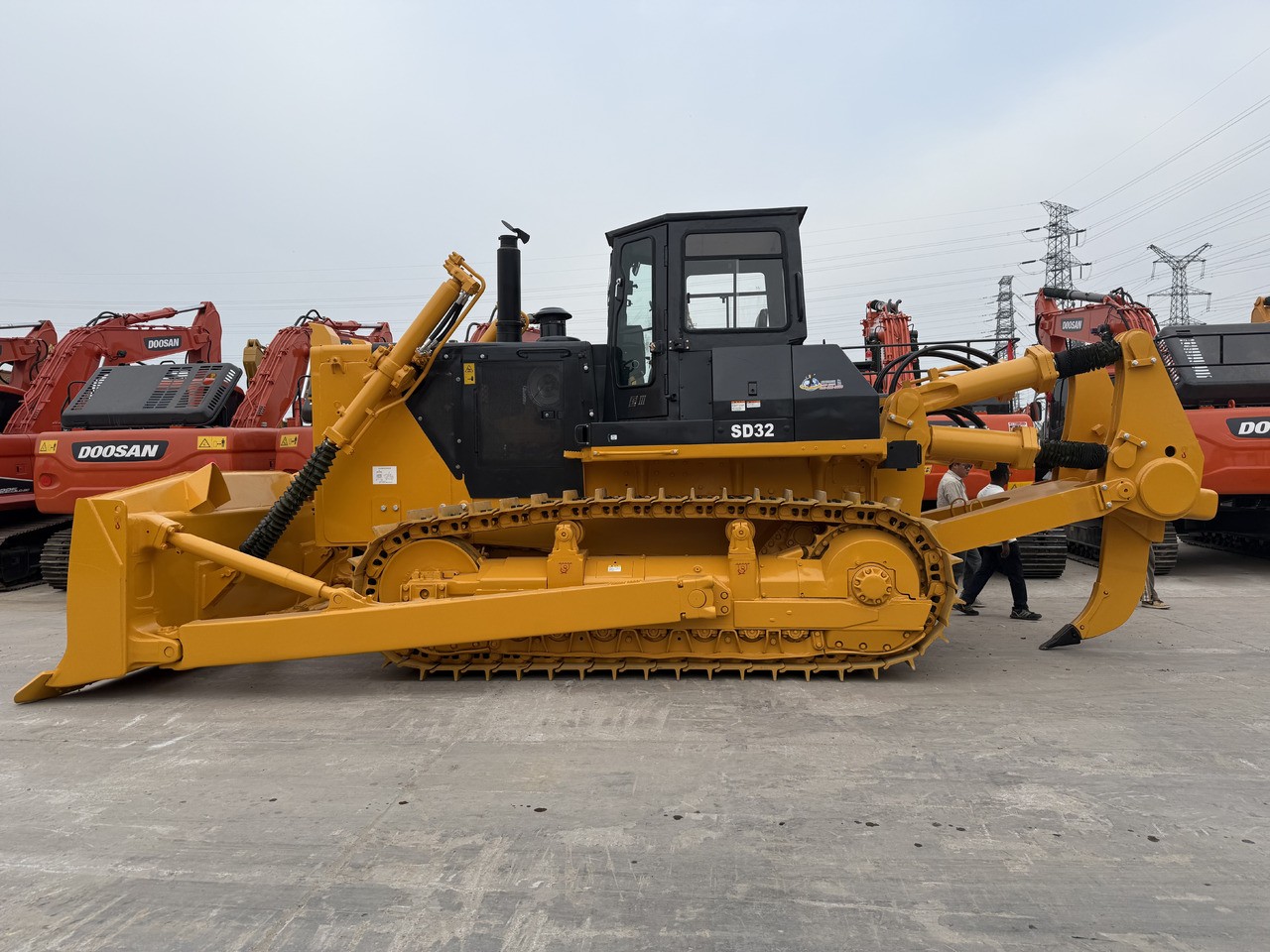

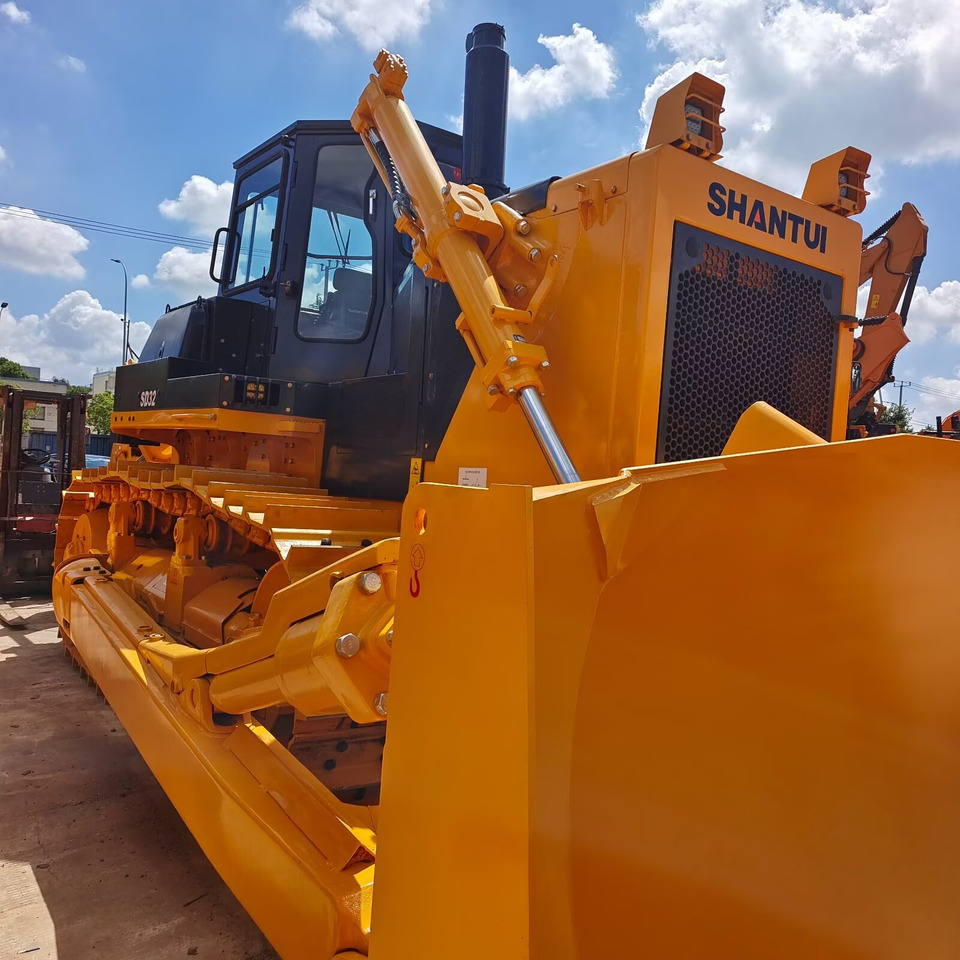

Brand New Shantui SD32 Bulldozer
Overall weight(kg)：39700
Engine brand：Cummins
Rated power/rated speed(kW/rpm)：257/2000
The Brand New Shantui SD32 Bulldozer is a heavy-duty, 39.7-ton hydraulic crawler dozer, specifically designed and reinforced for the most demanding large-scale applications, including deep ripping and high-volume material movement.
- Shantui
- China
- 15-20 days
- 10000 Unit/Month
- Information
Brand New Shantui SD32 Bulldozer: Built for Extreme High-Volume Clearing
What is the Brand New Shantui SD32 Bulldozer?
The Brand New Shantui SD32 Bulldozer is a heavy-duty, 39.7-ton hydraulic crawler dozer, specifically designed and reinforced for the most demanding large-scale applications, including deep ripping and high-volume material movement.
Why Choose the SD32 for Challenging Terrain?
Power is the defining feature of this machine. Equipped with a robust Cummins engine, the SD32 delivers a massive 257kW (345 horsepower). This raw power translates into superior drawbar pull and ground-breaking force, essential for fracturing dense rock or pushing substantial overburden in mining environments.
Furthermore, the physical structure is engineered for endurance. The extended track frame, with a 3150mm ground contact length, ensures exceptional stability and low ground pressure for its weight class. This superior grip minimizes slippage and maximizes the efficiency of the machine's immense pushing capability over extended periods.
Shantui Dozer Series: Scale of Capability
The SD32 is positioned as the flagship of the Shantui conventional dozer lineup, offering the highest capacity for projects requiring maximum material displacement rates.
| Model | Overall Weight (kg) | Rated Power (kW) | Typical Blade Capacity (m³) |
|---|---|---|---|
| Shantui SD16 | 16,400 | 131 | 3.2 – 4.8 |
| Shantui SD22 | 23,450 | 175 | 4.6 – 9.0 (Max U-Blade) |
| Shantui SD32 | 39,700 | 257 | 7.2 – 9.0 (Max Semi-U) |
Ideal High-Production Applications for the SD32:
The strength and capacity of the Brand New Shantui SD32 Bulldozer make it critical for:
-
Large-Scale Mining Operations: Stripping massive amounts of overburden and maintaining heavy haul road networks.
-
Quarry and Aggregate Production: Ripping and moving hard materials like limestone, slate, and granite.
-
Major Dam and Reservoir Construction: Compacting and leveling enormous volumes of earth and fill material.
-
Heavy Infrastructure Projects: Creating large pads and foundations where speed and volume are the priority.
Technical Specifications
The data below details the robust specifications underpinning the high performance of the SD32 model.
| Parameter | SD32 Specification |
|---|---|
| Overall Weight | 39,700 kg |
| Engine Brand | Cummins |
| Rated Power / Speed | 257 kW / 2000 rpm |
| Machine External Dimensions | 8650 x 4130 x 3760 mm |
| Track Center Distance | 2140 mm |
| Track Shoe Width Options | 560 / 610 / 660 / 710 mm |
| Ground Contact Length | 3150 mm |
| Fuel Tank Capacity | 640 L |
| Blade Type Options | Straight tilting, Angle, Semi-U |
| Blade Capacity (Max) | 9.0 m³ (Semi-U) |
| Emissions Standard | EU Stage II |
Structural and Performance Features

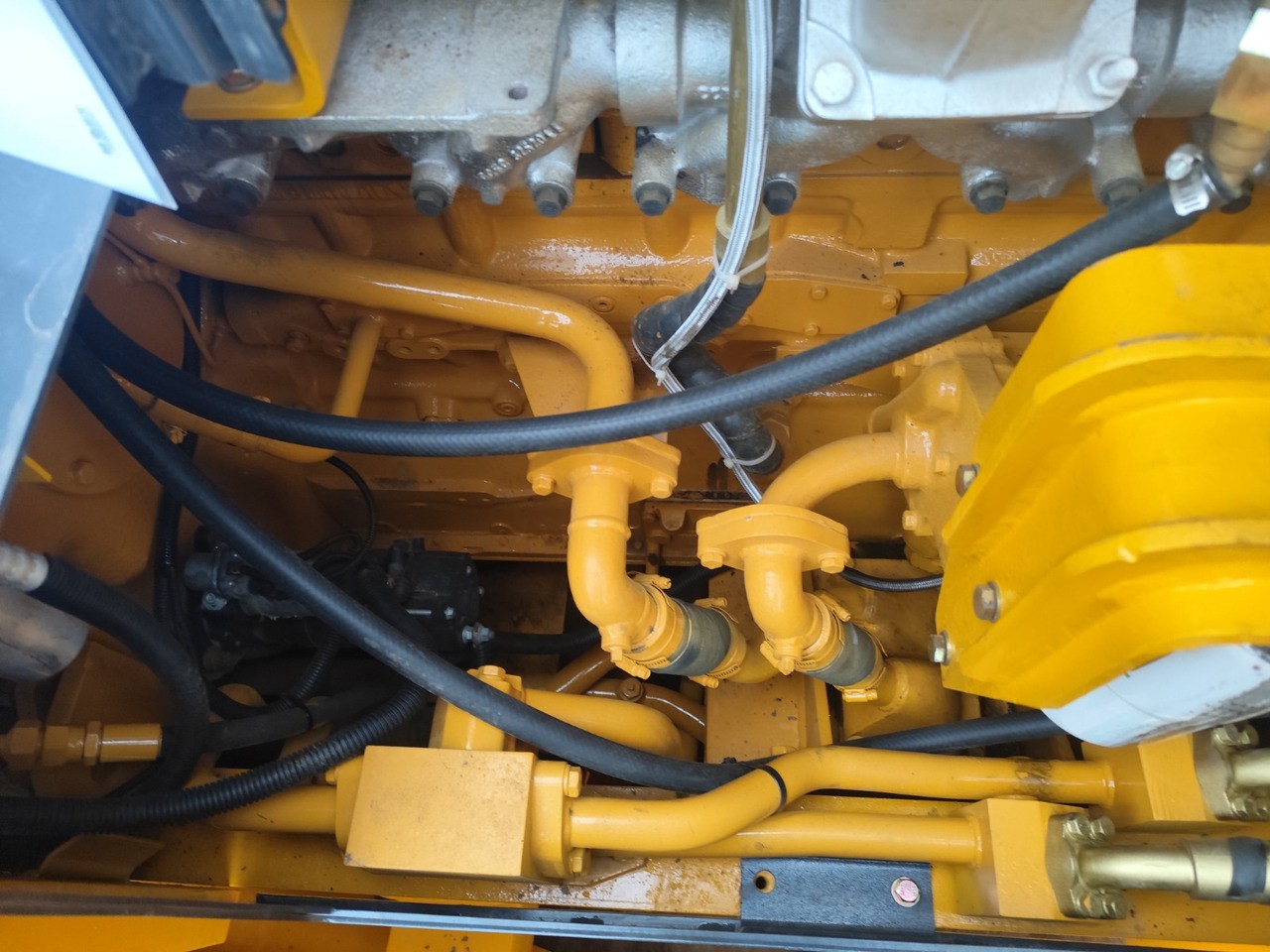

Cummins High-Output Engine
The 257kW Cummins power plant is mated with a robust power shift transmission, ensuring efficient torque transfer to the tracks. This combination is proven globally in extreme environments, guaranteeing reliability under continuous heavy load cycles.

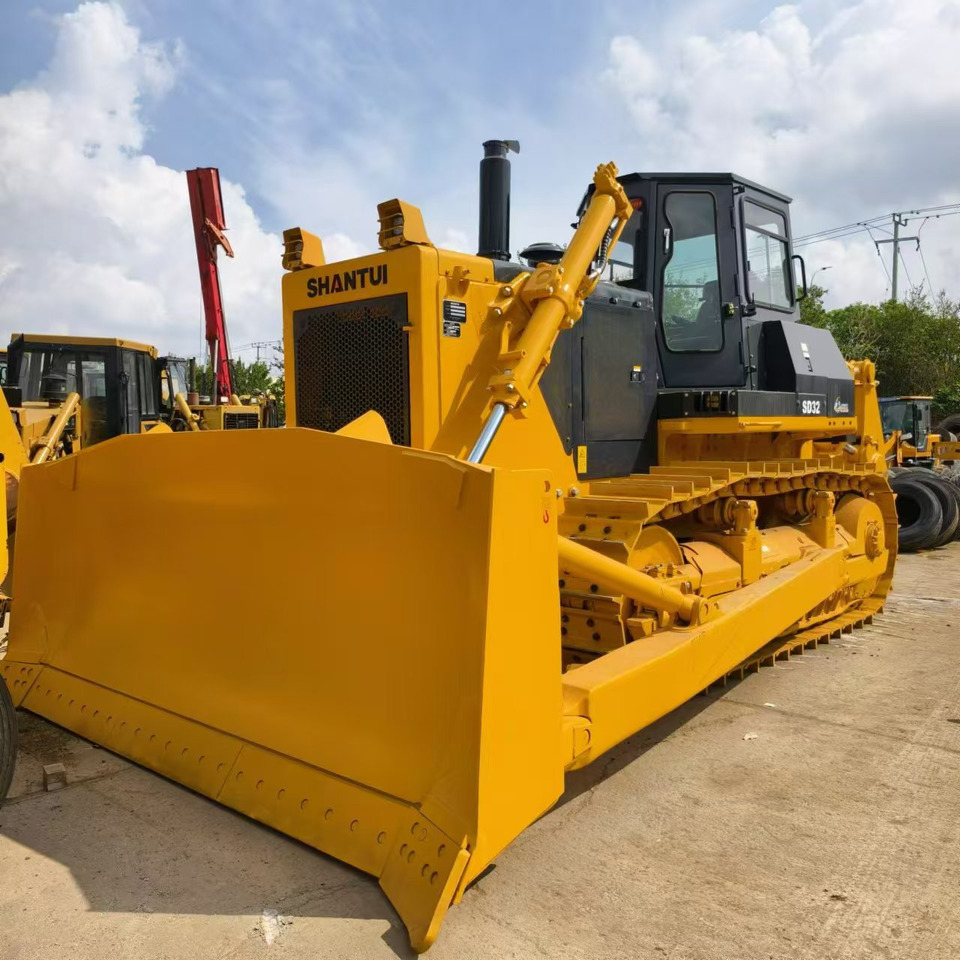

High-Capacity Semi-U Blade
The optional 9.0m³ Semi-U blade is a crucial asset for high-volume earthmoving. Its design balances aggressive penetration with excellent material retention, significantly reducing the number of passes required to clear a large area.
Hydraulic System Standardization
Key hydraulic components utilize established, non-proprietary designs. This standardization simplifies maintenance protocols and ensures that technicians can quickly access common replacement parts, minimizing costly downtime.
High-Volume Operational Benefits
The scale and engineering of the SD32 translate directly into superior field performance:
| Feature | Operational Benefit |
|---|---|
| 640-Liter Fuel Capacity | Allows for multiple full shifts of continuous operation without interruption for refueling, maximizing daily tonnage output. |
| Robust Modular Final Drive | Significantly increases the system life cycle, providing longer asset utilization and lower overall ownership cost. |

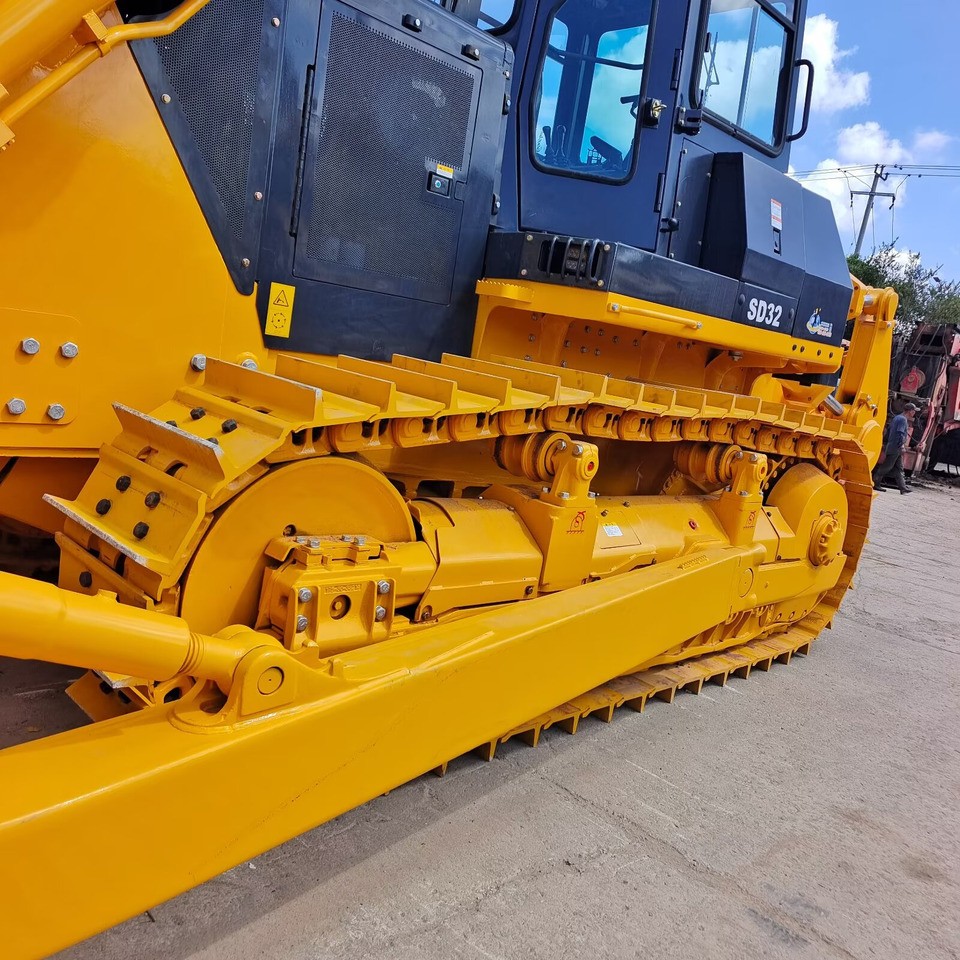

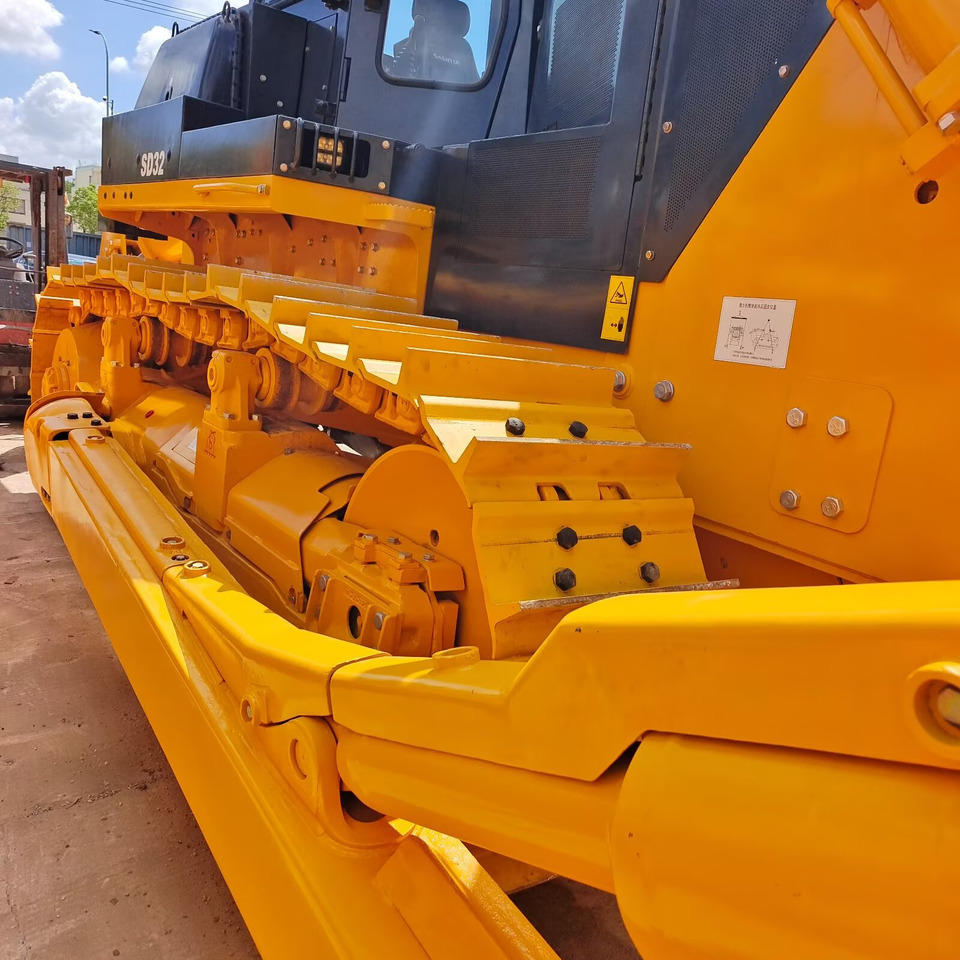

| Extended 3150mm Track Length | Maximizes stability and traction during steep hill pushes and powerful ripping tasks. |
| Optional Wide Track Shoes (710mm) | Essential for maintaining flotation and reducing ground pressure when moving across softer, unconsolidated soil layers. |
Partnering for Heavy Machinery Acquisition
The purchase and delivery of a 40-ton machine like the Brand New Shantui SD32 Bulldozer requires specialized logistical expertise. Choose a supplier who demonstrates:
-
Heavy Lift Logistics Experience: Proven capability in arranging specialized transport, lashing, and documentation for oversized, heavy shipments.
-
Full Documentation: Provides certified factory production sheets, engine certificates, and full customs compliance paperwork.
-
Technical Support Guarantee: Assurance of factory-trained remote support and access to major replacement components (track groups, engine blocks).
-
Pre-Shipment Inspection (PSI): Facilitates independent, third-party inspection to verify the machine's condition and specifications before payment release.
The ZW Group Advantage for Heavy Machinery
ZW Group is the preferred international exporter for large-scale construction equipment. Our expertise lies in simplifying the complex process of acquiring and shipping machinery of the magnitude of the Brand New Shantui SD32 Bulldozer.
We work directly with the manufacturer to ensure the machine is configured precisely to your regional needs. Our logistics specialists manage the challenging port procedures for oversized cargo, guaranteeing the machine is expertly loaded and secured for its ocean transit, arriving ready for immediate placement into high-intensity operation.
Frequently Asked Questions
1. What is the typical lead time for the SD32?
Due to the size and high demand for the SD32, lead times can vary. If factory production is required, expect 30 to 45 days before the machine is ready for port mobilization.
2. Is the Cummins engine electronically controlled?
The SD32 typically features a mechanically controlled Cummins engine (in compliance with EU Stage II), known for its reliability, robustness, and ease of repair in environments where complex electronic diagnostics are unavailable.
3. Can the track shoe width be customized?
Yes, we offer multiple track shoe options up to 710mm. This customization is essential for matching the machine's ground pressure to the specific soil bearing capacity of your project site.

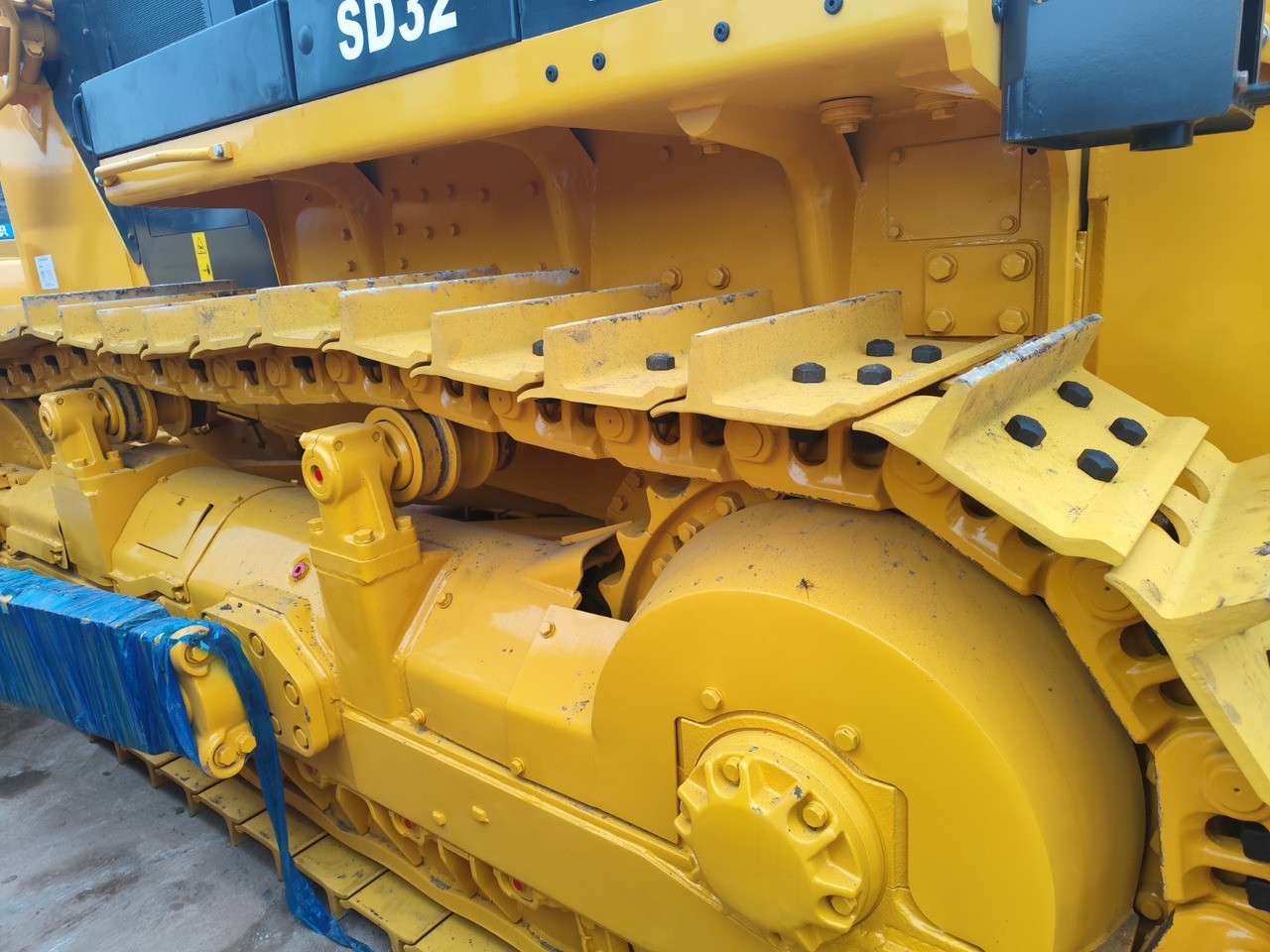

4. What is the expected lifespan of the undercarriage components?
The SD32 undercarriage is built with heavy-duty components. With appropriate preventative maintenance, the service life is highly competitive, especially when comparing hours of operation versus material volume moved.
5. Does ZW Group offer financing or L/C terms?
ZW Group accepts secure payment methods, including Telegraphic Transfer (T/T) and Irrevocable Letter of Credit (L/C) at sight, subject to bank verification.
Initiate Your High-Capacity Project Today
The Brand New Shantui SD32 Bulldozer is a powerful acquisition that promises reliability and high throughput for the largest earthmoving projects. Its superior specifications and robust structure guarantee longevity in the harshest conditions.
