Brand New XCMG XE215C Excavator
Bucket Capacity：1.0m³
Engine Model：ISUZU CC-6BG1TRP
Engine Power：128.5kW
Operating Weight ：21500kg
- XCMG
- China
- 30 days
- 10000 Unit/Month
- Information

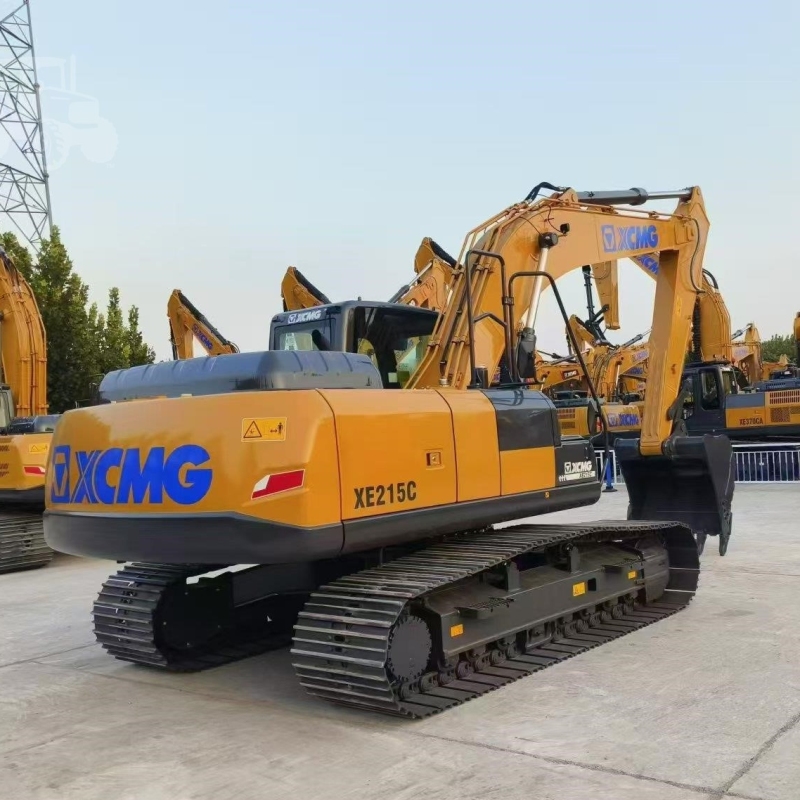

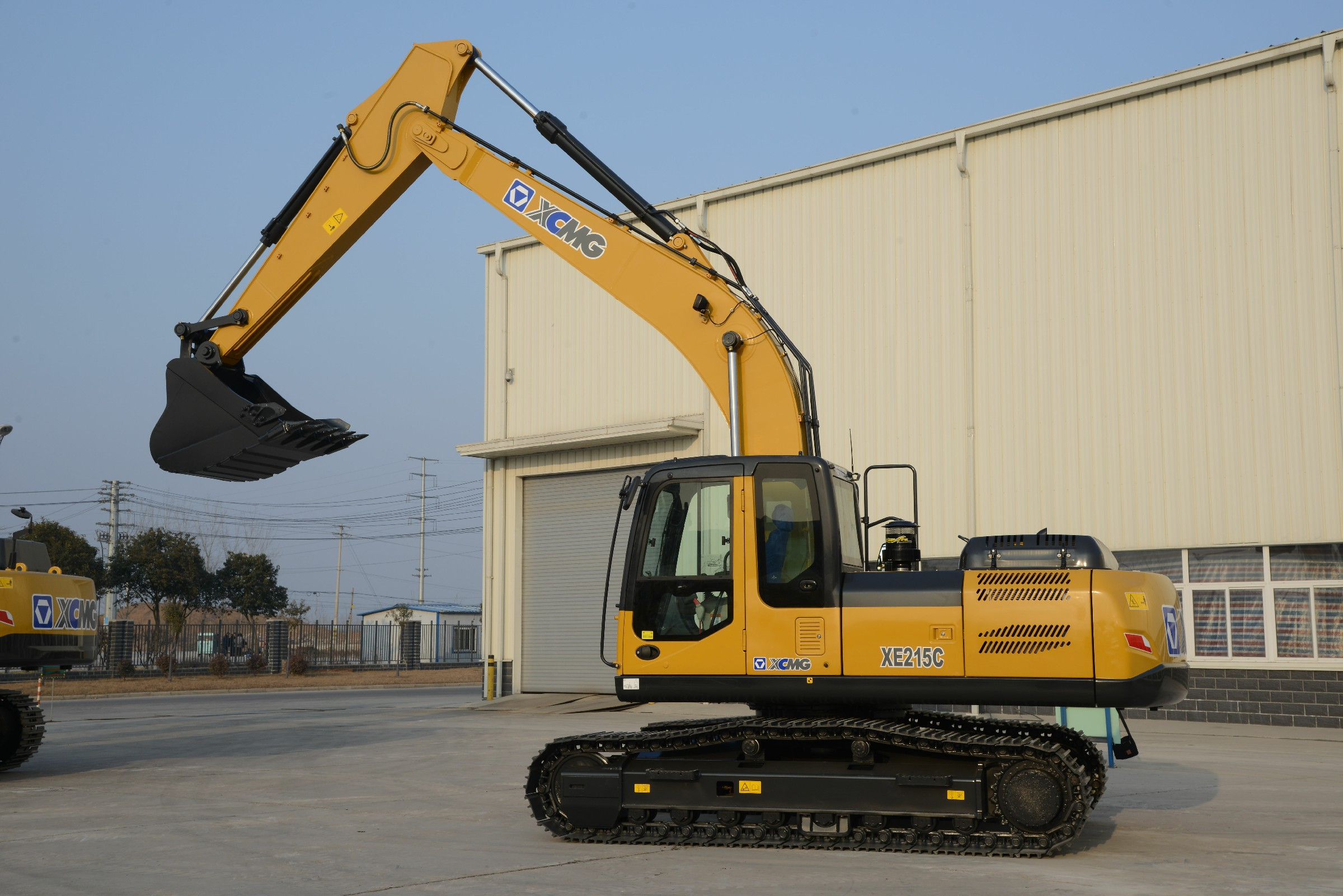

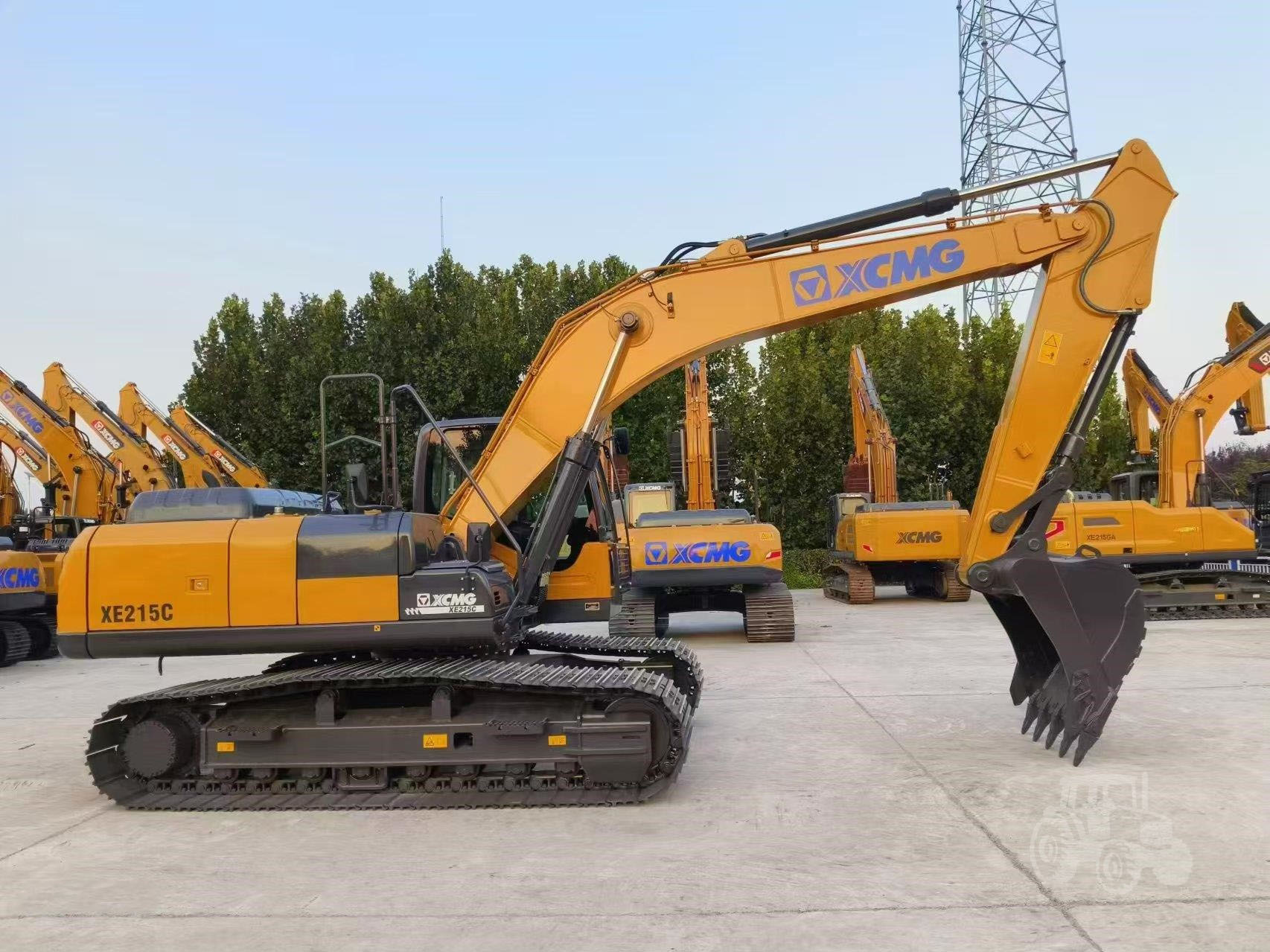

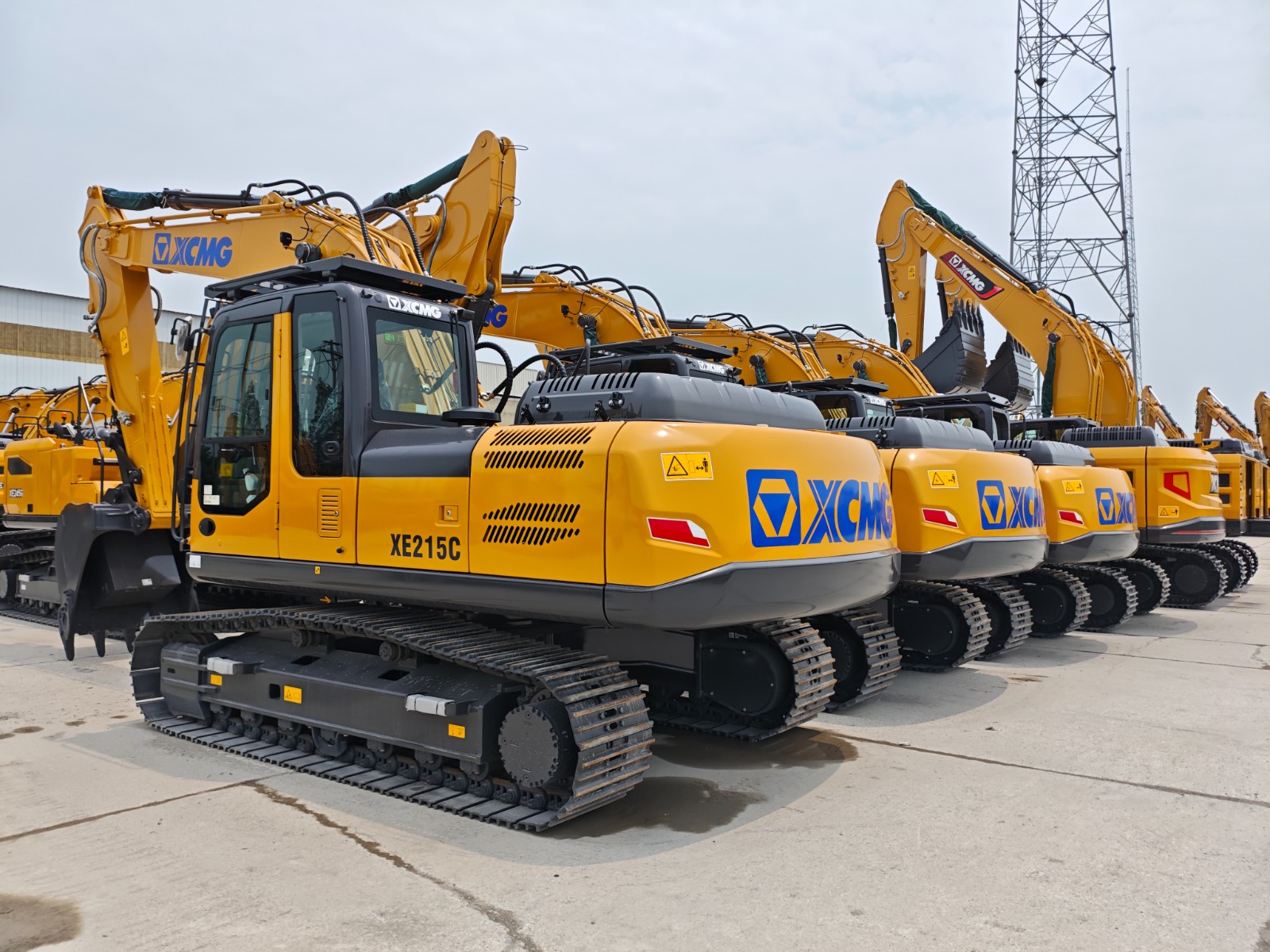

Brand New XCMG XE215C Excavator
ZW Group's Brand New XCMG XE215C Excavator rocks an optimized Isuzu engine. It gives awesome power and reliable performance for tough jobs. This 21-ton hydraulic digger uses way less fuel but still delivers max breakout force. So, it's one of the best in its league.
| Technical Specifications | |
|---|---|
| Engine Parameters | |
| Model | ISUZU CC-6BG1TRP |
| Equipped Features | Electronic fuel injection, Four strokes, Water cooling, Turbo-charging, Air to air intercooler |
| No. of cylinders | 6 |
| Output power | 128.5/2100 kW/rpm |
| Torque/speed | 637/1800 N.m/rpm |
| Displacement | 6.494 L |
| Weight & Capacity | |
| Operation Weight | 21700 kg |
| Bucket Capacity | 0.9—1.0 m³ |
| Main Performance Parameters | |
| Travel speed(H/L) | 5.5/3.3 km/h |
| Rotating speed | 13.3 r/min |
| Gradeability | ≤35° |
| Ground pressure | 47.2 kPa |
| Bucket digging force | 149 kN |
| Arm digging force | 111 kN |
| Maximum traction | 184 kN |
| Operational Range | |
| Max. digging height | 9620 mm |
| Max. dumping height | 6780 mm |
| Max. digging depth | 6680 mm |
| Excavation depth of 8 feet level | 6500 mm |
| Max. vertical wall digging depth | 5715 mm |
| Max. digging reach | 9940 mm |
| Min. swing radius | 3530 mm |
Optimized Fuel Economy and Powertrain Efficiency
Premium Engine Integration
The mechanical core features an authentic ISUZU CC-6BG1TRP diesel engine engineered specifically for heavy machinery. This 6-cylinder power plant delivers a rated output of 128.5 kW at 2100 rpm, providing stable hydraulic flow under extreme load conditions. The configuration ensures structural reliability and international parts availability for cross-border projects.
Advanced Electronic Fuel Injection
The integration of electronic fuel injection optimizes combustion by monitoring load demands in real-time. This technology reduces black smoke emissions and ensures compliance with global environmental guidelines while preserving peak torque. Key engineering attributes include:
Precision fuel metering to match instantaneous hydraulic pressure.
Turbo-charging system with air-to-air intercooler for maximum thermal efficiency.
Four-stroke water-cooled design that prevents overheating during prolonged assignments.
Outstanding Structural Durability and Load Capacity
The Brand New XCMG XE215C Excavator boasts an operation weight of 21700 kg, providing superb stabilization during high-capacity digging. Every stress point is structurally enhanced to mitigate fatigue over thousands of service hours.
Reinforced Heavy-Duty Boom and Arm
The boom and arm structures utilize high-tensile steel plates with casting parts at critical pivot joints. Large cross-sectional dimensions increase torsional resistance when managing a bucket digging force of 149 kN. This robust structure facilitates stable handling of rock, compacted clay, and large concrete debris.
Robust Undercarriage Construction
The reinforced X-chassis frame distributes weight evenly across the crawler tracks to minimize ground pressure to 47.2 kPa. Thickened track links, heavy-duty idlers, and top-tier track rollers prevent premature wear on abrasive terrain. Outstanding undercarriage features encompass:
A maximum traction force of 184 kN for navigating steep inclines up to 35 degrees.
Grease-sealed track assemblies that shield pins from sand and moisture infiltration.
Reinforced side frames that absorb severe lateral shocks during heavy-side digging.
Minimized Maintenance Logistics and Low Operating Costs
The design philosophy of the Brand New XCMG XE215C Excavator focuses on rapid serviceability and prolonged part lifetimes. Access routes are strategically positioned to facilitate routine fleet inspections without specialized equipment.
Centralized Service Points
Engine oil filters, fuel pre-filters, and air cleaners are accessible from ground level through wide-opening side hoods. Centralized lubrication blocks allow immediate greasing of remote turntable bearings and arm cylinders simultaneously. This layout minimizes scheduled maintenance times and ensures standard compliance by technical crews.
Extended Component Service Life
High-grade hydraulic oil and filtration units extend fluid replacement intervals significantly, lowering lifetime expense burdens. The integration of wear-resistant bushings at the front attachment reduces frictional play and structural vibrations. Key asset preservation details include:
A dual-element air cleaner that filters fine dust particles in dry mining zones.
Water separator with fuel pre-filter to safeguard the electronic injection injectors.
High-capacity hydraulic return filtration that captures micro-contaminants effectively.
Versatile Operational Scope for Diverse Project Demands
With a standard bucket capacity of 0.9 to 1.0 m³, this unit optimizes cycle times in mass excavation. The balanced dimensions provide an exceptional combination of depth, reach, and height parameters.
Excellent Reach and Excavation Depths
The physical geometries allow a maximum digging reach of 9940 mm and a maximum digging depth of 6680 mm. These dimensions allow the unit to excavate deep foundations and load high-sided haul trucks without repositioning delays. The 13.3 r/min rotating speed ensures quick slewing motions to maximize hourly production rates.
Precision Hydraulic Control
The main hydraulic system incorporates dual pump cross-power regulation for smooth multi-function movements. This provides excellent fine-grading capabilities and prevents engine stalling when handling full bucket loads at maximum extension. Performance advantages are highlighted below:
Max digging height of 9620 mm for convenient high-wall excavation and scaling.
Dumping height of 6780 mm for seamless material transfer into large commercial transport units.
A compact minimum swing radius of 3530 mm for performance in restricted urban corridors.
Frequently Asked Questions
What engine powers the Brand New XCMG XE215C Excavator?
The equipment is driven by an authentic ISUZU CC-6BG1TRP 6-cylinder engine. It includes electronic fuel injection and turbocharging to produce 128.5 kW of power.
What is the bucket capacity and operation weight of this unit?
It features a total operation weight of 21700 kg. The standard bucket capacity ranges from 0.9 to 1.0 cubic meters, depending on material densities.
How does the hydraulic system enhance site productivity?
The machinery utilizes a dual-pump system with intelligent flow distribution. This mechanism delivers 149 kN of bucket digging force and 111 kN of arm digging force for swift excavation.
Why Source from ZW Group?

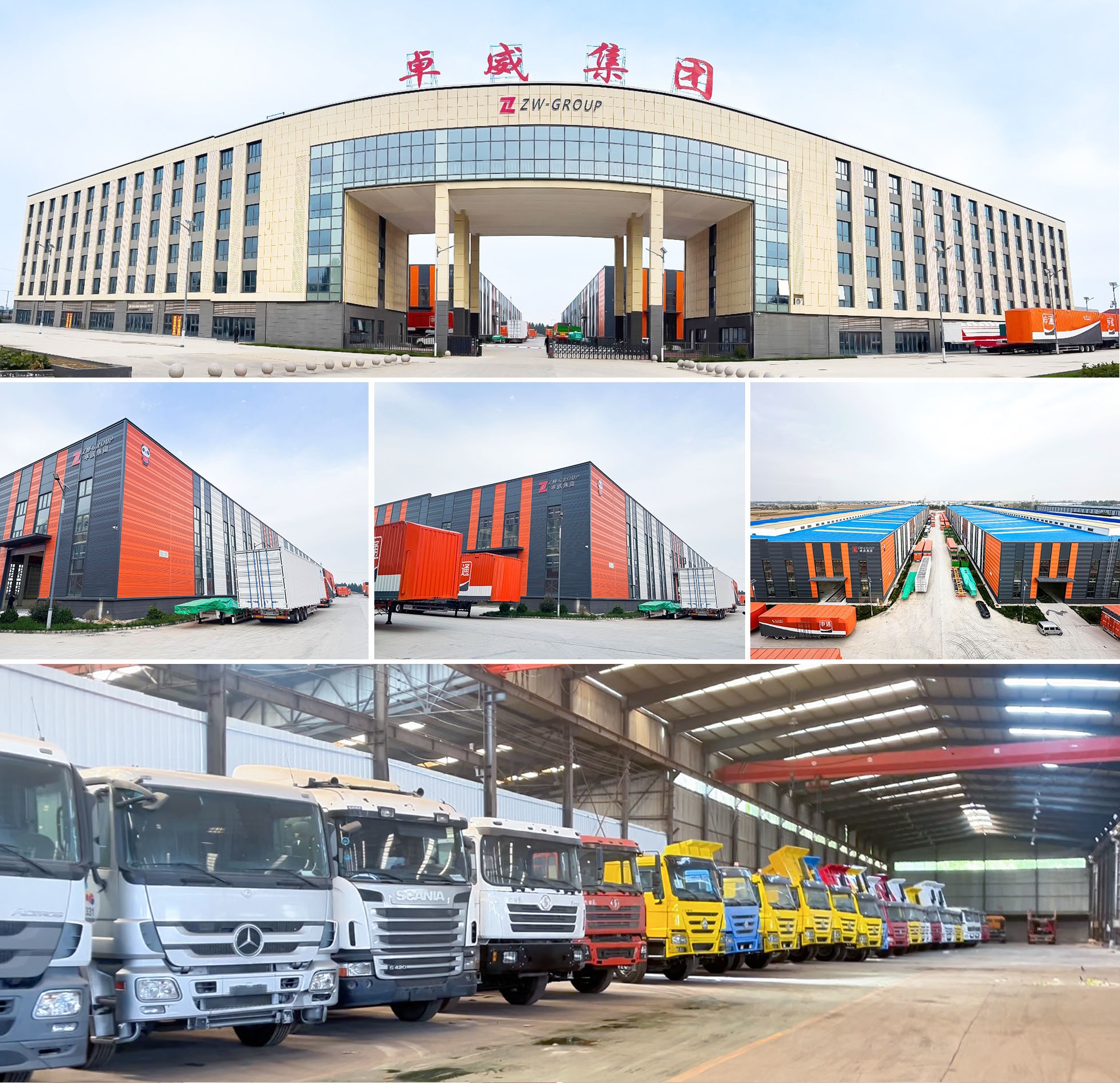

ZW Group is an established leader in the global supply of heavy trucks and engineering machinery. Our organization possesses extensive export expertise, serving clients across diverse commercial markets with rigorous quality control standards. Every machine undergoes comprehensive pre-shipment inspections to verify structural and hydraulic integrity.
