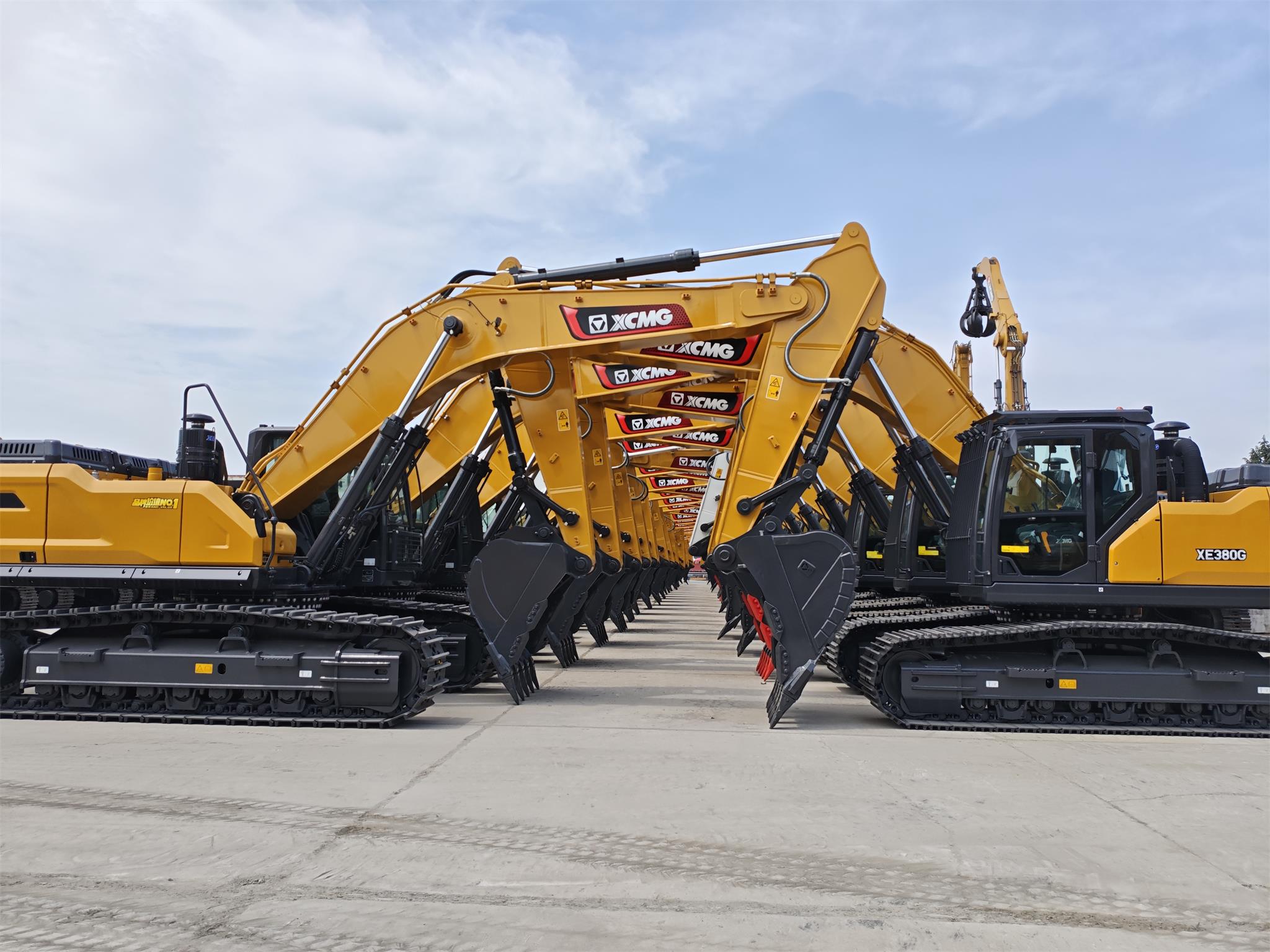

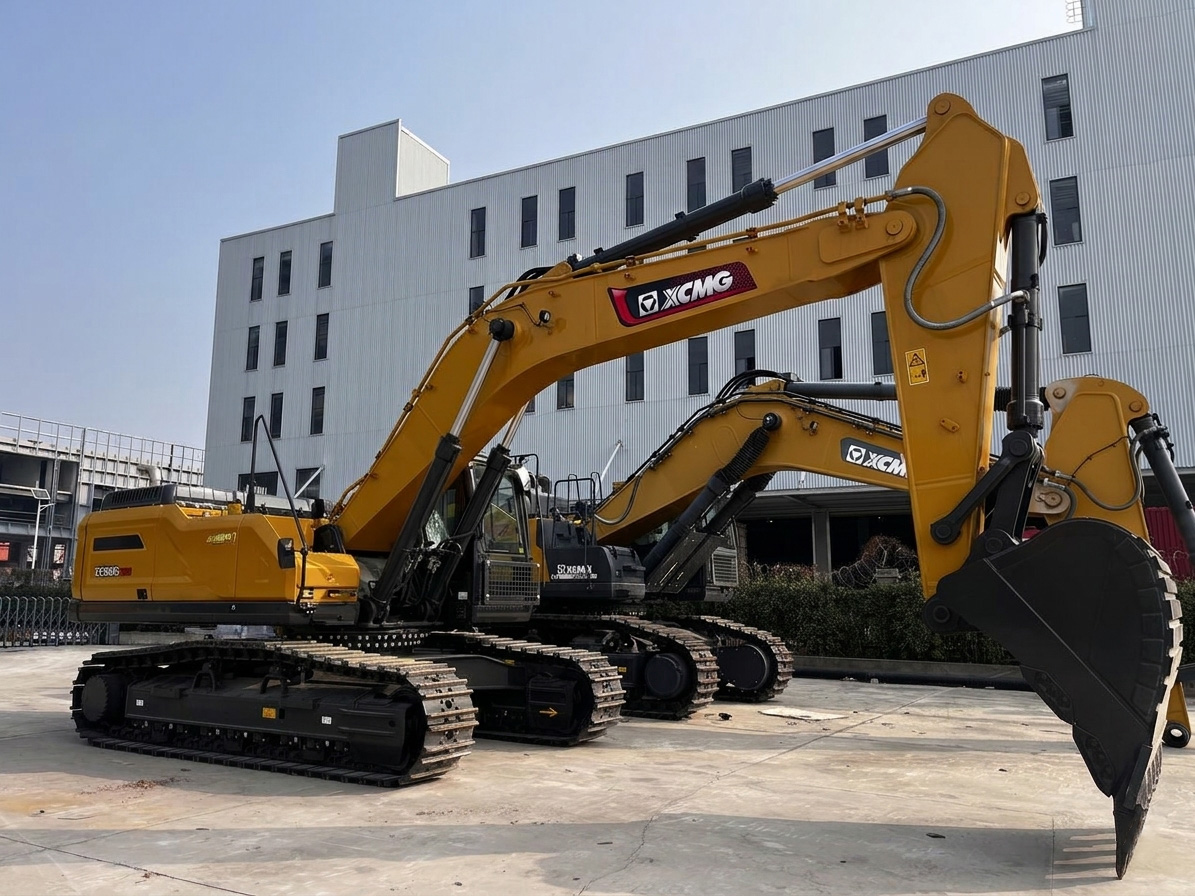

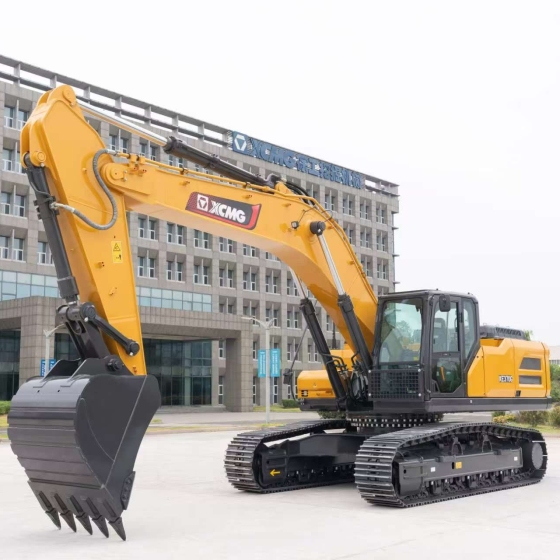

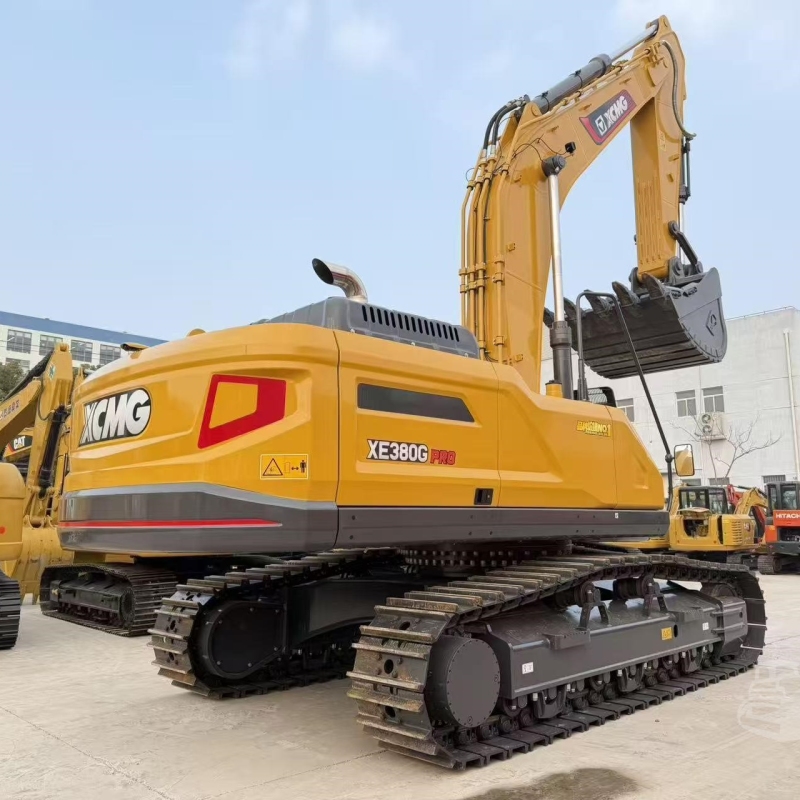

Brand New XCMG XE380G Excavator
The brand new XCMG XE380G excavator addresses critical fleet challenges by delivering massive digging power and reduced fuel consumption. This heavy-duty crawler machine ensures maximum asset utilization and long-term project profitability for international contractors.
Operating Weight: 38,700 kg
Engine Power: 241 kW (323 hp)
Bucket Capacity: 1.9 m³
Max Dig Depth: 7,150 mm
Max Reach: 10,970 mm
Bucket Force: 285 kN
- Information
Brand New XCMG XE380G Excavator
Large-scale excavation projects require exceptional structural reliability and rapid cycle times. The brand new XCMG XE380G excavator addresses critical fleet challenges by delivering massive digging power and reduced fuel consumption. This heavy-duty crawler machine ensures maximum asset utilization and long-term project profitability for international contractors.
Optimized Fuel Economy and Powertrain Efficiency
The mechanical core integrates advanced powertrain management to minimize hourly operating expenditures. By matching engine output with hydraulic demands, this unit provides exceptional energy efficiency during severe digging applications.
Premium Cummins L8.9 Engine Architecture
The six-cylinder turbocharged engine provides stable mechanical output under extreme thermal stress. This configuration maximizes torque delivery while strictly complying with international emissions standards for heavy machinery.
Efficient Power Delivery at 1900 RPM
Rated power ranges from 241 kW to 254 kW for rapid cycle operations.
Advanced turbocharging maximizes fuel combustion efficiency across diverse altitudes.
Electronic controls prevent unnecessary engine lugging during high-resistance digging.
Superior Structural Load Capacity and Durability

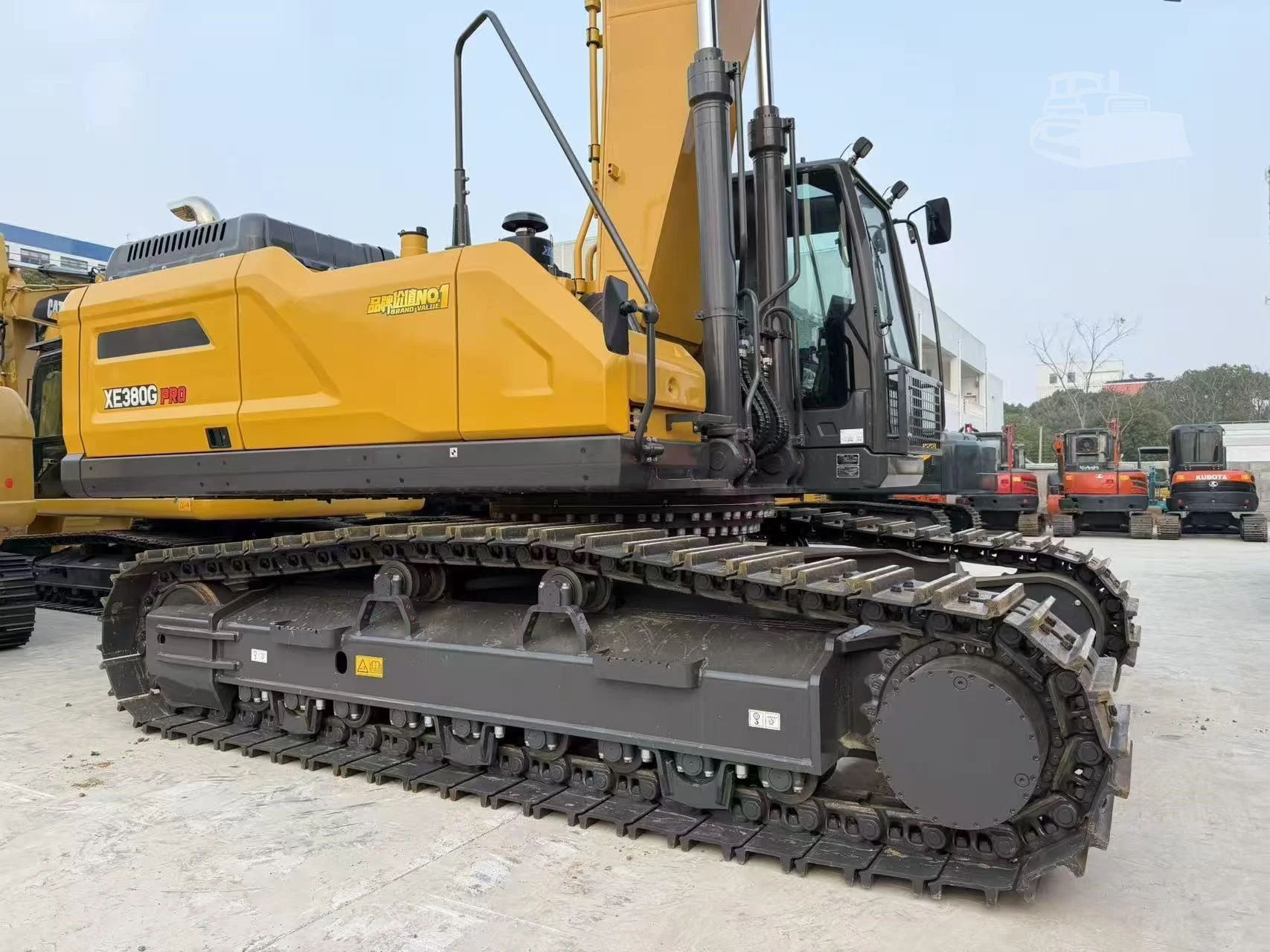

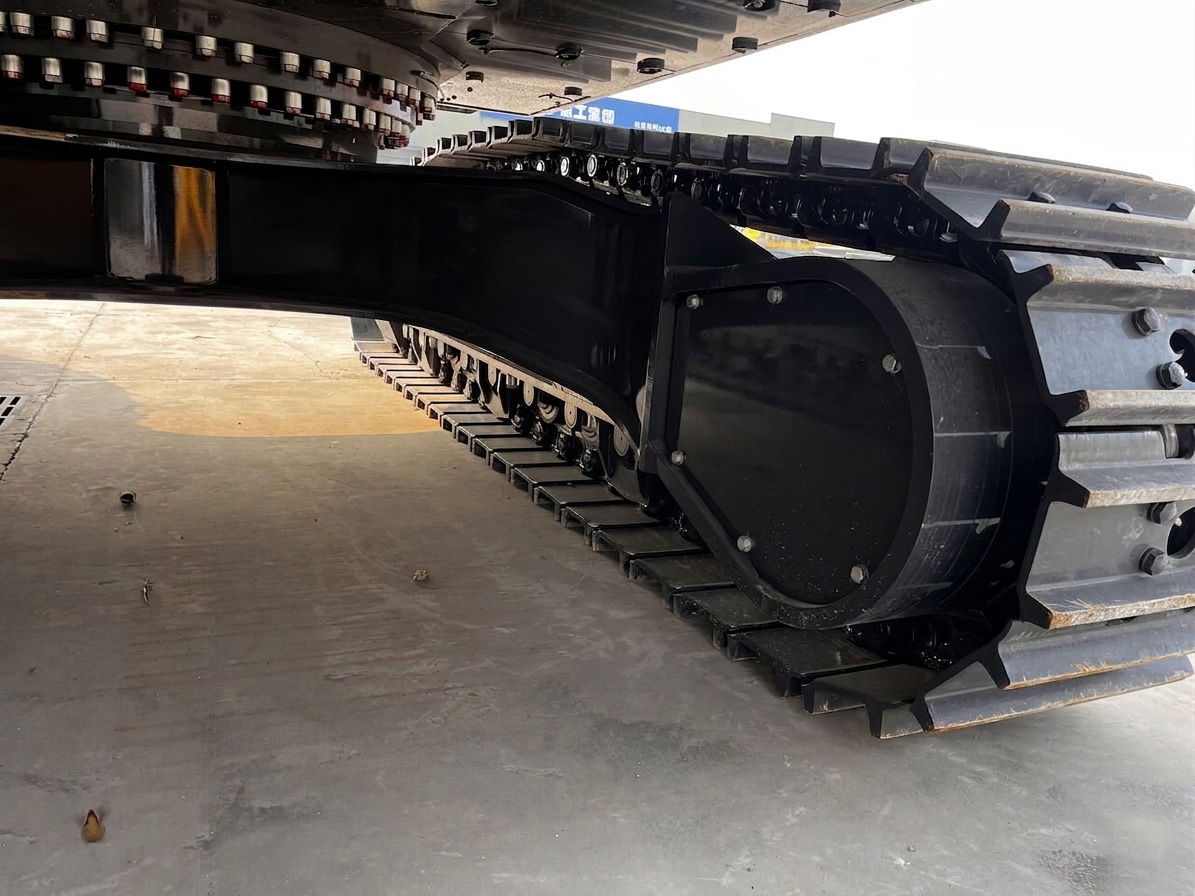

Heavy earth-moving projects demand robust structural frames that resist continuous torsional stress. The heavy undercarriage utilizes reinforced steel profiles to extend the overall lifespan of the fleet asset.

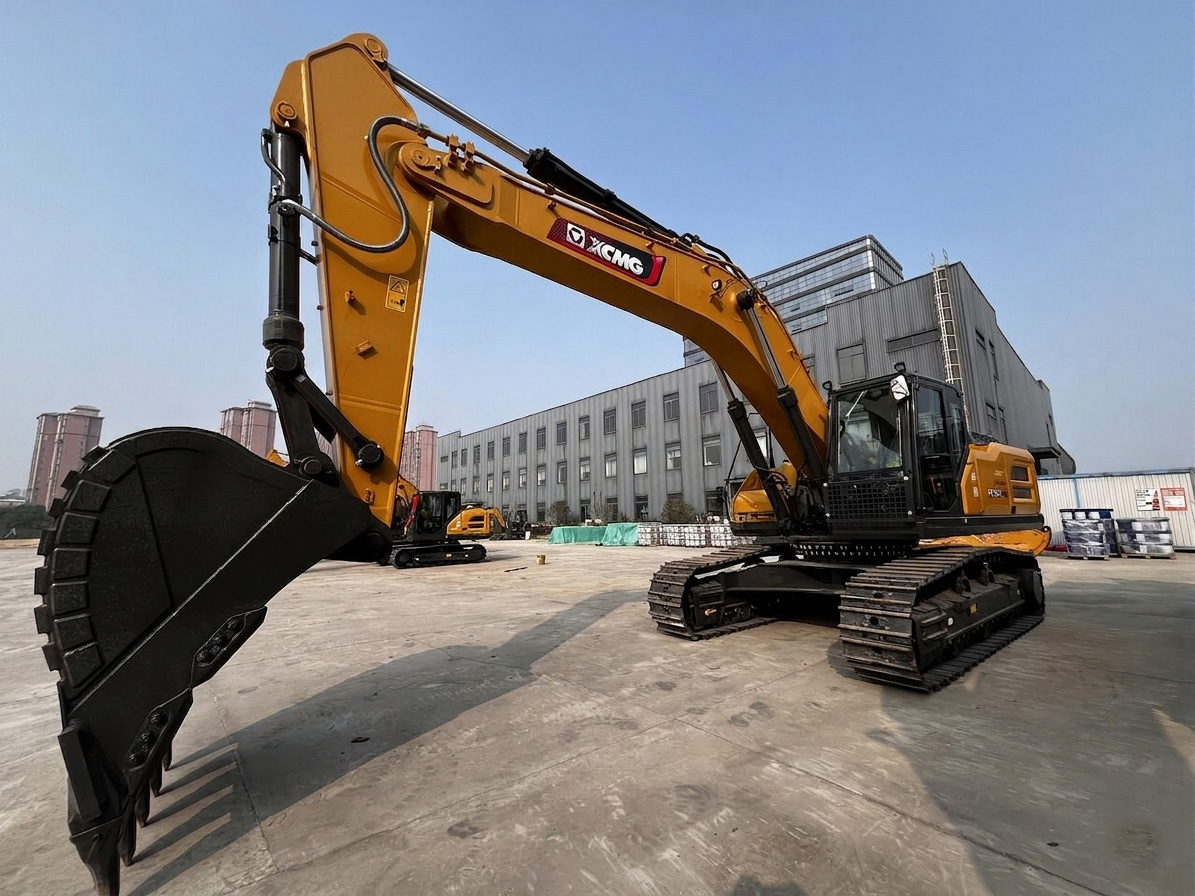

Reinforced 1.9 m³ Bucket Engineering
The high-capacity bucket utilizes specialized wear-resistant plates to handle abrasive materials easily. This design reduces bucket deformation during severe rock handling and deep trenching procedures.
Enhanced Excavation Forces for Demanding Earthmoving
Bucket digging force reaches up to 292 kN to penetrate compacted soils easily.
Arm digging force ranges from 208 kN to 213 kN for deep excavation stability.
The robust arm design mitigates stress concentration during high-impact operations.
Comprehensive Technical Specifications
| Specification Item | Technical Data |
|---|---|
| Operating Weight | 38,700 kg |
| Engine Model | Cummins L8.9 (6-cylinder, turbocharged) |
| Rated Power | 241 kW - 254 kW (approx. 323–340 hp) @ 1900 rpm |
| Bucket Capacity | 1.9 m³ (standard reinforced) |
| Max Digging Depth | 7,150 mm |
| Max Digging Reach | 10,968 mm - 10,970 mm |
| Bucket Digging Force | 285 kN - 292 kN |
| Arm Digging Force | 208 kN - 213 kN |
| Transport Length | 11,265 mm |
| Overall Width | 3,190 mm |
| Overall Height | 3,760 mm |
| Standard Track Shoe Width | 600 mm |
| Travel Speed (High/Low) | 3.3 / 5.6 km/h |
| Swing Speed | 9 rpm |
| Fuel Tank Capacity | 575 L |
| Hydraulic Oil Tank | 345 L |
Minimized Maintenance Costs and Enhanced Fleet Uptime

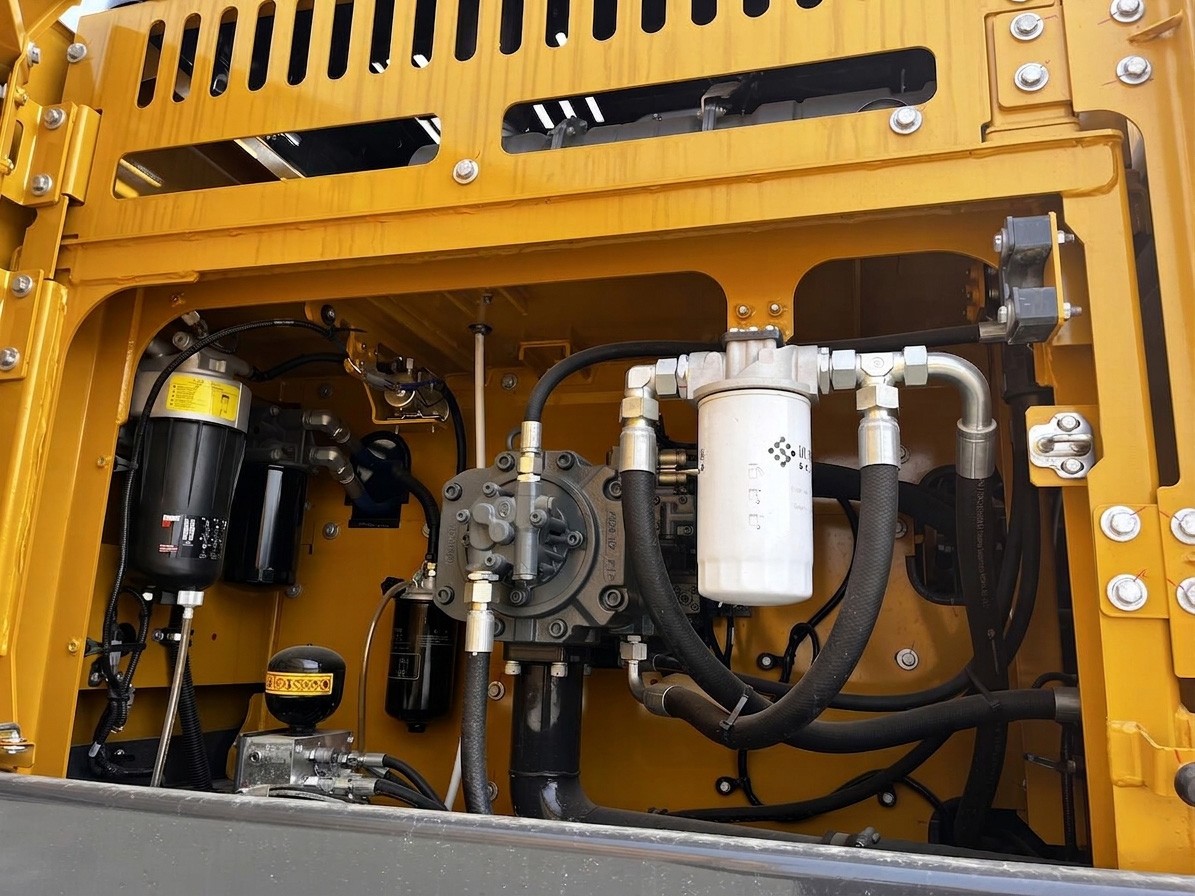

Our engineering focus guarantees that routine maintenance procedures remain simple and cost-efficient. Centralized lubrication ports and easily accessible filter arrangements decrease mechanical downtime significantly.
Extended hydraulic oil service intervals decrease long-term fluid replenishment costs.

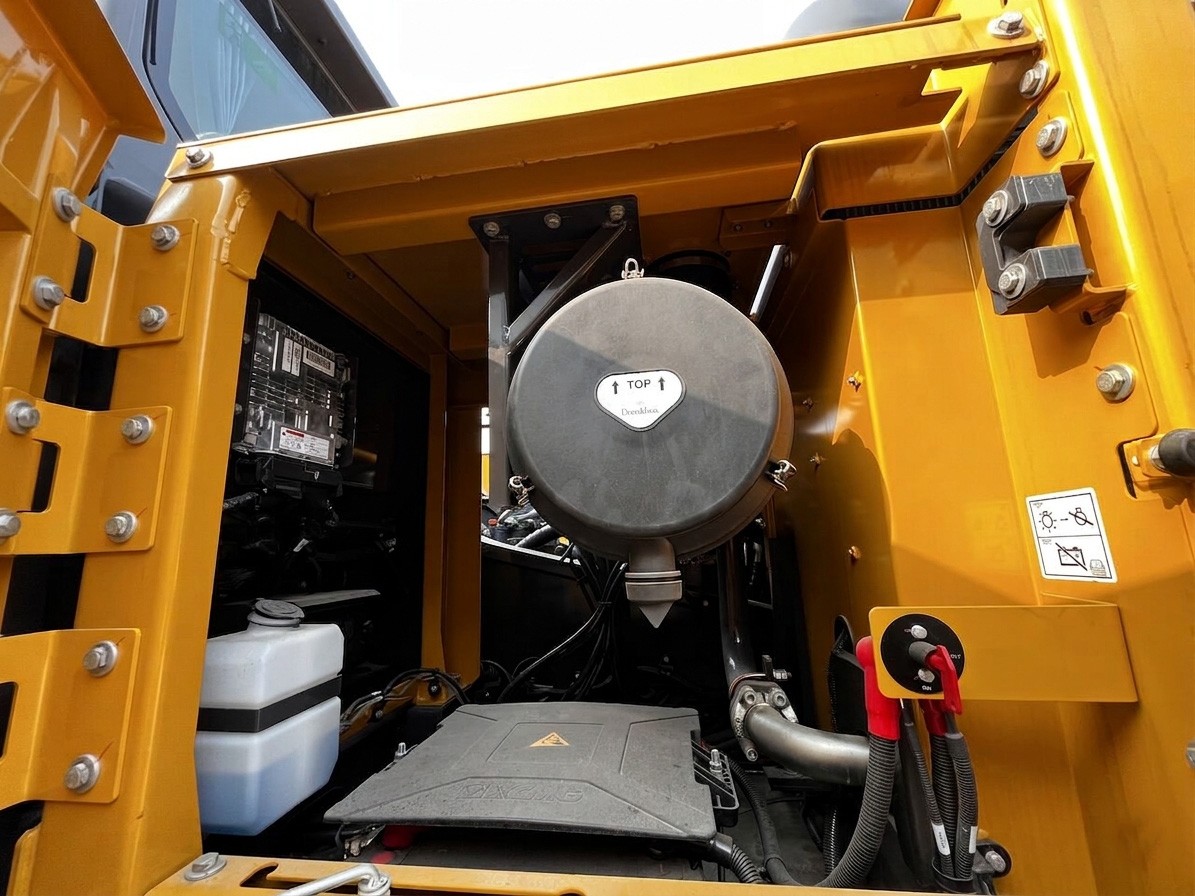

Ground-level access to vital filtration units allows swift mechanical checkups.
Robust cooling systems prevent thermal degradation during continuous heavy use.

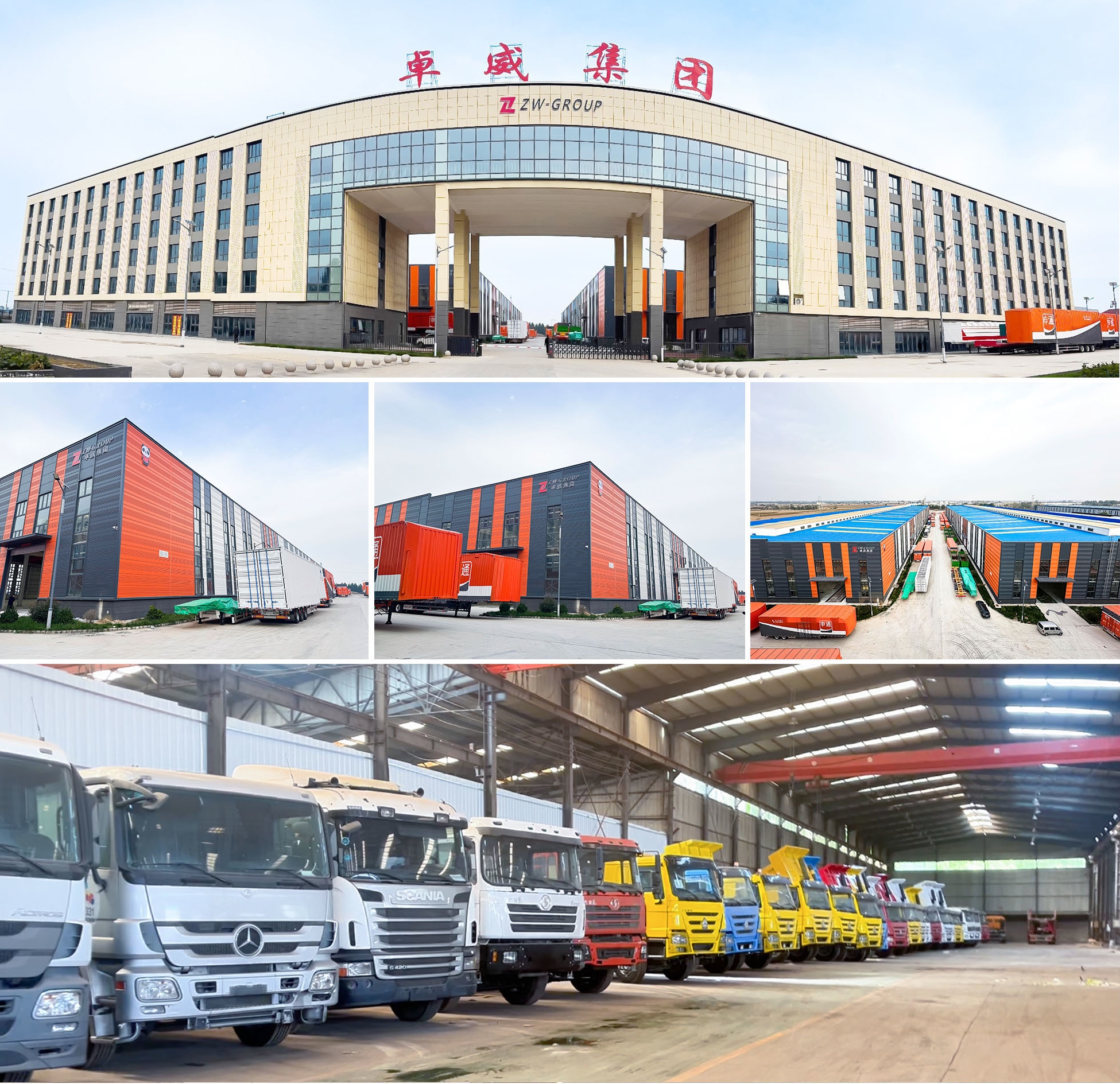

Reliable Heavy Machinery Export Solutions by ZW Group
ZW Group specializes in exporting premium heavy trucks and heavy duty construction equipment worldwide. With extensive trade experience and rigorous multi-stage quality inspections, we guarantee that every unit complies with strict global performance metrics.
Our specialized logistics infrastructure facilitates secure international shipping and custom clearance solutions. Contact our commercial procurement team today to acquire comprehensive quotations and fleet deployment schedules.
Get an Instant B2B Quote: Contact ZW Group Procurement Experts
