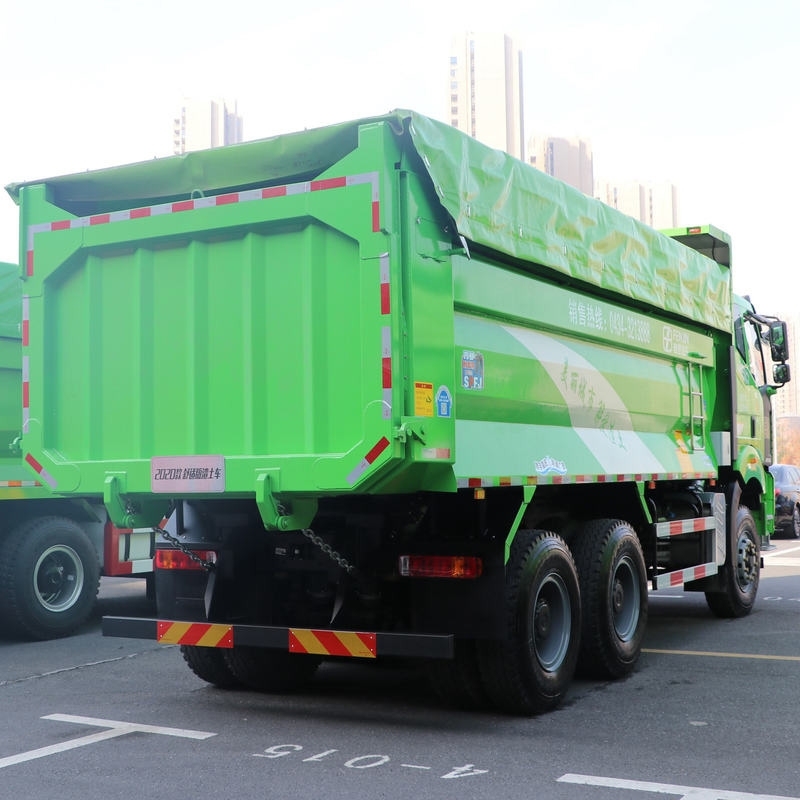

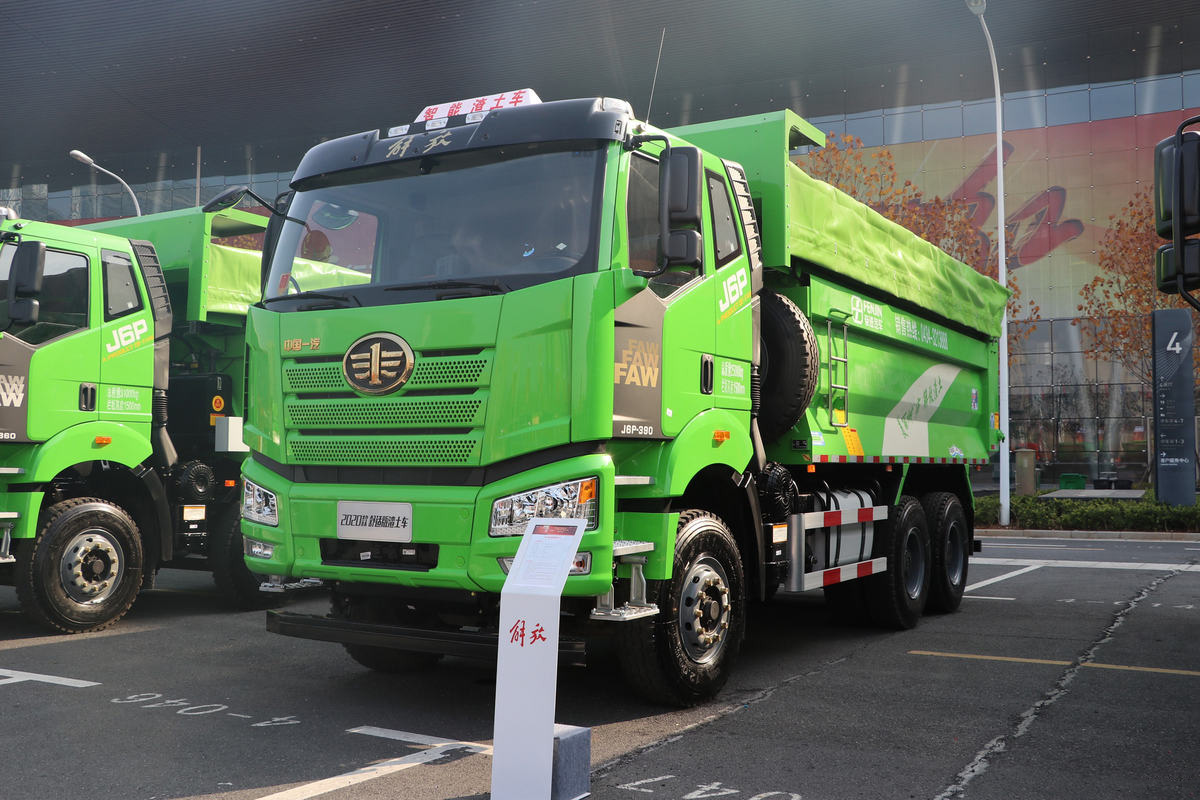

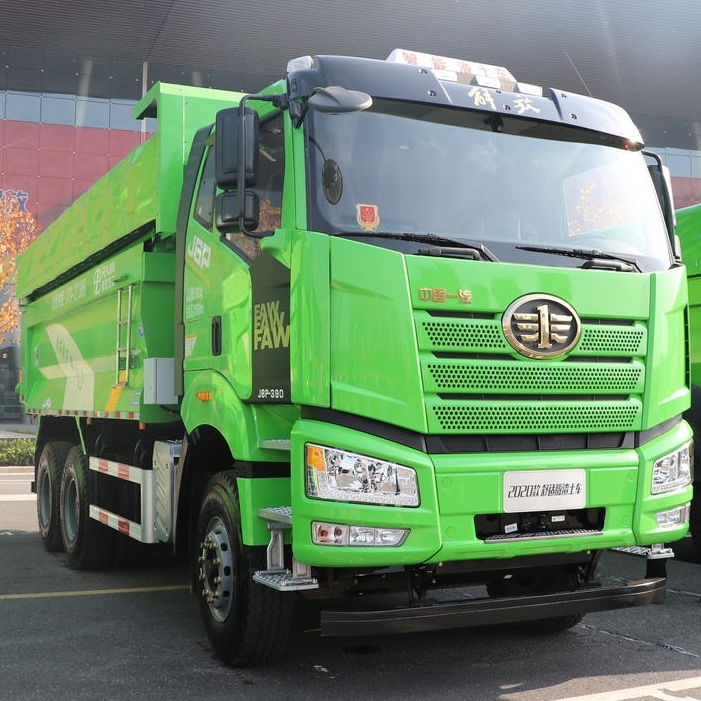

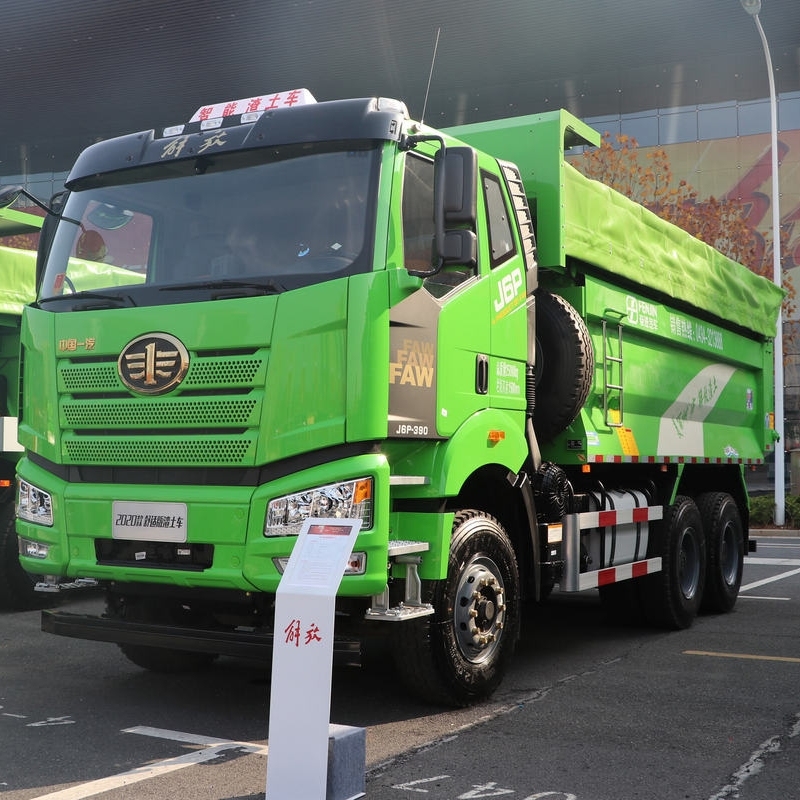

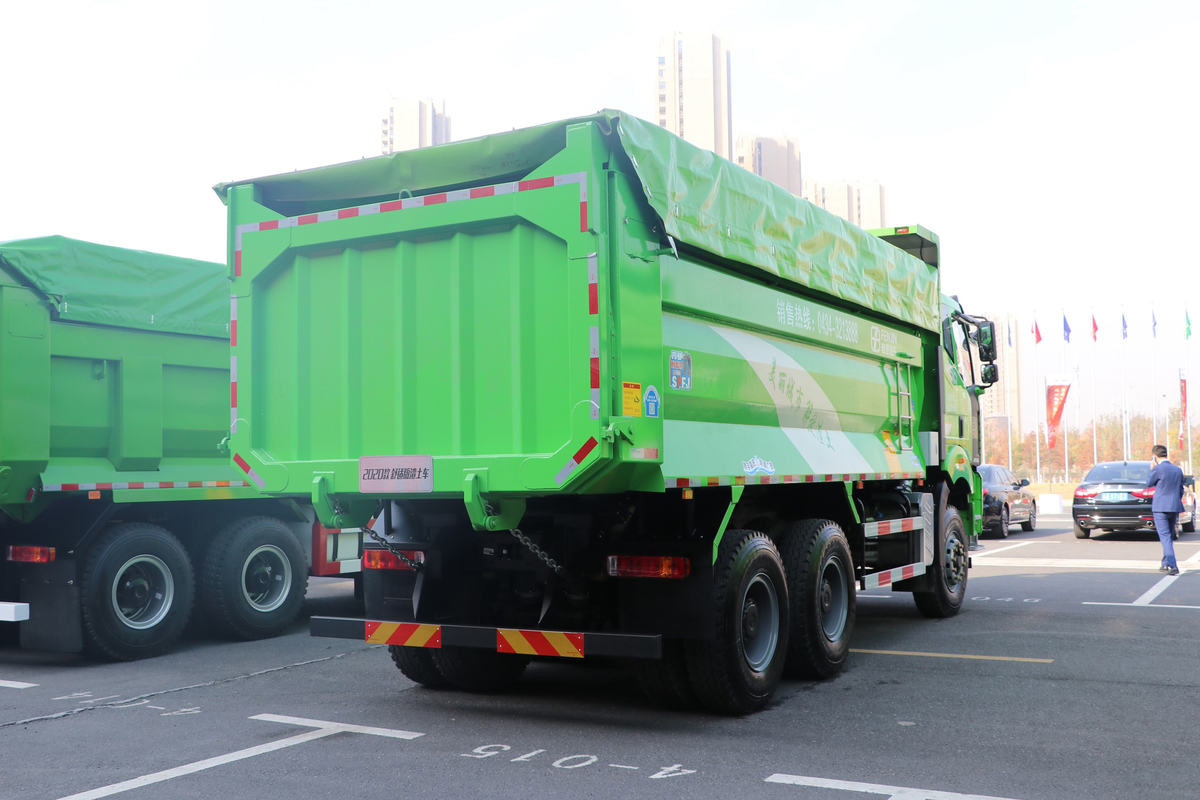

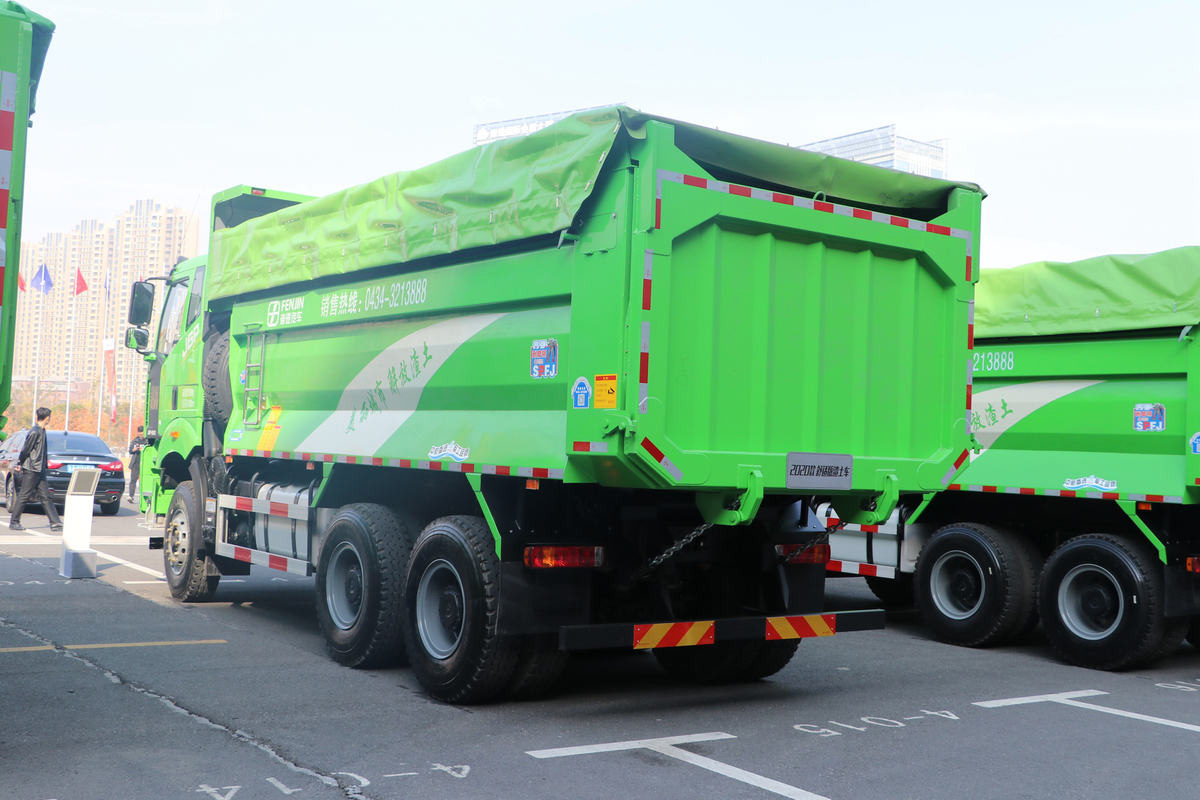

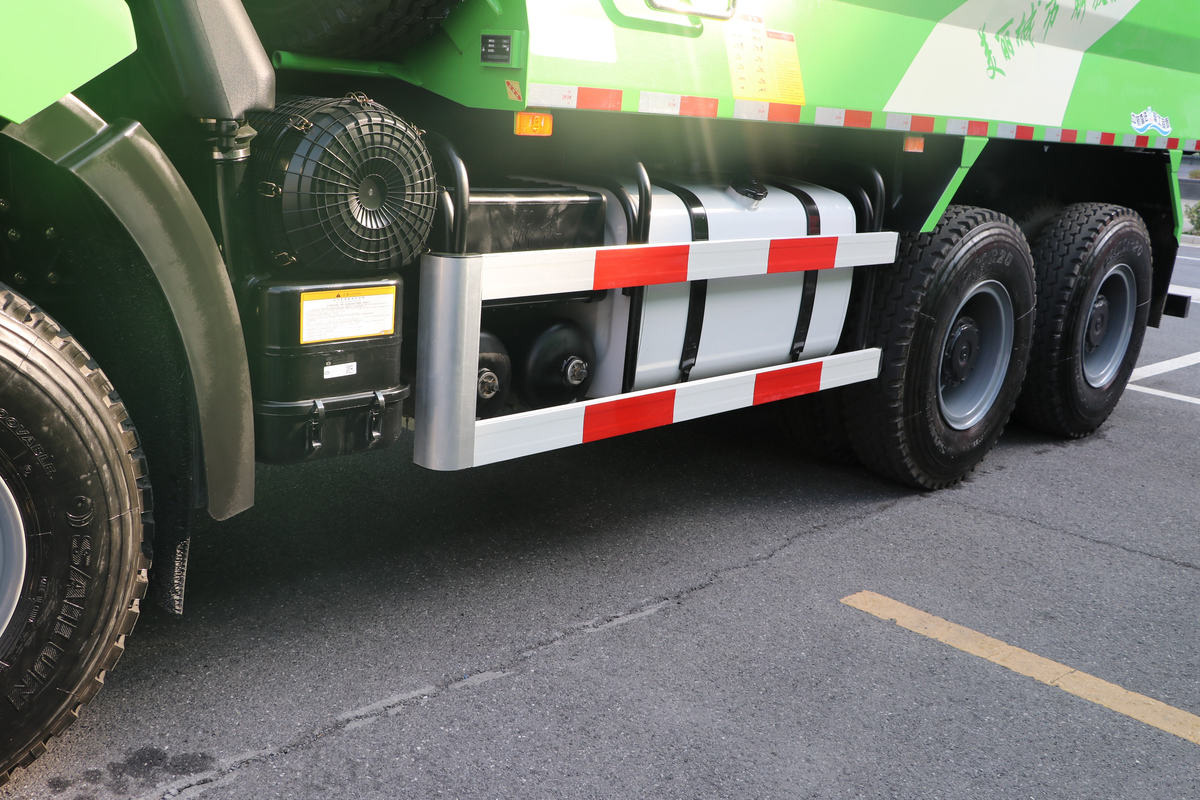

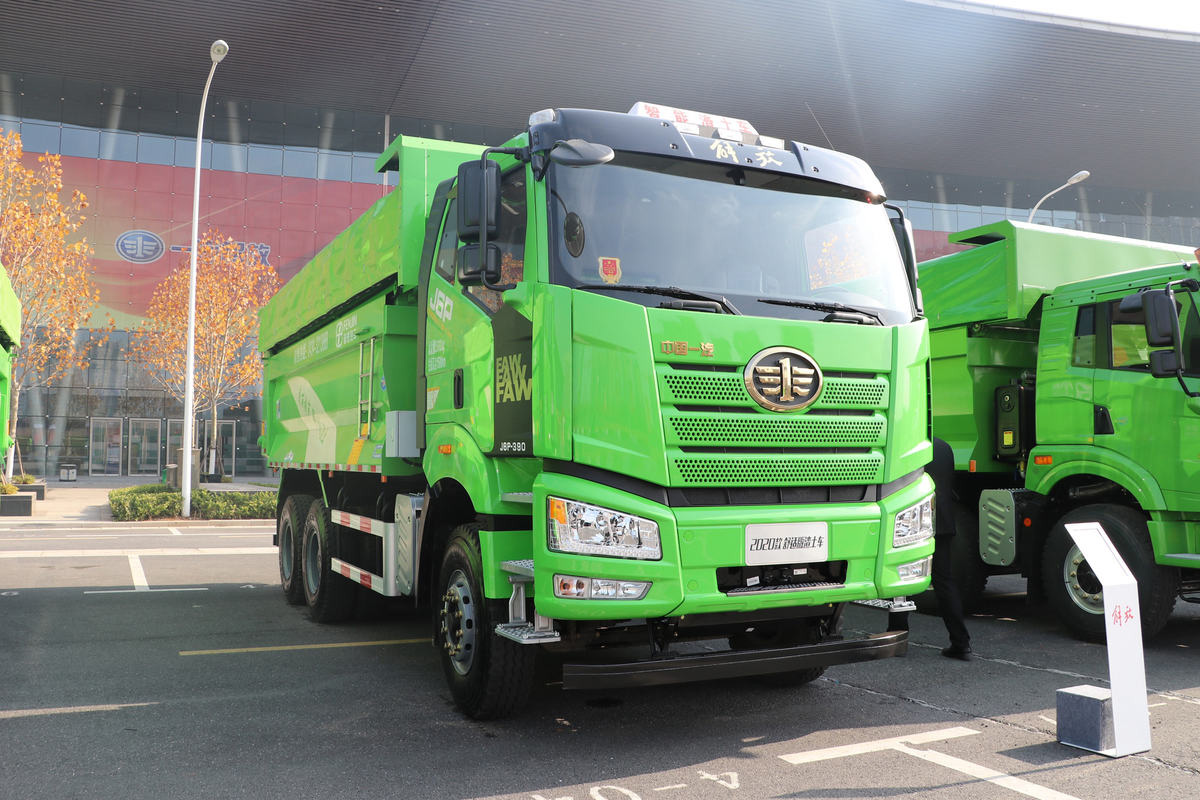

FAW J6P 6x4 390HP Dump Truck
FAW’s long-standing reputation in the commercial vehicle sector ensures that the Faw 390hp 6x4 Dump Truck provides stable performance on varied terrain. Buyers can also choose other power ratings and even an 8×4 configuration when larger loading capacity is required. Each configuration keeps the emphasis on durability, simple maintenance, and reliable daily use.
- FAW
- China
- 15-20 days
- 100 units per month
- Information
Faw 390hp 6x4 Dump Truck — Robust FAW Tipper for Reliable Hauling
The Faw 390hp 6x4 Dump Truck offers a dependable balance of power, structure, and economy. Built on FAW’s proven platform, this tipper pairs a stout 390hp engine with a 6x4 driveline that supports stable traction and steady payload handling. It is suitable for regional haul, construction aggregates, and other bulk material tasks where dependable performance matters.
Key Advantages
Trusted FAW Engineering
FAW has a long record of producing reliable heavy trucks. This model benefits from that legacy through solid frame design and proven drivetrain components. Those traits translate to predictable performance across a range of road surfaces.
Balanced Power and Efficiency
The 390hp rating provides a strong torque band while keeping fuel use sensible for its class. Customers may opt for different horsepower levels if they prefer higher torque or slightly different fuel profiles. Both options keep the same reliable chassis design.
6×4 Platform with Optional 8×4
The 6×4 layout focuses on traction and maneuverability in varying conditions. An 8×4 configuration is available for projects needing higher payload volume without significant changes to the base vehicle design.
Technical Specifications
The table below lists the supplied specifications for the standard configuration of the Faw 390hp 6x4 Dump Truck.
| English Translation | Description |
|---|---|
| Drive Type | 6X4 |
| Wheelbase | 3800 + 1350 mm |
| Engine | Xichai CA6DM2-39E52 |
| Transmission | FAW CA12TAX190M |
| Rear Axle Ratio | 5.921 |
| Vehicle Length | 8.54 meters |
| Vehicle Width | 2.55 meters |
| Vehicle Height | 3.68 meters |
| Front Track | 2020 mm |
| Rear Track | 1847 / 1847 mm |
| Curb Weight | 12.11 tons |
| Rated Load | 12.695 tons |
| Total Mass (GVW) | 25 tons |
| Approach Angle | 24 degrees |
| Departure Angle | 22 degrees |
Design Highlights and Build Quality
Reinforced Frame
The frame is designed to handle continuous heavy loads. Reinforcement at key stress points keeps the chassis durable over extended duty cycles.

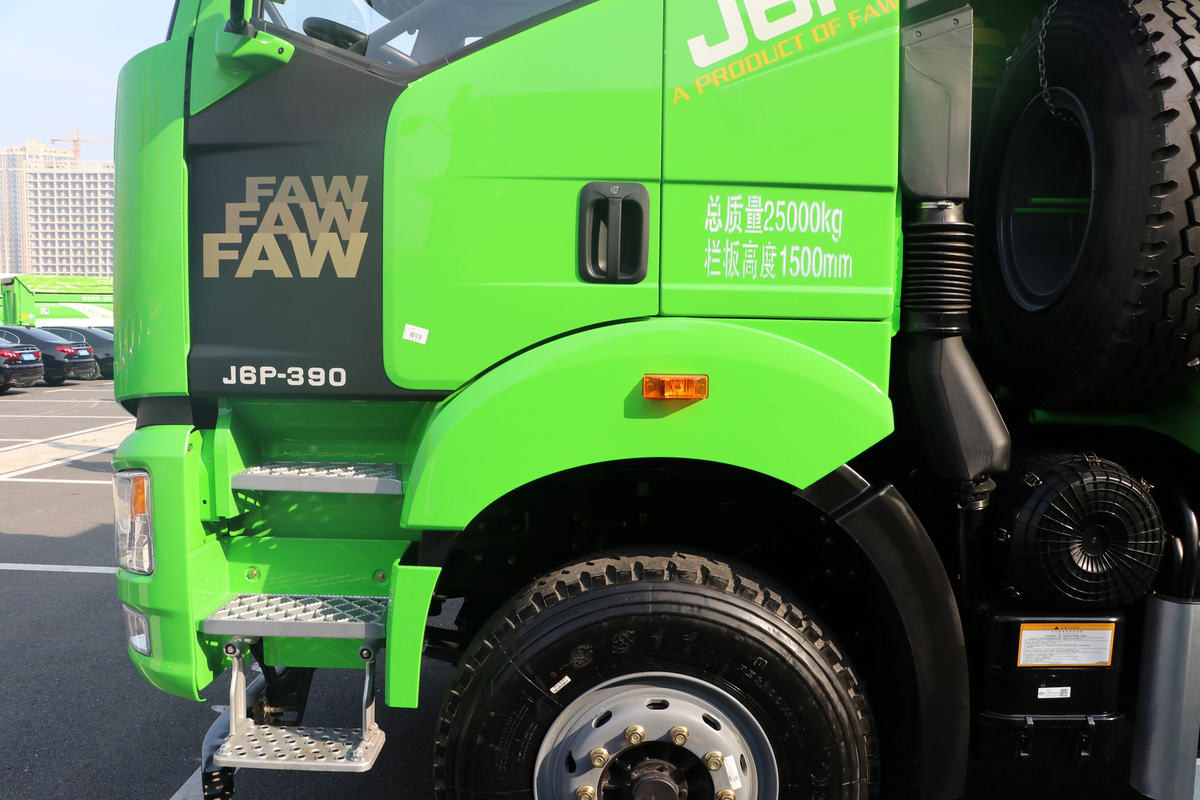

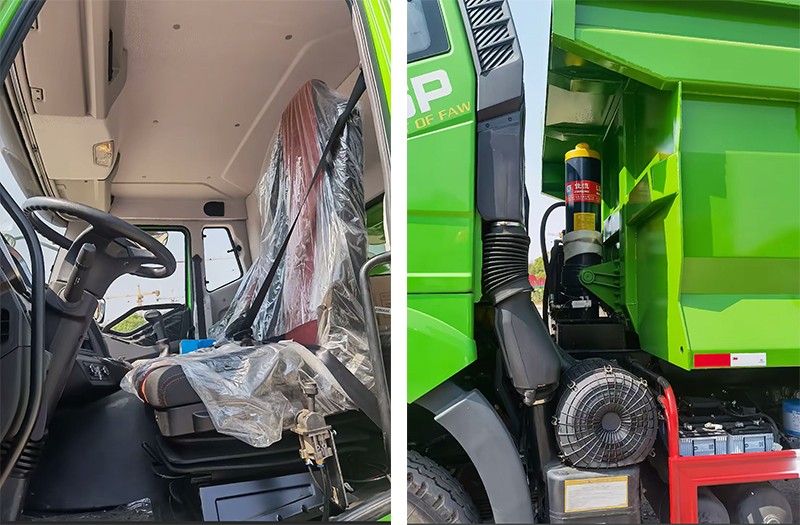

Driver-Focused Cabin
The cabin provides clear sightlines and user-friendly controls. Comfort features reduce fatigue over longer trips, while simple ergonomics let drivers maintain focus.
Suspension and Braking
Suspension tuning balances load support and ride comfort. Brakes are matched to the vehicle’s rated mass to ensure controlled deceleration in typical transport conditions.
Configurations and Custom Options
Body Variations
Dump bodies can be tailored in size and steel grade to suit the material being hauled. Hydraulic systems and tailgate choices are available to match unloading needs.
Power and Transmission Choices
While 390hp is the standard option shown here, alternative power levels are offered. FAW transmissions and axle ratios can be selected to suit long-distance runs or frequent stop-start routes.
6×4 vs 8×4
Choose the 6×4 for compact stability and easier maneuvering. Choose the 8×4 when higher payload or larger body volume is needed.
Applications and Use Cases
Typical uses for the Faw 390hp 6x4 Dump Truck include aggregate transport, construction site deliveries, and regional haul where a durable tipper is required. Its specification makes it adaptable to mixed road conditions and daily heavy use.
About ZW Group
ZW Group supplies a broad range of heavy trucks and construction machines. Our portfolio includes FAW tipper models like the Faw 390hp 6x4 Dump Truck and other FAW variants. We also market a wide selection of Shacman models, including Shacman dump trucks and fuel tank trucks, tailored to different haul needs. For tractor heads, we offer Howo series units across various power ratings. This range allows customers to pick the best platform for their fleet plans.
Contact & Next Steps
To request a tailored quotation, shipping plan, or full specification sheet for the Faw 390hp 6x4 Dump Truck, please contact ZW Group. Visit our website to view current stock and available options, or submit an inquiry for precise configuration support.
